Product Recognition
Certification Number	ZC10-15100020

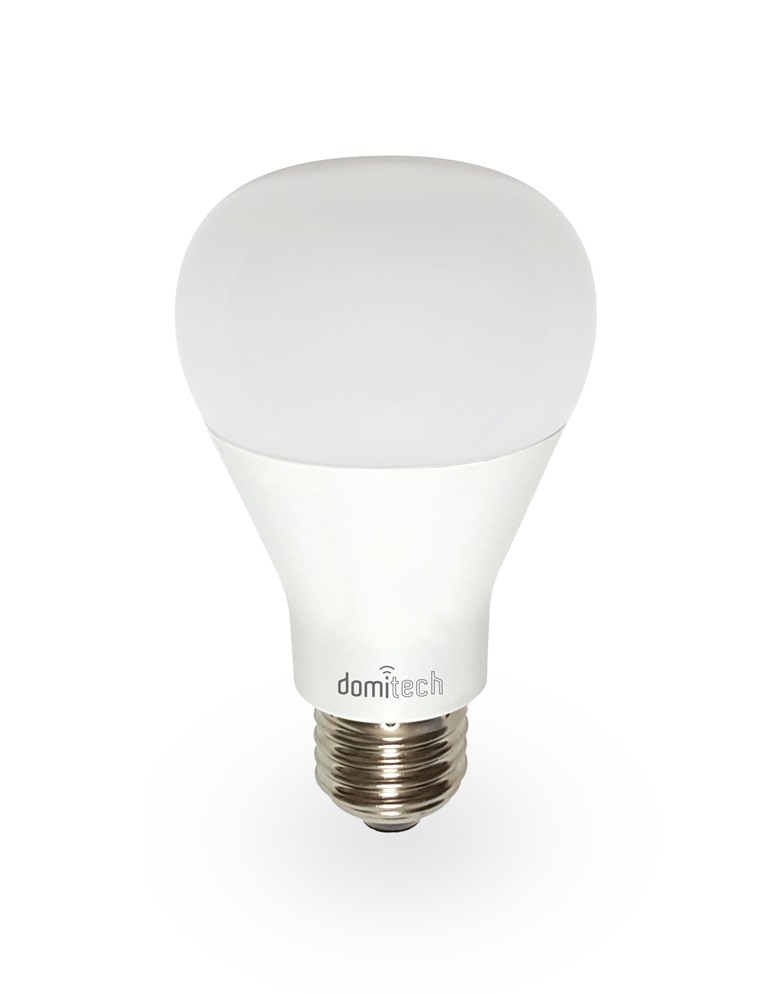

Name	Smart LED Light Bulb
Short Description	Smart LED light bulb with Z-Wave radio. Fully dimmable, 60W equivalent, consumes 9W of power, A19 screw in bulb with frosted soft light
Long Description	Smart LED light bulb with Z-Wave radio. - Control lights remotely and save energy - Compatible with smart home systems supporting Z-Wave - 60 Watt equivalent light (806 lumens) - Consumes only 9 watts of power - 2700K Day light with frosted glass - Instant ON and fully dimmable - Functions as a Z-Wave signal repeater - Very simple to include in your network - Z-Wave Plus certified
Brand	Domitech Products, LLC
Product Identifier	ZB22UK
OEM Version	HW: 255
Hardware Platform	ZM5202
Z-Wave Version	6.51.06
Library Type	SLAVE_ENHANCED_232
Device Type	Light Dimmer Switch
Role Type	ROLE_TYPE_SLAVE_ALWAYS_ON
Manufacturer ID	0x020E
Product Type ID	0x4C42
Product ID	0x3135
Frequency Plans	EU: 869.85MHz, 868.40MHz
Categories	All Lighting Devices, Dimming Lighting Devices
Countries / Regions	European Union
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual Instructions_ZB22UK_10222015 small.pdf
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 5 0 ZB22UK supports Group 1 with up to five devices for lifeline communication. Group 1 must be assigned the Node ID of the controller to which unsolicited notifications will be sent. The Z-Wave controller should set this association automatically after inclusion. Lifeline association only supports the “manual reset” event. Please refer to the instructions manual of your remote controller or gateway for detail procedures on how these function can be set.
Configuration Parameters	Parameter Number Name Description Format Size Min Value Max Value Default Value Parameter Values 1 Dim level when the light bulb is turned On You may select the Dim level whenever the light is turned back ON to be either full brightness (100% dim level) or be the same as the last dim setting when the light was previously ON. 0 1 0 0 0 From To Description 1 1 The brightness level will maintain same dim level as the last setting when the dt Smart Bulb is turned ON again. 0 0 The brightness level will be resume to full brightness when the dt Smart Bulb is turned ON every time. 9 Dimming/Brightening Step Level You may change the dimming step level when you adjust the brightness by your controller/gateway. 0 1 0 0 1 From To Description 1 99 A low value provides gradual dimming and brightening, a high values makes it change rapidly. 10 Dimming/Brightening Step Timing You may change the dimming speed quicker or slower by changing Parameter 10's value. 0 1 0 0 3 From To Description 1 10 When the value is low, the step timing is quick. When the value is high, the step timing is slow.
Texts	ID Description Value 1 Inclusion 1. Turn Off power to the light bulb socket 2. Screw in the light bulb 3. Place your network controller into inclusion mode by following the controller manufacturer's instructions 4. Turn On power to the light bulb. If successful, the LED light bulb will flash twice to indicate successful inclusion. 5. If the controller/gateway shows it was a fail, repeat the procedure. Note: If Inclusion still fails after the 2nd attempt, you need to first RESET the dt Smart Bulb before repeating the above steps. 2 Exclusion 1. Turn off power to the light bulb socket 2. Follow the network controller instruction to place your network controller into exclusion mode to remove the dt light bulb from the network. 3. After being prompted by the network controller, turn On power to the light bulb. If successful, the LED light bulb will flash twice to indicate successful inclusion. 5 Factory Reset You may manually reset the light bulb as follows: 1. Flick the wall switch “OFF-ON” 4 times within 4 seconds. 2. The dt Smart Bulb will flash twice after Reset is successful. Use this procedure only in the event that the network primary controller is lost or otherwise inoperable.
Supports NWI	Yes
Supports Explorer Frames	Yes
