Product Recognition
Certification Number	ZC10-16105275

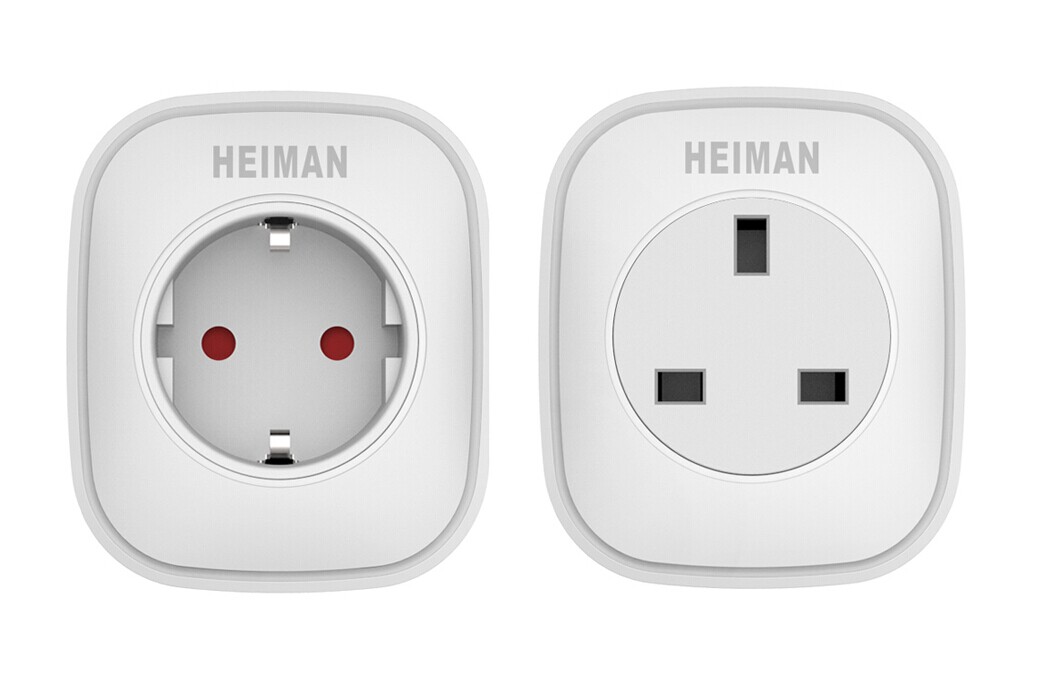

Name	Smart Metering Plug
Short Description	The smart metering plug controls devices remotely and records the power consumption of electronic devices.
Long Description	The smart metering plug controls devices remotely and records the power consumption of electronic devices. It is very convenient to use, for example, people can use the APP to switch on their coffee maker and air conditioner before they come back home by using the smart metering plug, they can also switch off lights, TV set and other electronic devices in house by just clicking one button in the APP when they want to go sleep. The smart metering plug makes people's life more comfortable.
Brand	HEIMAN
Product Identifier	HS2SK-Z
OEM Version	HW: 255 FW: 1.01
Hardware Platform	ZM5202
Z-Wave Version	6.51.08
Library Type	SLAVE_ROUTING
Device Type	On/Off Power Switch
Role Type	ROLE_TYPE_SLAVE_ALWAYS_ON
Manufacturer ID	0x0260
Product Type ID	0x8006
Product ID	0x1000
User Icon	0x0700
Installer Icon	0x0700
Frequency Plans	EU: 869.85MHz, 868.40MHz
Categories	Energy Meters, All Lighting Devices, On/Off Switches/Devices
Countries / Regions	European Union
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual HS2SK-Z documentation.doc
Features	Feature Values Color Value White Communications Connections Value Ethernet (Wireless/WiFi) Communications Protocol Value Z-Wave Serial API Electric Load Type Firmware Updatable Value Not Updatable IP (Ingress Protection) Rated Switch Load Capacity Current Value 13A Switch Load Capacity Volt-Ampere Value 230V Switch Load Capacity Watts Value 3000W Outdoor Use
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 1 0 Association group 1: Lifeline association group Include command classes: Switch Binary report, Meter Report and Device Reset Locally notification.
Texts	ID Description Value 1 Inclusion - Click [Add] icon in Z-Wave PC Controller Program. - Press the SW_Button 3 times within 1.5s, Green LED is Blinking 3 times within 1 second. - If Inclusion Process is successful, Green LED will turn off. 2 Exclusion - Click [Remove] icon in Z-Wave PC Controller Program - Press the SW_Button 3 times within 1.5s - If Exclusion Process is successful, Green LED is Blinking 6 times, then turn off. 5 Factory Reset -Long press SW_Button at least 10 seconds in HS2SK-Z. - Device Reset Locally notification is Transmitted. -Please use this procedure only when the network primary controller is  missing or otherwise inoperable.
Supports NWI	Yes
Supports Explorer Frames	Yes
