Product Recognition | |
|---|
Certification Number | ZC10-15120005 |
|---|

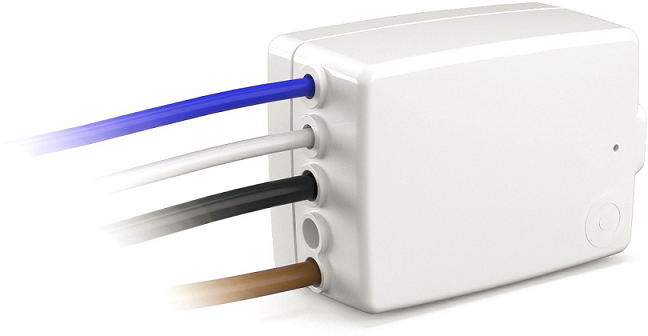

Name | Smart Mini Plug |
|---|
Short Description | flush-mount 16A switching actuator with metering and overload & overtemperature safety switch-off |
|---|
Long Description | The wireless flush-mount switching actuator PSC132ZW allows you to remotely control electrical appliances. It features a metering function to measure the power consumption and the accumulated energy usage of connected equipment. The built-in metering unit is of high quality: it calculates the true-power and also works for small loads from 1W upwards. This feature is important to have a correct measurement value also for electronic loads like led lamps.
The PSC132ZW has a built-in safety features that will switch-off the output in case of too high temperature or overload.
Additionally the PSC132 has a feature to switch the load on at zero voltage and switch the load off at zero current. This leads to a very high number of possible switching cycles also for difficult loads like led-lamps or motors, e.g. pumps. |
|---|
Brand | permundo |
|---|
Product Identifier | PSC132ZW |
|---|
OEM Version | HW: 255 |
|---|
Hardware Platform | ZM5101 |
|---|
Z-Wave Version | 6.51.06 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | On/Off Power Switch |
|---|
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
|---|
Manufacturer ID | 0x0245 |
|---|
Product Type ID | 0x0003 |
|---|
Product ID | 0x0002 |
|---|
Frequency Plans | EU: 869.85MHz, 868.40MHz |
|---|
Categories | Energy Meters, All Lighting Devices, On/Off Switches/Devices |
|---|
Countries / Regions | European Union |
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
1 | 5 | 0 | Group1 Z-Wave Plus Lifeline
Events/Notifications:
(1)
Sends COMMAND_CLASS_BASIC, BASIC_REPORT after every change of the output state (on/off).
(2)
Sends COMMAND_CLASS_METER_V2, METER_REPORT_V2 after every change of the measured energy or power value or after a timeout if the values stay unchanged. during If the energy or power value didn‘t change for a certain time.
Min. time between 2 reports if the energy or power value changes: 1s
Timeout for sending a report if the value stays unchanged: 15min.
Min. change in value to trigger a report:
4% power (mind. 2W) oder 1Wh energy
| 2 | 5 | 0 | Events/Notifications:
Sends COMMAND_CLASS_BASIC, BASIC_REPORT every time the mechanical switch at the input S1 is operated.
|
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
31 | Local Control Off | If „LocalControlOn“ is set (factory default state) the PSC132ZWs output can be switched manually by a mechanical rocker-switch or a pushbutton that is connected to the S1 input of the device. If „LocalControlOff“ is set, the PSC132ZWs output can only be switched through Z-wave telegrams. In both modes the operational state of the mechanical switch is reported to association group 2. LocalControlOff is ment for using the switch-input functionality and the relay functionality separately. | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
1 | 1 | Local Control Off | 0 | 0 | Local Control On |
|
|
|---|
Texts | ID | Description | Value |
|---|
1 | Inclusion | When a PS132ZW that is not associated to a Z-Wave network is inserted into the mains outlet, it will flash once red followed by 2 green flashes followed by steady red flashing. The PSC132ZW can now be added to (=inclusion) or removed from (=exclusion) a Z-Wave network:
1) start inclusion/exclusion on the primary
controller
2) hold the touch button until the led
shows green light
3) release the touch button
The PSC234 will confirm successful addition to the network by 5 green flashes. | 2 | Exclusion | When a PS132ZW that is not associated to a Z-Wave network is inserted into the mains outlet, it will flash once red followed by 2 green flashes followed by steady red flashing. The PSC132ZW can now be added to (=inclusion) or removed from (=exclusion) a Z-Wave network:
1) start inclusion/exclusion on the primary
controller
2) hold the touch button until the led
shows green light
3) release the touch button
The PSC234 will confirm successful removal/exclusion by steady red flashing. At the time of exclusion the device is factory reset. | 5 | Factory Reset | Please use this procedure only if the primary controller is missing or inoperable:
The device can be put into factory default state manually by the following procedure:
1) hold the touch-button until the led
shows red light
2) release the touch-button and hold the
touch-button again until the led starts
to flash green
The PSC132ZW confirms the successful completion of the factory reset procedure by steady red flashing. |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
