Product Recognition | |
|---|
Certification Number | ZC10-18106273 |
|---|

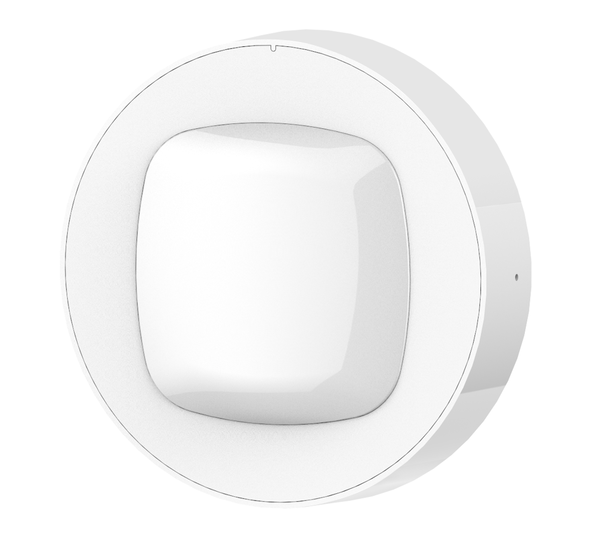

Name | Smart Motion Sensor |
|---|
Short Description | When the gateway is in the armed state, once the motion sensor detects the movement of a person, it will send alarm signals to gateway, and the gateway will send the alarm signal to mobile phone App immediately. |
|---|
Long Description | When the gateway is in the armed state, once the motion sensor detects the movement of a person, it will send alarm signals to gateway, and the gateway will send the alarm signal to mobile phone App immediately. |
|---|
Brand | HEIMAN |
|---|
Product Identifier | HS3MS-Z |
|---|
OEM Version | HW: 255 FW: 3.01 |
|---|
Hardware Platform | ZM5202 |
|---|
Z-Wave Version | 6.71.03 |
|---|
Library Type | SLAVE_ROUTING |
|---|
Device Type | Notification Sensor |
|---|
Role Type | ROLE_TYPE_SLAVE_SLEEPING_REPORTING |
|---|
Manufacturer ID | 0x0260 |
|---|
Product Type ID | 0x8001 |
|---|
Product ID | 0x1001 |
|---|
User Icon | 0x0C07 |
|---|
Installer Icon | 0x0C07 |
|---|
Frequency Plans | EU: 869.85MHz, 868.40MHz |
|---|
Categories | Infrared Devices, Security Add-Ons |
|---|
Countries / Regions | European Union |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 | Multi-Channel Association V3 | 0x8E | 3 | COMMAND_CLASS_BATTERY | Battery | 0x80 | 1 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_WAKE_UP_V2 | Wake Up V2 | 0x84 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_NOTIFICATION_V8 | Notification V8 | 0x71 | 8 | COMMAND_CLASS_SECURITY_2 | Security S2 | 0x9F | 1 | COMMAND_CLASS_VERSION_V3 | Version V3 | 0x86 | 3 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
Controlled Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_BASIC_V2 | Basic V2 | 0x20 | 2 |
|
|---|
S2 Classes | S2_UNAUTHENTICATED |
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Features | Feature | Values |
|---|
Supported Notification Types | Value |
|---|
Access Control | Home Security | Emergency Alarm |
| Color | | Battery Type | | Communications Protocol | | Battery Quantity | | Sensors | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
1 | 5 | 0 | Lifeline association group | 2 | 5 | 0 | Root device group |
|
|---|
Texts | ID | Description | Value |
|---|
1 | Inclusion | - Click [Add] icon in Z-Wave Controller .
- Press the Func_Button 3 times within 1.5s, Green LED is Blinking 4 times within 1 second.
- If Inclusion Process is successful, Green led will turn off. | 2 | Exclusion | - Click [Remove] icon in Z-Wave Controller
- Press the Func_Button 3 times within 1.5s
- If Exclusion Process is successful, Green led is Blinking 6 times, then turn off. | 4 | Device Wake-Up | - Wake up Notification is transmitted every 300s by default.
- Wake up Notification is transmitted after Notification Report is Transmitted | 5 | Factory Reset | Long press Func_Button while installing batteries in the Device
-Device Reset Locally notification is Transmitted
-Green LED Turns off after 2 seconds.
Please use this procedure only when the network primary controller is missing or otherwise inoperable. |
|
|---|
Supported Notification Types | Notification Type | Event / State |
|---|
Access Control | (Refer to parameters): State idle | Home Security | (Refer to parameters): State idle | Emergency Alarm | (Refer to parameters): State idle |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
