| Product Recognition | |
|---|
| Certification Number | ZC10-16055092 |
|---|

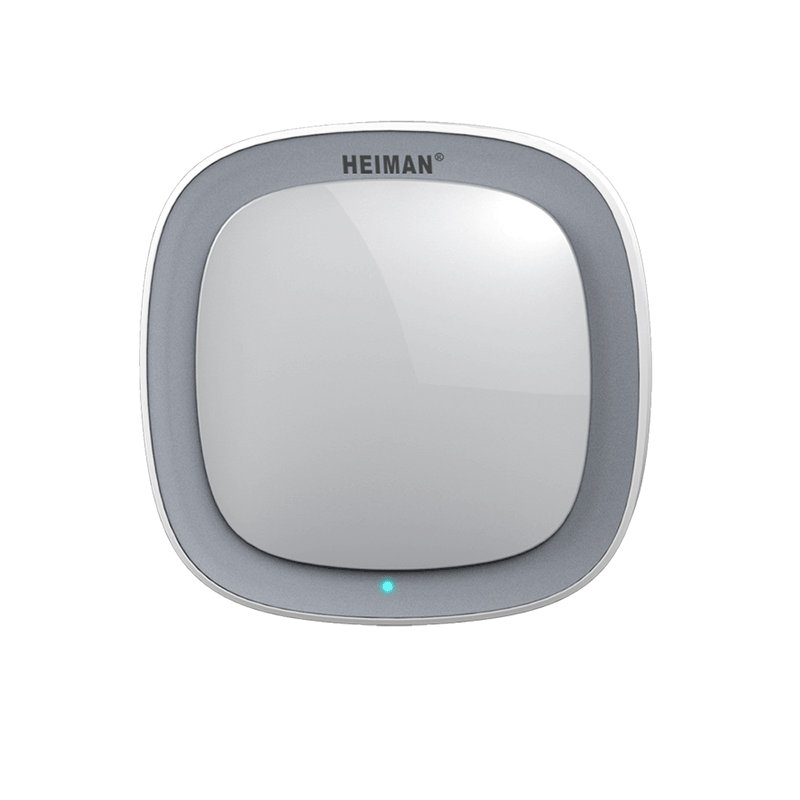

| Name | Smart Motion Sensor |
|---|
| Short Description | The motion sensor is designed to protect people's homes from intrusions. It can detect the slightest motion when someone passes by the motion sensor and send an alarm signal to alert the homeowner. |
|---|
| Long Description | The smart motion sensor is designed to detect motion indoors. When the smart motion sensor detects people or animals moving, it will report the information to the users mobile phone immediately. it is very easy to install, users should only paste the smart motion sensor on the wall, download the application and then connect the smart motion sensor to a smartphone via WiFi. Users will know the situation of their houses remotely. The battery life is more than 1 year and the battery is also replaceable. |
|---|
| Brand | HEIMAN |
|---|
| Product Identifier | HS1MS-Z |
|---|
| OEM Version | HW: 255 FW: 1.25 |
|---|
| Hardware Platform | ZM5202 |
|---|
| Z-Wave Version | 6.51.06 |
|---|
| Library Type | SLAVE_ROUTING |
|---|
| Device Type | Notification Sensor |
|---|
| Role Type | ROLE_TYPE_SLAVE_SLEEPING_REPORTING |
|---|
| Manufacturer ID | 0x0260 |
|---|
| Product Type ID | 0x8001 |
|---|
| Product ID | 0x1000 |
|---|
| User Icon | 0C07 |
|---|
| Installer Icon | 0C07 |
|---|
| Frequency Plans | EU: 869.85MHz, 868.40MHz |
|---|
| Categories | Sensors |
|---|
| Countries / Regions | European Union |
|---|
| Documents | | Category | Description | File |
|---|
| Manual_Primary_Lang | Product or Owner's Manual | HSIMS-Z.pdf |
|
|---|
| Features | | Feature | Values |
|---|
| Battery Type | | | Color | | | Firmware Updatable | | | Outdoor Use | | | Sensors | | Value |
|---|
| Motion/No Motion (Binary) |
| | Battery Quantity | |
|
|---|
| Association Groups | | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
| 1 | 5 | 0 | Root Device group(Notification)
1-Report status of people passing by, no people passing by, tamper alarm and tamper recovery through lifeline.
2- When the Device detects new event of people passing by or no people passing by, tamper alarm and tamper recovery, the device will be triggered. | | 2 | 5 | 0 | Lifeline association group
Include command classe: Battery report, Notification report, and Device Reset Locally notification, Binary report. | | 3 | 5 | 0 | Root Device group(Binary Sensor)
Binary Sensor Command Class:Compatible with 300 series.
1-Report status of people passing by, no people passing by, tamper alarm and tamper recovery via lifeline.
2- When the Device detects new event of people passing by or no people passing by, tamper alarm and tamper recovery, the device will be triggered. |
|
|---|
| Texts | | ID | Description | Value |
|---|
| 1 | Inclusion | - Click [Add] icon in Z-Wave PC Controller Program
- Press a Func_Button 3 time in HS1MS-Z (Motion Sensor), Green LED is Blinking 3 times within 1 second.
- If Inclusion Process is successful, Green LED will turn off. | | 2 | Exclusion | - Click [Remove] icon in Z-Wave PC Controller Program
- Press a Func_Button 3 times quickly in HS1MS-Z
- If Exclusion Process is successful, Green LED is Blinking 6 times, then turn off in HS1MS-Z | | 5 | Factory Reset | Long press Func_Button while installing batteries in HS1MS-Z
- Device Reset Locally notification is Transmitted
- Please use the reset procedure only when the primary controller is missing or inoperable | | 4 | Device Wake-Up | - Wake up Notification is transmitted every 24 hours by default.
- Wake up Notification is transmitted after Notification Report is Transmitted |
|
|---|
| Supported Multilevel Sensors | | Multilevel Sensor Type |
|---|
| 0x02 |
|
|---|
| Supports NWI | Yes |
|---|
| Supports Explorer Frames | Yes |
|---|
