Product Recognition | |
|---|---|
Certification Number | ZC10-18076185 |

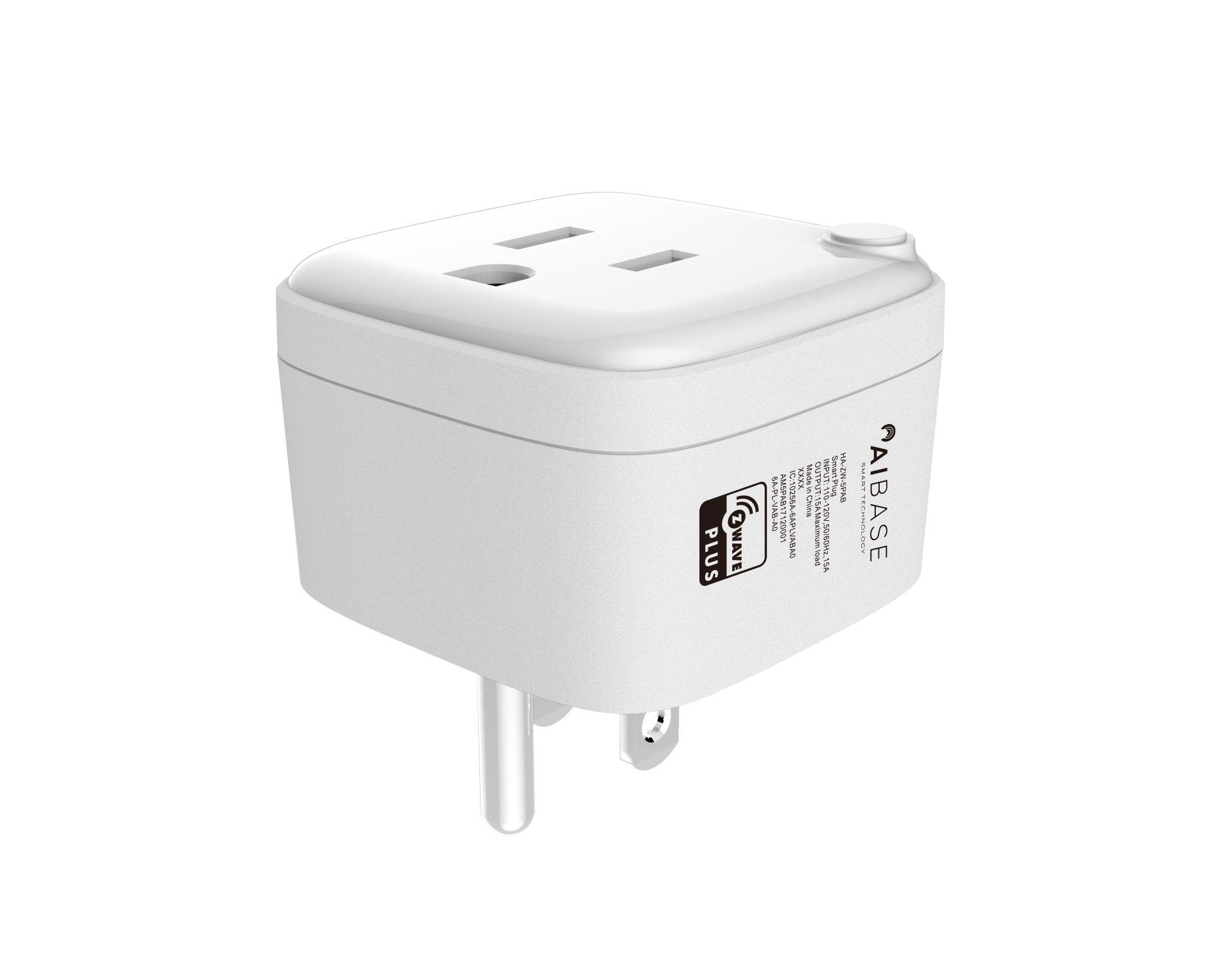

Name | Smart Plug |
Short Description | Smart plug is a Z-Wave Switch plugin module specifically used to enable Z-Wave command and control (on/off) of any plug-in tool. It can report wattage consumption or kWh energy usage. |
Long Description | • Flexibility: AC output on/off by manual or remote by APP
• Remote Control: Power on/off any device connecting to smart plug manually or by APP
• Power consumption: Measures the energy consumption of the connected devices.
• Schedule: setting your lights connected to Plug to turn on and off on a schedule.
• Z-wave Wireless signal repeater |
Brand | Aibase |
Product Identifier | HA-ZW-5PAB |
OEM Version | HW: 1 FW: 1.00 |
Hardware Platform | ZM5101 |
Z-Wave Version | 6.71.01 |
Library Type | SLAVE_ENHANCED_232 |
Device Type | On/Off Power Switch |
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
Manufacturer ID | 0x0384 |
Product Type ID | 0x0200 |
Product ID | 0x000B |
User Icon | 0x0701 |
Installer Icon | 0x0701 |
Frequency Plans | US: 916.00MHz, 908.40MHz |
Categories | Energy Meters, All Lighting Devices, On/Off Switches/Devices |
Countries / Regions | United States of America |
Supported Command Classes | |
S2 Classes | S2_UNAUTHENTICATED |
Documents | |
Features | |
Association Groups | |
Configuration Parameters | |
Texts | |
Supported / Controlled Meter Types | |
Supports NWI | Yes |
Supports Explorer Frames | Yes |
Radio Range Z-Wave (m) | 40 |
