Product Recognition
Certification Number	ZC10-15110016
Name	Smart Plug
Short Description	Wireless relay switch with true-power metering switching moment optimization for long contact life and overload protection

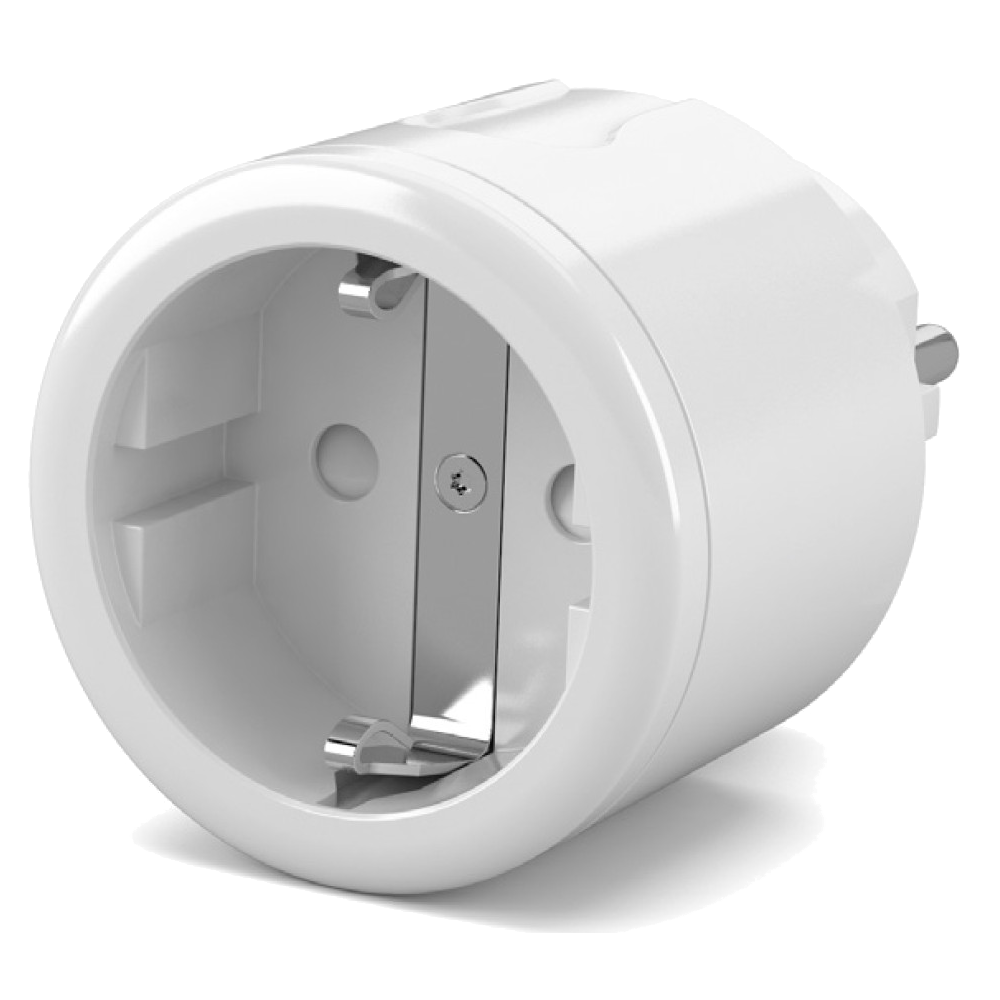

Long Description	The wireless plug socket PSC234ZW allows you to remotely control electrical appliances. It features a metering function to measure the power consumption and the accumulated energy usage of connected equipment. The built-in metering unit is of high quality: it calculates the true-power and also works for small loads from 1W upwards. This feature is important to have a correct measurement value also for electronic loads like led lamps. The PSC234ZW has a built-in safety features that will switch-off the output in case of too high temperature or overload. Additionally the PSC234 has a feature to switch the load on at zero voltage and switch the load off at zero current. This leads to a very high number of possible switching cycles also for difficult loads like led-lamps or motors, e.g. pumps.
Brand	permundo
Product Identifier	PSC234ZW
OEM Version	HW: 255
Hardware Platform	ZM5101
Z-Wave Version	6.51.06
Library Type	SLAVE_ENHANCED_232
Device Type	On/Off Power Switch
Role Type	ROLE_TYPE_SLAVE_ALWAYS_ON
Manufacturer ID	0x0245
Product Type ID	0x0003
Product ID	0x0001
Frequency Plans	EU: 869.85MHz, 868.40MHz
Categories	Energy Meters, All Lighting Devices, On/Off Switches/Devices
Countries / Regions	European Union
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual PSC234ZW_V06.pdf
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 2 5 0 Events/Notifications: Sends COMMAND_CLASS_BASIC, BASIC_REPORT every time the state of the output changed through the use of the touch button. 1 5 0 Z-Wave Lifeline Events/Notifications: (1) Sends COMMAND_CLASS_BASIC, BASIC_REPORT after every change of the output state (on/off). (2) Sends COMMAND_CLASS_METER_V2, METER_REPORT_V2 after every change of the measured energy or power value or after a timeout if the values stay unchanged. during If the energy or power value didn‘t change for a certain time. Min. time between 2 reports if the energy or power value changes: 1s Timeout for sending a report if the value stays unchanged: 15min. Min. change in value to trigger a report: 4% power (mind. 2W) oder 1Wh energy
Configuration Parameters	Parameter Number Name Description Format Size Min Value Max Value Default Value Parameter Values 31 LocalControlDisable If „LocalControlOn“ is set (factory default state) the PSC234s output can be switched manually by the touch-button. If „LocalControlOff“ is set the PSC234s output can only be switched through Z-wave telegrams. 0 1 0 0 0 From To Description 0 0 LocalControlOn 1 1 LocalControlOff
Texts	ID Description Value 5 Factory Reset Please use this procedure only if the primary controller is missing or inoperable: The device can be put into factory default state manually by the following procedure: 1) hold the touch-button until the led shows red light 2) release the touch-button and hold the touch-button again until the led starts to flash green The PSC234 confirms the successful completion of the factory reset procedure by steady red flashing. 2 Exclusion When a PSC234 that is not associated to a Z-Wave network, is inserted into the mains outlet, it will flash once red followed by 2 green flashed followed by steady red flashing. The PSC234 can now be added to (=inclusion) or removed from (=exclusion) a Z-Wave network: 1) start inclusion/exclusion on the primary controller 2) hold the touch button until the led shows green light 3) release the touch button The PSC234 will confirm successful removal/exclusion by steady red flashing. At the time of exclusion the device is factory reset. 1 Inclusion When a PSC234 that is not associated to a Z-Wave Network, is inserted into the mains outlet, it will flash once red followed by 2 green flashed followed by steady red flashing. The PSC234 can now be added to (=inclusion) or removed from (=exclusion) a Z-Wave network: 1) start inclusion/exclusion on the primary controller 2) hold the touch button until the led shows green light 3) release the touch button The PSC234 will confirm successful addition to the network by 5 green flashes. The PSC234 will confirm successful removal/exclusion by steady red flashing. At the time of exclusion the device is factory reset.
Supports NWI	Yes
Supports Explorer Frames	Yes
