Product Recognition | |
|---|
Certification Number | ZC10-16010012 |
|---|

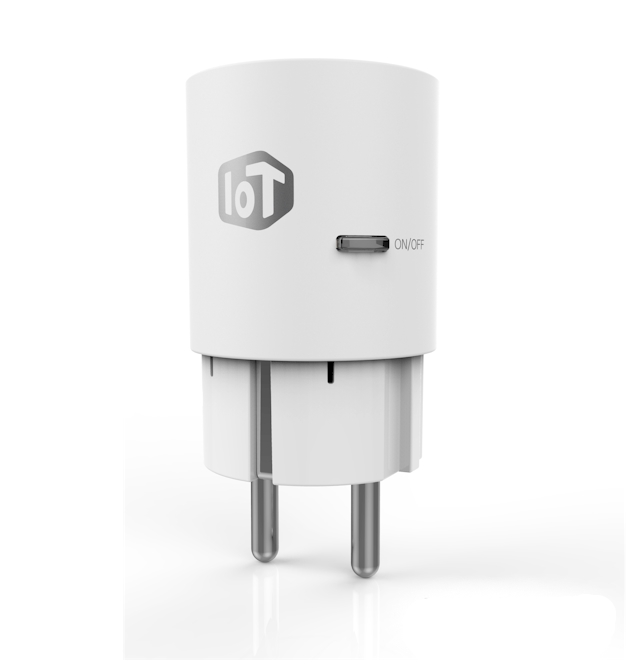

Name | Smart Plug |
|---|
Short Description | This device is z-wave IoT smart Plug.
this measures the amount currently being used of electricity and has the ability to power on or off the connected load. |
|---|
Long Description | This apparatus can remotely power on/off to the load connected through the device and can be used to measure the power usage of the load connected .
So, This Device will inform you of the electricity usage of your load. |
|---|
Brand | LG Uplus |
|---|
Product Identifier | SPD-01A |
|---|
OEM Version | 01 |
|---|
Hardware Platform | ZM5101 |
|---|
Z-Wave Version | 6.51.06 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | On/Off Power Switch |
|---|
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
|---|
Manufacturer ID | 0x018C |
|---|
Product Type ID | 0x0042 |
|---|
Product ID | 0x0002 |
|---|
Frequency Plans | KR: 920.90MHz, 921.70MHz, 923.10MHz |
|---|
Categories | Energy Meters, All Lighting Devices, On/Off Switches/Devices |
|---|
Countries / Regions | Republic of Korea |
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
1 | 5 | 0 | Z-Wave Plus Lifeline |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
1 | Standby Power Setting Value | (Standby Power Setting Value : 3 Byte, Standby Power Enable/Disble : 1 Byte) Value : if the value is set by 300, standby power equals 3.00w (0x00012C) and standby power enable is 1. total 0x00012C01 ( Default : 0 – 0.00W, StandbyPower Disable) | 0 | 4 | 0 | 0 | 0 | | 2 | Periodic Measurement Value Transmission | Value : 1 Periodic Measurement Value Transmission Enable Value : 0 Periodic Measurement Value Transmission disable ( Default : Periodic Measurement Value Transmission Enable ) | 0 | 1 | 0 | 0 | 1 | | 3 | Accumulation Start/Stop | Value : 0 Accumulation Stop Value : 1 Accumulation Start ( Default : Accumulation Start ) | 0 | 1 | 0 | 0 | 1 | | 4 | Connected Device Not Use/Use | Value : 0 Connected Device Not Use Value : 1 Connected Device Use - Before setting the standby power it does not report. | 0 | 1 | 0 | 0 | 0 | | 5 | Minumum time Interval | Minimum time interval : 10minutes Value : 1 (10minutes * 1) = 10minutes interval Value : 2 (10minutes * 2) = 20minutes interval …….. …….. Value : 144(10m * 144) = 24 hours interval =>MAX ( Default : 6 = One hour ) | 0 | 1 | 0 | 0 | 6 | |
|
|---|
Texts | ID | Description | Value |
|---|
2 | Exclusion | After mounting the UZB controller to your PC and run the PC Controller program you can click the Remove button in the PC Controller program. If being connected PC controller, Press the button on the Smart Plug for more than five seconds after you plug the Smart Plug into a power outlet, Plug will Exclusion in the controller, while the flashing button LED on the Smart Plug. | 1 | Inclusion | After mounting the UZB controller to your PC and running the PC Controller program, click the Add button in the PC Controller program. Press the button on the Smart Plug for more than five seconds after you plug the Smart Plug into a power outlet and it will include to the network controller, while flashing the button LED on the Smart Plug. | 5 | Factory Reset | Press the button on the Smart Plug for more than 10 seconds after you plug the Smart Plug into a power outlet will Exclusion in the network controller, Press the button of Smart Plug with your finger to 10 or more seconds continuously and if you take your finger off when the LED blinking of the device is in the Product Reset. And Device Status are initialized.
※ Please use this procedure only in the event that the network primary
controller is missing or otherwise inoperable |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
