| Product Recognition | |
|---|
| Certification Number | ZC10-17045573 |
|---|

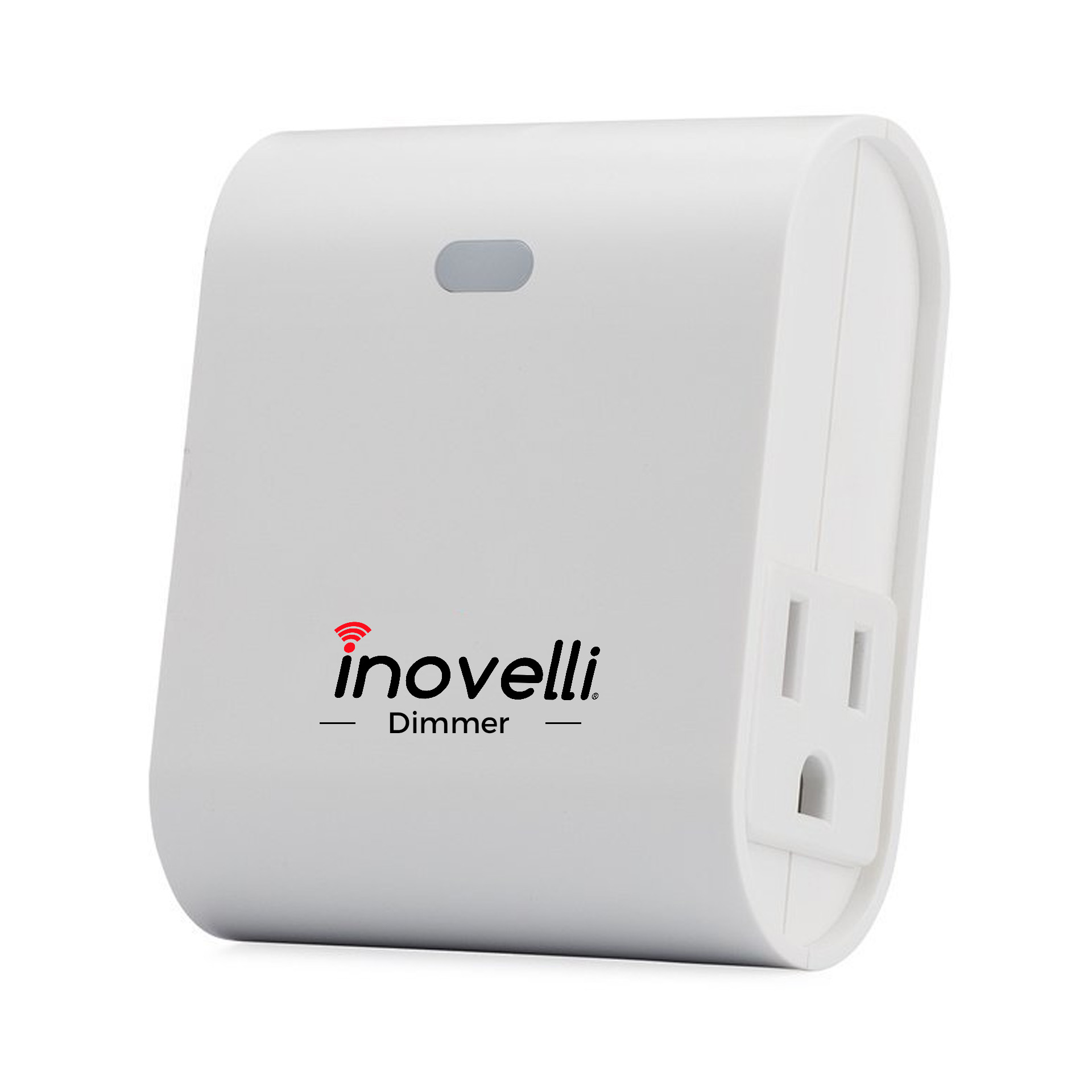

| Name | Smart Plug (Dimmer) |
|---|
| Short Description | Smart Plug (Dimmer) | Z-Wave Plus Smart Plug & Repeater |
|---|
| Long Description | Inovelli's Smart Plug-In Dimming Module + Repeater has the ability to dim & turn on and off your lights from anywhere in the world. In addition to the outlet, the smart plug acts as a Z-Wave signal repeater, which amplifies your Z-Wave signal, growing the capabilities of your network.
This smart plug is one of the smallest plugs on the market (3.5"x2.5"x1.5") and has 1 Z-Wave Dimming Outlet on the side of the device allowing for easy fit in compact places. Simplifying lives, one smart home product at a time... that's Inovelli. |
|---|
| Brand | Inovelli |
|---|
| Product Identifier | NZW39 |
|---|
| OEM Version | HW: 1 FW: 20.15 |
|---|
| Hardware Platform | ZM5202 |
|---|
| Z-Wave Version | 6.51.06 |
|---|
| Library Type | SLAVE_ROUTING |
|---|
| Device Type | Light Dimmer Switch |
|---|
| Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
|---|
| Manufacturer ID | 0x0312 |
|---|
| Product Type ID | 0xB212 |
|---|
| Product ID | 0x271C |
|---|
| User Icon | 0x0600 |
|---|
| Installer Icon | 0x0601 |
|---|
| Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
| Categories | All Lighting Devices, Dimming Lighting Devices |
|---|
| Countries / Regions | United States of America |
|---|
| Supported Command Classes | | Identifier | Name | Key | Version |
|---|
| COMMAND_CLASS_SWITCH_MULTILEVEL | Switch Multilevel | 0x26 | 1 | | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | | COMMAND_CLASS_SWITCH_ALL | Switch All | 0x27 | 1 | | COMMAND_CLASS_BASIC | Basic | 0x20 | 1 | | COMMAND_CLASS_VERSION_V2 | Version V2 | 0x86 | 2 | | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
| Documents | | Category | Description | File |
|---|
| Manual_Primary_Lang | Product or Owner's Manual | NZW39 Manual.pdf |
|
|---|
| Features | | Feature | Values |
|---|
| Switch Load Capacity Watts | | | Electric Load Type | | Value |
|---|
| Incandescent | | Dimmable LED |
| | Color | | | Firmware Updatable | | Value |
|---|
| Updatable by Professional/Technician |
| | Switch Type | | | Switch Load Capacity Current | | | Neutral Wire Required | |
|
|---|
| Association Groups | | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
| 1 | 5 | 0 | The association group supports five nodes and lifeline function |
|
|---|
| Texts | | ID | Description | Value |
|---|
| 1 | Inclusion | 1. Follow the instructions for your Z-Wave certified controller to include a device to the Z-Wave network.
2. Once the controller is ready to include your device, quick triple press the button to include it into the network.
3. Once your controller has confirmed that the device has been included, refresh the Z-Wave network to optimize performance.
4. The device is associated in the same group when it included in setting process.
Now you can control your Z-Wave device according to groups, scenes, schedules and automation programmed.
** For HUB Specific Instructions, please visit: www.inovelli.com/nzw39-setup | | 2 | Exclusion | 1. Follow the instructions for your Z-Wave certified controller to exclude a device from the Z-Wave network.
2. Once the controller is ready to Exclude your device, quick triple press the button to exclude it from the network.
** For HUB Specific Instructions, please visit: www.inovelli.com/nzw39-setup | | 5 | Factory Reset | Use controller to remove device from network will reset it to factory default.
""Use this procedure only in the event that the network primary controller is missing or otherwise inoperable."" |
|
|---|
| Supports NWI | Yes |
|---|
| Supports Explorer Frames | Yes |
|---|
