Product Recognition | |
|---|
Certification Number | ZC12-21030202 |
|---|

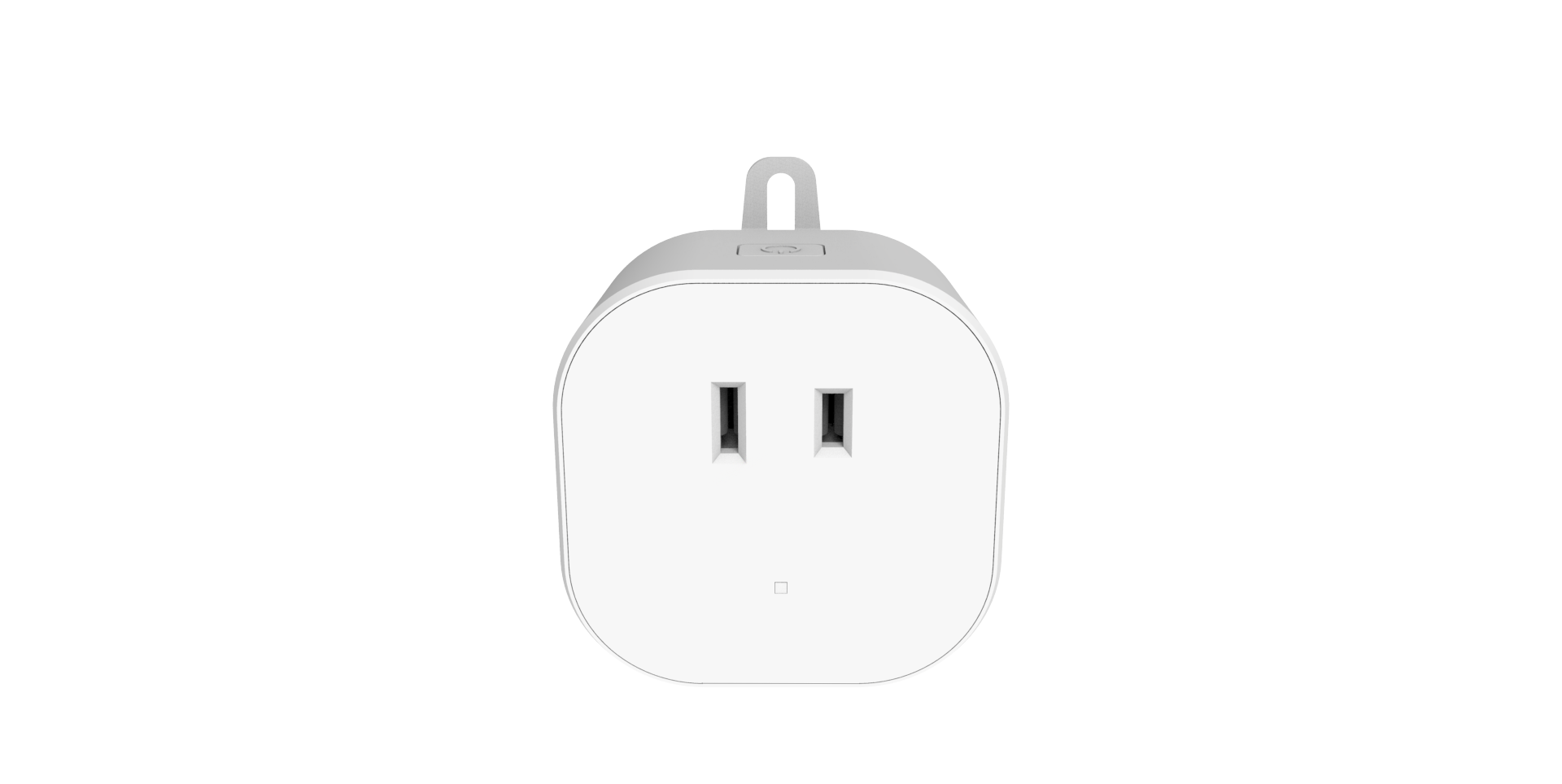

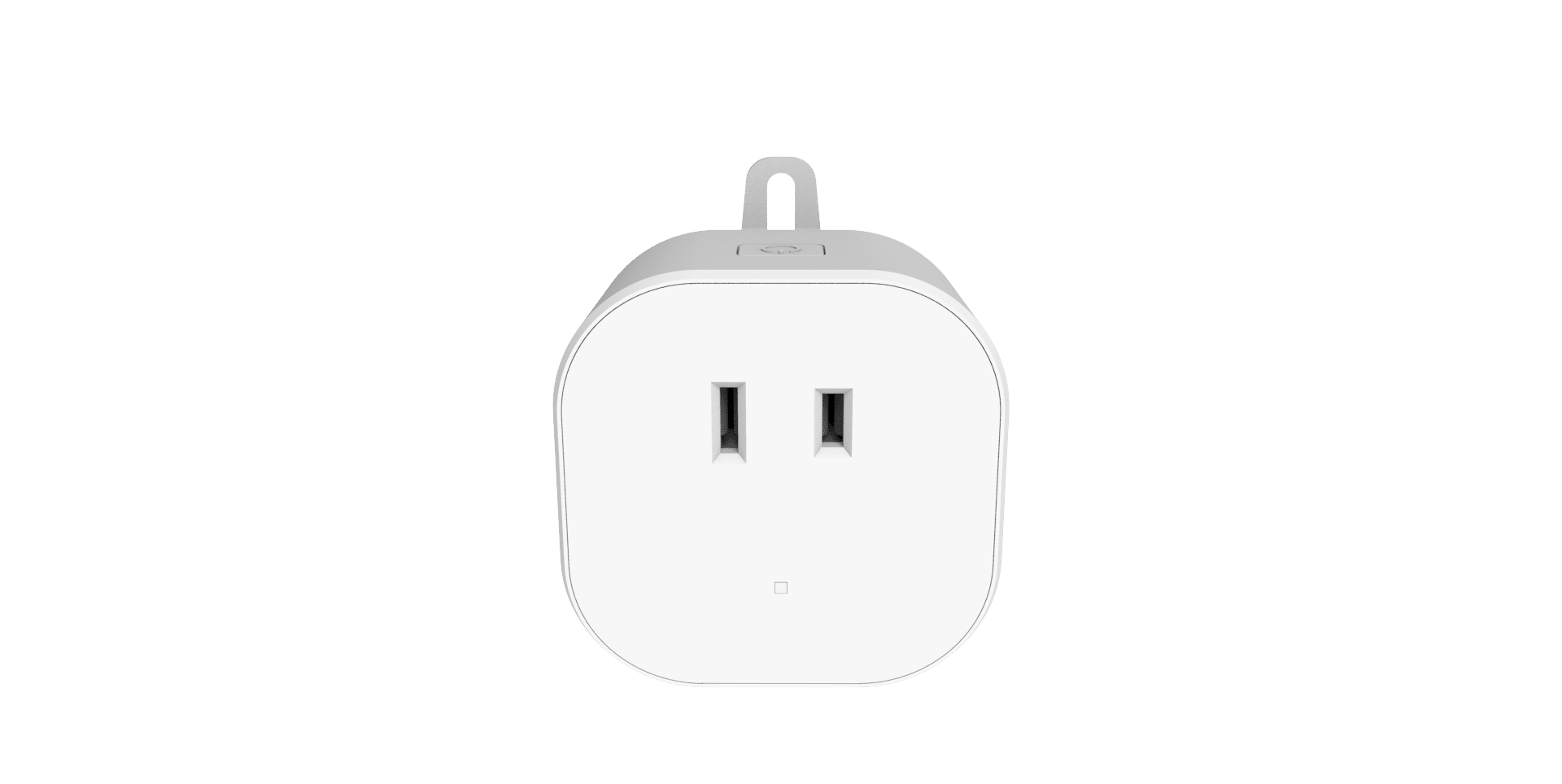

Name | Smart Plug In Dimmer |
|---|
Short Description | Make any outlet smarter with the new IQ Dimmer using the 700 series Z-Wave module |
|---|
Long Description | Make any outlet smarter!
• Works with incandescent and most dimmable florescent (CFL), or LED lighting
• 700 Series Z-Wave module
• LED to indicate ON/OFF status
• Remotely or manually turns ON or OFF, or DIM lights
• Controls light fixtures up to 300W incandescent and 65W Dimmable LED/CFL
• Z-Wave Plus Certified (QR code on bottom of device)
• Safety tab to secure unit to AC outlet
• Compact design - does not block 2nd AC outlet
• Supports Network Wide Inclusion (through a repeater)
• Works as Z-Wave Repeater
• Create rules to automate lights & scenes |
|---|
Brand | Johnson Controls |
|---|
Product Identifier | IQ Dimmer |
|---|
Product Line | Smart Home |
|---|
OEM Version | HW: 1 FW: 7.03 |
|---|
Hardware Platform | ZGM130 |
|---|
Z-Wave Version | 7.13.6 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Multilevel Switch |
|---|
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
|---|
Manufacturer ID | 0x012A |
|---|
Product Type ID | 0x4744 |
|---|
Product ID | 0x3034 |
|---|
User Icon | 0x0600 |
|---|
Installer Icon | 0x0601 |
|---|
Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
Categories | All Lighting Devices, Dimming Lighting Devices, On/Off Switches/Devices, Lighting Accessories |
|---|
Countries / Regions | United States of America |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_CONFIGURATION_V4 | Configuration V4 | 0x70 | 4 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 | Multi-Channel Association V3 | 0x8E | 3 | COMMAND_CLASS_INDICATOR_V3 | Indicator V3 | 0x87 | 3 | COMMAND_CLASS_APPLICATION_STATUS | Application Status | 0x22 | 1 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_FIRMWARE_UPDATE_MD_V5 | Firmware Update Meta-Data V5 | 0x7A | 5 | COMMAND_CLASS_SWITCH_MULTILEVEL_V4 | Switch Multilevel V4 | 0x26 | 4 | COMMAND_CLASS_ASSOCIATION_GRP_INFO_V3 | Association Group Information V3 | 0x59 | 3 | COMMAND_CLASS_BASIC_V2 | Basic V2 | 0x20 | 2 | COMMAND_CLASS_SECURITY_2 | Security S2 | 0x9F | 1 | COMMAND_CLASS_VERSION_V3 | Version V3 | 0x86 | 3 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
S2 Classes | S2_UNAUTHENTICATED, S2_AUTHENTICATED |
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product Manual | |
|
|---|
Features | Feature | Values |
|---|
Color | | Electric Load Type | Value |
|---|
Incandescent | Dimmable LED | Dimmable Fluorescent |
| Firmware Updatable | Value |
|---|
Updatable by Consumer by RF |
| Outdoor Use | | Switch Load Capacity Current | | Switch Load Capacity Watts | Value |
|---|
300W Incandescent, 65W Dimmable CFL/LED |
|
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Group Name | Profile | Description |
|---|
1 | 5 | 0 | Lifeline | 0x0001 | IQ Dimmer supports Group 1 for lifeline communication | 2 | 5 | 0 | Group2 On/Off/Dim control | 0x2001 | The devices in Association Group 2 can be controlled (on/off/dim) by single pressing the button using Basic Set |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
11 | Set dimmer ramp rate (remote) | Valid Values: 0-99, 0=No delay (instant ON), 1=1 second | 1 | 1 | 0 | 90 | 3 | From | To | Description |
|---|
0 | 90 | Valid Values: 0-99, 0=No delay (instant ON), 1=1 second |
| 3 | LED Mode Indicator | When value = 0, the LED indicator will be OFF when the connected appliance is ON, and the LED indicator will be ON when the connected appliance is OFF. If value = 1, the LED indicator will be OFF when the connected appliance is OFF, and the LED indicator will be ON when the connected appliance is ON. If value = 2, the LED indicator will be always OFF regardless of the load status. | 1 | 1 | 0 | 2 | 0 | From | To | Description |
|---|
0 | 2 | When value = 0, the LED indicator will be OFF when the connected appliance is ON, and the LED indicator will be ON when the connected appliance is OFF. If value = 1, the LED indicator will be OFF when the connected appliance is OFF, and the LED indicator will be ON when the connected appliance is ON. If value = 2, the LED indicator will be always OFF regardless of the load status. |
|
|
|---|
Texts | ID | Description | Value |
|---|
8 | Where to find S2 DSK on product | Z-Wave Plus Certified with S2 security and SmartStart (QR code on bottom of device) | 1 | Classic Inclusion | 1. Place your network controller into inclusion mode by following the controller manufacturer's instructions.
2. When the controller is ready, single click the button on the top of the IQ Dimmer. The controller should indicate that the new device was added successfully.
3. Once the IQ Dimmer has been successfully added to your home network, you can move it to the preferred location in the home. | 2 | Classic Exclusion | 1. Place your network controller into exclusion mode by following the controller manufacturer's instructions.
2. When the controller is ready, single click the button on the top of the IQ Dimmer. The controller should indicate that the new device was added successfully.
3. Once the IQ Dimmer has been successfully added to your home network, you can move it to the preferred location in the home. | 5 | Factory Reset Procedure | If Inclusion still fails after the 2nd attempt, you need to first reset the IQ Dimmer before repeating the above step. The manual reset method is as follows:
1. Unplug the IQ Dimmer from the AC outlet and also unplug the power plug of the appliance from the IQ Dimmer (if plugged in).
2. Press and hold the button on the IQ Dimmer.
3. Plug the IQ Dimmer back into the AC outlet with the button pressed. |
|
|---|
Supported / Controlled Meter Types | Meter Type | Rate Type | Description |
|---|
Electric meter | Import | Electric Meter Consumption |
|
|---|
Supported Notification Types | Notification Type | Event / State |
|---|
Power Management | Power status: Power has been applied |
|
|---|
Supported Multilevel Sensors | Multilevel Sensor Type |
|---|
Illuminance |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Supports SmartStart | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
