Product Recognition
Certification Number	ZC10-17055581

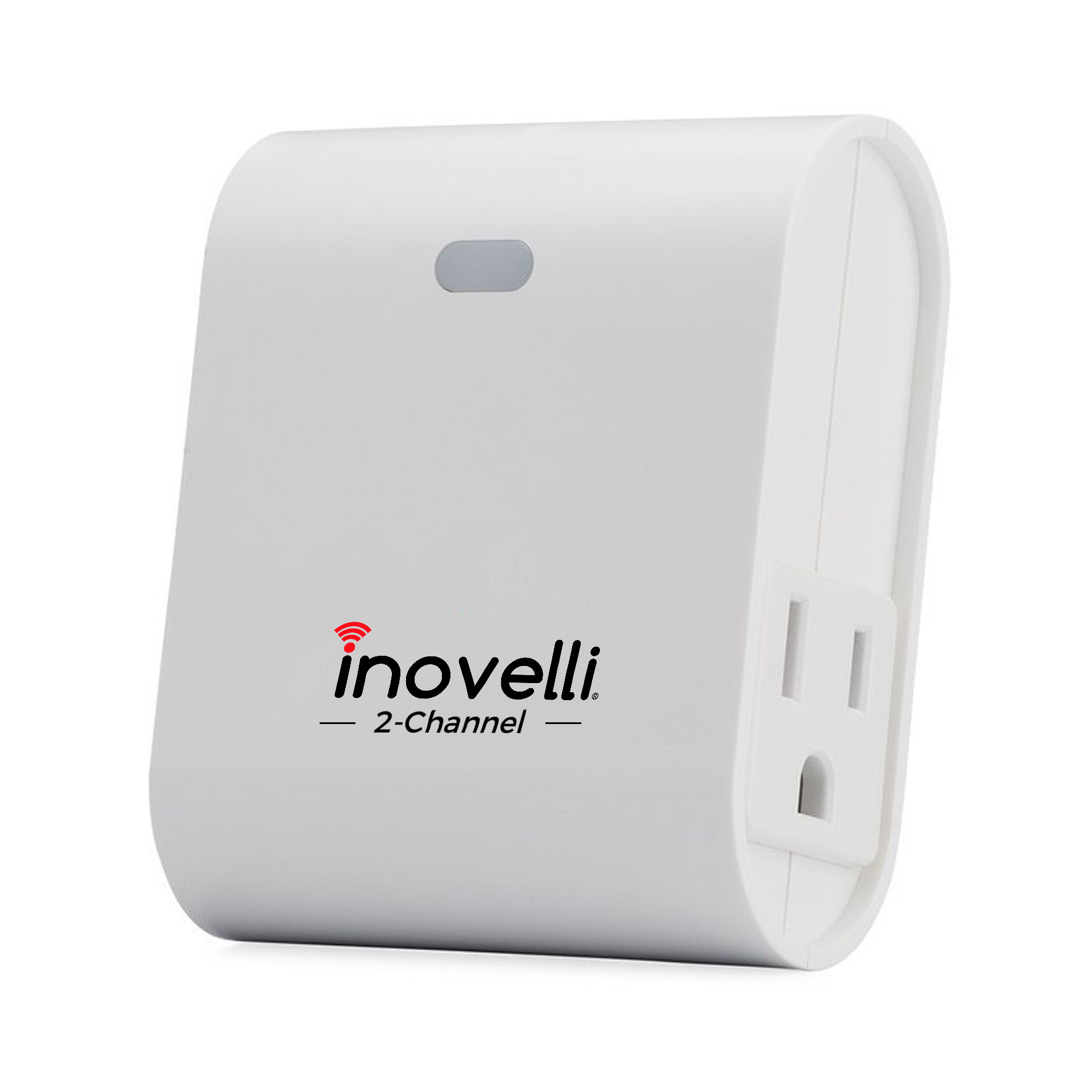

Name	Smart Plug-In Module (2 Channel)
Short Description	Smart Plug-In Module (2 Channel)
Long Description	Inovelli's Dual Smart Plug-In On/Off Module + Repeater has the ability to turn on and off appliances, lights, and more from anywhere in the world from two different outlets! In addition to the dual smart outlets, the smart plug acts as a Z-Wave signal repeater, which amplifies your Z-Wave signal, growing the capabilities of your network. This smart plug is one of the smallest plugs on the market (3.5"x2.5"x1.5") and has two (2) Z-Wave Outlets on the side of the device allowing for easy fit in compact places. You can control each outlet individually (and simultaneously*) with all HUB's that support multi-channel Z-Wave devices. Simplifying lives, one smart home product at a time... that's Inovelli. *Please see our Amazon or our website for compatible HUB's
Brand	Inovelli
Product Identifier	NZW37
OEM Version	HW: 0 FW: 20.15
Hardware Platform	ZM5202
Z-Wave Version	6.51.06
Library Type	SLAVE_ROUTING
Device Type	On/Off Power Switch
Role Type	ROLE_TYPE_SLAVE_ALWAYS_ON
Manufacturer ID	0x0312
Product Type ID	0xB211
Product ID	0x241C
User Icon	0x0700
Installer Icon	0x0701
Frequency Plans	US: 916.00MHz, 908.40MHz
Categories	All Lighting Devices, On/Off Switches/Devices
Countries / Regions	United States of America
Supported Command Classes	Identifier Name Key Version COMMAND_CLASS_POWERLEVEL Powerlevel 0x73 1 COMMAND_CLASS_SWITCH_BINARY Switch Binary 0x25 1 COMMAND_CLASS_BASIC Basic 0x20 1 COMMAND_CLASS_VERSION_V2 Version V2 0x86 2 COMMAND_CLASS_DEVICE_RESET_LOCALLY Device Reset Locally 0x5A 1 COMMAND_CLASS_ZWAVEPLUS_INFO_V2 Z-Wave Plus Info V2 0x5E 2 COMMAND_CLASS_ASSOCIATION_V2 Association V2 0x85 2 COMMAND_CLASS_ASSOCIATION_GRP_INFO Association Group Info 0x59 1 COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 Manufacturer Specific V2 0x72 2
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual 51010 NZW37 Manual.pdf
Features	Feature Values Firmware Updatable Value Updatable by Professional/Technician Electric Load Type Value ELV (Electronic) Switch Load Capacity Current Value 16 Amps Total (10 Amps Max per Outlet) Switch Type Value Push Button Illuminated
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 2 0 The association group supports five nodes and lifeline function
Texts	ID Description Value 2 Exclusion 1. Follow the instructions for your Z-Wave certified controller to exclude a device from the Z-Wave network. 2. Once the controller is ready to Exclude your device, press the center button 3-5 times within 3 seconds to exclude it from the network. 5 Factory Reset Use controller to remove device from network will reset it to factory default. ""Use this procedure only in the event that the network primary controller is missing or otherwise inoperable."" 1 Inclusion 1. Follow the instructions for your Z-Wave certified controller to include a device to the Z-Wave network. 2. Once the controller is ready to Include your device, press the center button 3-5 times within 3 seconds. 3. Once your controller has confirmed that the device has been included, refresh the Z-Wave network to optimize performance. 4. The device is associated in the same group when it included in setting process. Now you can control your Z-Wave device according to groups, scenes, schedules and automation programmed. ** NOTE: If your product does not include at first, try moving the module closer to the HUB and try again -- you can move to your final location when complete For setup instructions for your specific HUB (ie: SmartThings, Wink, Vera, etc) please go to: www.inovelli.com/nzw37-setup
Supports NWI	Yes
Supports Explorer Frames	Yes
