| Product Recognition | |
|---|
| Certification Number | ZC10-16075147 |
|---|

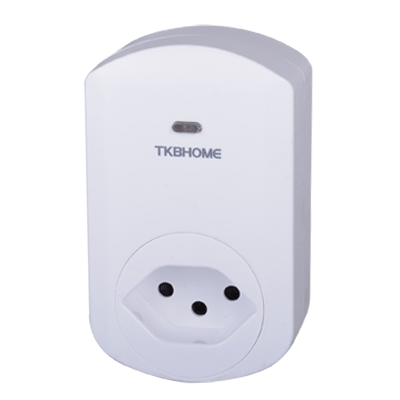

| Name | Smart Plug in Switch |
|---|
| Short Description | When you use this ON/OFF plug-in switch, just put it in the outlet, add it to the Z-Wave controller, download APP, you can use it control appliance with max. load 3500W on/off via smartphone. |
|---|
| Long Description | 1. This plug-in ON/OFF switch in a transceiver which is a Z-Wave enabled device and is fully compatible with any Z-Wave enabled network.
2. Each socket is designed to act as a repeater. Repeaters will re-transmit the RF signal to ensure the signal to ensure that the signal is received by its intended destination.
3. You can use the button in the socket to include/exclude, manually on/off or act as a indicator. You can use it to turn on/off appliance remotely via smart home or computer. |
|---|
| Brand | TKB Home |
|---|
| Product Identifier | TZ68CH |
|---|
| OEM Version | HW: 1 FW: 2.00 |
|---|
| Hardware Platform | ZM5202 |
|---|
| Z-Wave Version | 6.51.06 |
|---|
| Library Type | SLAVE_ENHANCED_232 |
|---|
| Device Type | On/Off Power Switch |
|---|
| Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
|---|
| Manufacturer ID | 0x0118 |
|---|
| Product Type ID | 0x0003 |
|---|
| Product ID | 0x0008 |
|---|
| User Icon | 0700 |
|---|
| Installer Icon | 0701 |
|---|
| Frequency Plans | EU: 869.85MHz, 868.40MHz |
|---|
| Categories | All Lighting Devices, On/Off Switches/Devices |
|---|
| Countries / Regions | European Union |
|---|
| Documents | |
|---|
| Features | | Feature | Values |
|---|
| Color | | | Switch Type | |
|
|---|
| Association Groups | | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
| 1 | 5 | 0 | Z-Wave Plus Lifeline |
|
|---|
| Texts | | ID | Description | Value |
|---|
| 1 | Inclusion | 1. Have Z-Wave controller with inclusion mode
2. Press the socket on/off button three times within 1.5 seconds to be included to the controller | | 2 | Exclusion | 1. Have Z-Wave controller with exclusion mode
2. Press the socket on/off button three times within 1.5 seconds to be excluded from the controller | | 5 | Factory Reset | 1. Press the socket on/off button three times within 1.5 seconds
2. then within 1 second to press and hold on for 5 seconds until the socket button LED is off, reset to factory default successfully
3. Use this procedure only in the event that the network primary controller is missing or otherwise inoperable |
|
|---|
| Supports NWI | Yes |
|---|
| Supports Explorer Frames | Yes |
|---|
