Product Recognition
Certification Number	ZC10-16095206

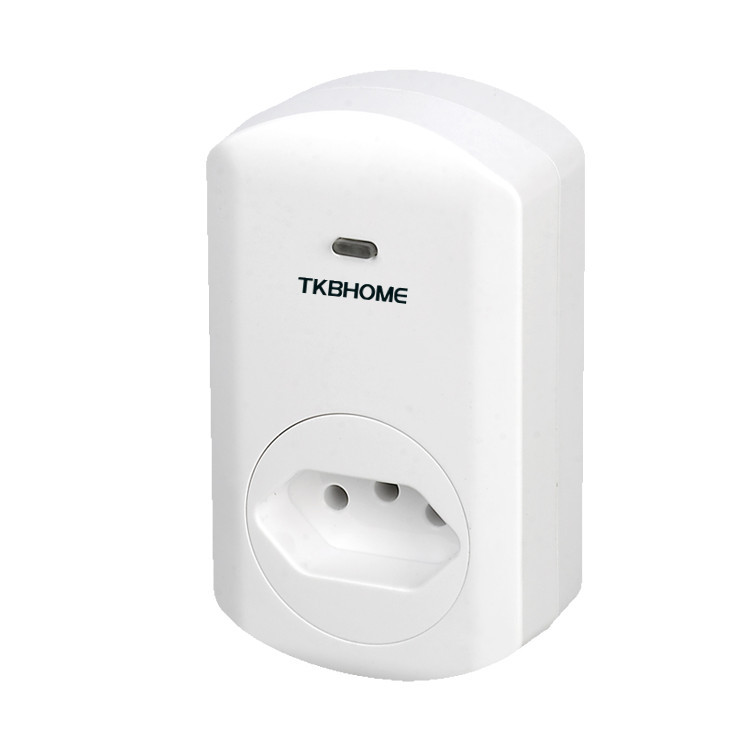

Name	Smart Plug in Switch
Short Description	When you use this ON/OFF plug-in switch, just put it in the outlet, add it to the Z-Wave controller, download APP, you can use it control appliance with max. load 2500W on/off via smartphone.
Long Description	1. This plug-in ON/OFF switch in a transceiver which is a Z-Wave enabled device and is fully compatible with any Z-Wave enabled network. 2. Each socket is designed to act as a repeater. Repeaters will re-transmit the RF signal to ensure the signal to ensure that the signal is received by its intended destination. 3. You can use the button in the socket to include/exclude, manually on/off or act as a indicator. You can use it to turn on/off appliance remotely via smart home or computer.
Brand	TKB Home
Product Identifier	TZ68BR
OEM Version	HW: 1 FW: 2.00
Hardware Platform	ZM5202
Z-Wave Version	6.51.06
Library Type	SLAVE_ENHANCED_232
Device Type	On/Off Power Switch
Role Type	ROLE_TYPE_SLAVE_ALWAYS_ON
Manufacturer ID	0x0118
Product Type ID	0x0003
Product ID	0x0002
User Icon	0x0700
Installer Icon	0x0701
Frequency Plans	ANZ: 919.80MHz, 921.40MHz
Categories	All Lighting Devices, On/Off Switches/Devices
Countries / Regions	Brazil
Supported Command Classes	Identifier Name Key Version COMMAND_CLASS_POWERLEVEL Powerlevel 0x73 1 COMMAND_CLASS_SWITCH_BINARY Switch Binary 0x25 1 COMMAND_CLASS_BASIC Basic 0x20 1 COMMAND_CLASS_VERSION_V2 Version V2 0x86 2 COMMAND_CLASS_DEVICE_RESET_LOCALLY Device Reset Locally 0x5A 1 COMMAND_CLASS_ZWAVEPLUS_INFO_V2 Z-Wave Plus Info V2 0x5E 2 COMMAND_CLASS_ASSOCIATION_V2 Association V2 0x85 2 COMMAND_CLASS_ASSOCIATION_GRP_INFO Association Group Info 0x59 1 COMMAND_CLASS_FIRMWARE_UPDATE_MD_V2 Firmware Update Meta-Data V2 0x7A 2 COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 Manufacturer Specific V2 0x72 2
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual TZ68 User Manual.pdf
Features	Feature Values Color Value White Switch Type Value Push Button
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 5 0 Z-Wave Plus Lifeline
Texts	ID Description Value 1 Inclusion 1. Have Z-Wave controller with inclusion mode 2. Press the socket on/off button three times within 1.5 seconds to be included to the controller 2 Exclusion 1. Have Z-Wave controller with exclusion mode 2. Press the socket on/off button three times within 1.5 seconds to be excluded from the controller 5 Factory Reset 1. Press the socket on/off button three times within 1.5 seconds 2. then within 1 second to press and hold on for 5 seconds until the socket button LED is off, reset to factory default successfully 3. Use this procedure only in the event that the network primary controller is missing or otherwise inoperable
Supports NWI	Yes
Supports Explorer Frames	Yes
