Product Recognition | |
|---|
Certification Number | ZC12-21030207 |
|---|

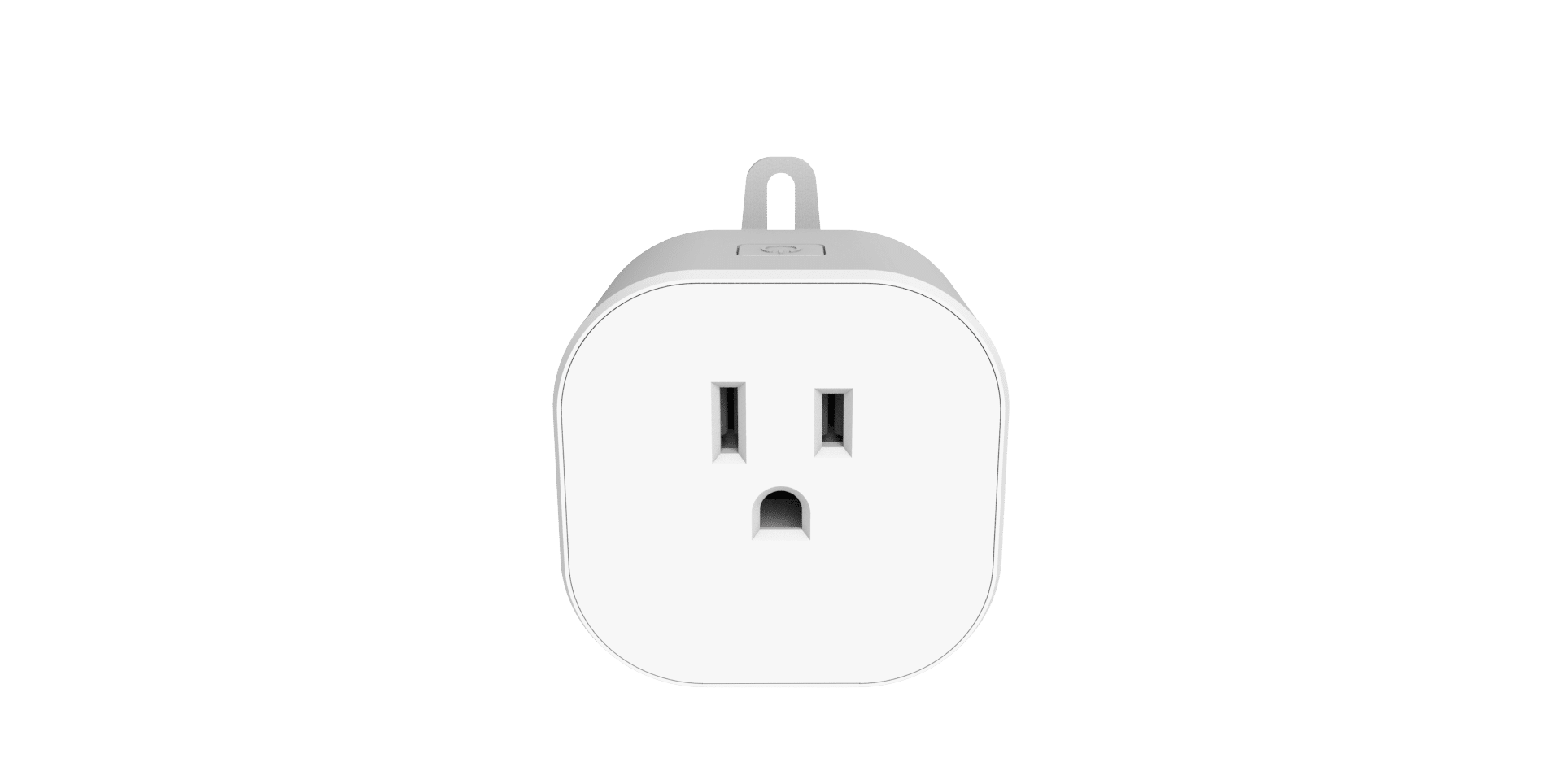

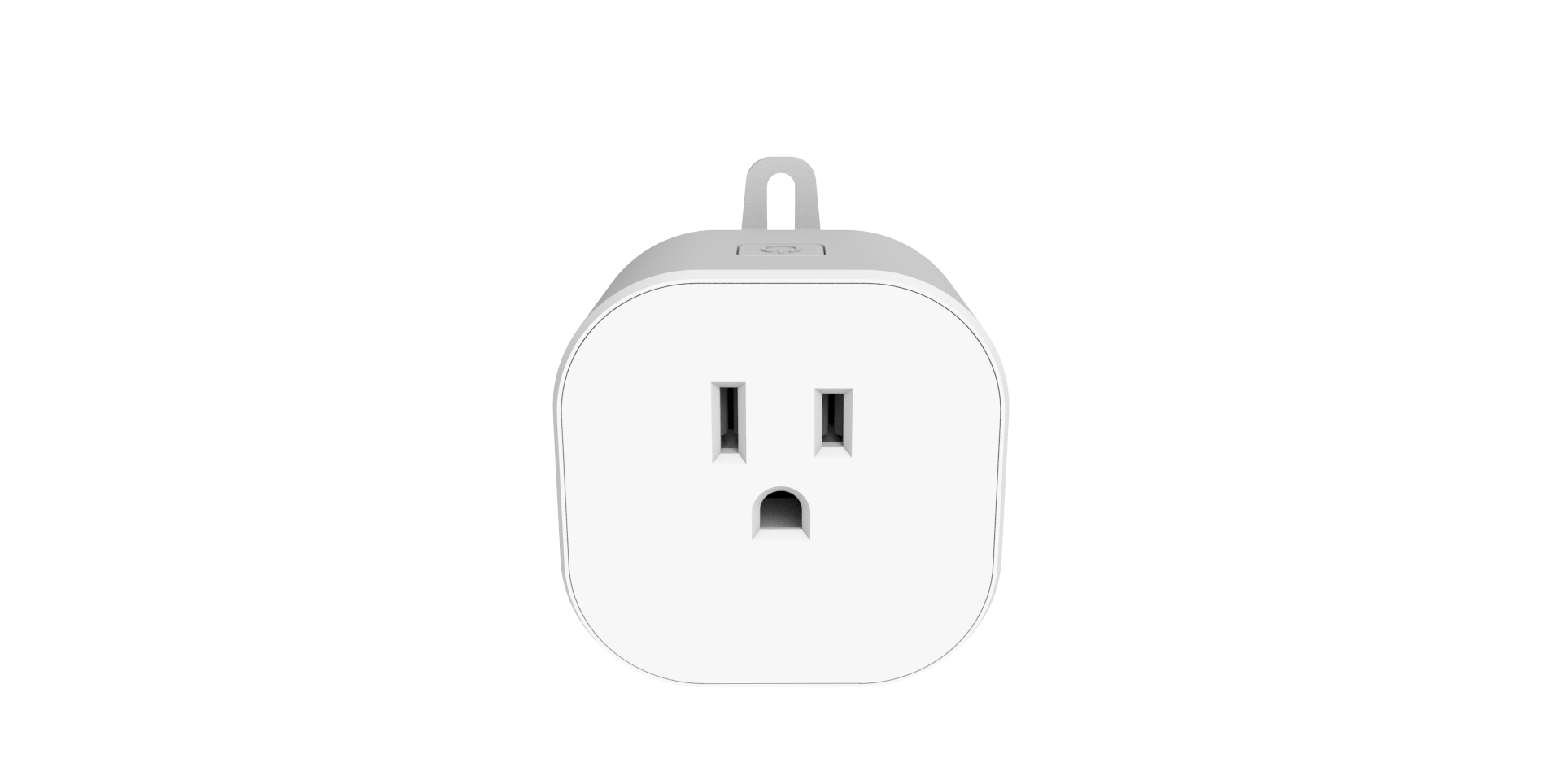

Name | Smart Plug In Switch |
|---|
Short Description | Make any outlet smarter with the new IQ Outlet using the 700 series Z-Wave module |
|---|
Long Description | Make any outlet smarter with the new IQ Outlet using the 700 series Z-Wave module
- Turns ON/OFF incandescent, CFL, or LED lamps, and AC operated electrical appliances
- 700 Series Z-Wave module
- Energy monitoring supported
- LED to indicate ON/OFF status
- Controls appliances up to 15A
- Z-Wave Plus Certified with S2 security and SmartStart (QR code with Z-Wave DSK included)
- Grounded 3-pin AC power receptacle to enhance safety
- Safety tab to secure to outlet
- Compact design - does not block the 2nd AC outlet
- Over-The-Air firmware upgrade available, if supported by controller
- Supports Network Wide Inclusion (inclusion through a repeater), if supported by controller.
- Functions as a Z-Wave signal repeater |
|---|
Brand | Johnson Controls |
|---|
Product Identifier | IQ Outlet |
|---|
Product Line | Smart Home |
|---|
OEM Version | HW: 1 FW: 7.08 |
|---|
Hardware Platform | ZGM130 |
|---|
Z-Wave Version | 7.13.7 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Binary Switch |
|---|
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
|---|
Manufacturer ID | 0x012A |
|---|
Product Type ID | 0x4744 |
|---|
Product ID | 0x3033 |
|---|
User Icon | 0x0700 |
|---|
Installer Icon | 0x0700 |
|---|
Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
Categories | Energy Meters, All Lighting Devices, On/Off Switches/Devices, Lighting Accessories |
|---|
Countries / Regions | United States of America |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_CONFIGURATION_V4 | Configuration V4 | 0x70 | 4 | COMMAND_CLASS_SCENE_ACTUATOR_CONF | Scene Actuator Conf | 0x2C | 1 | COMMAND_CLASS_SWITCH_BINARY_V2 | Switch Binary V2 | 0x25 | 2 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_METER_V6 | COMMAND_CLASS_METER_V6 | | 0 | COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 | Multi-Channel Association V3 | 0x8E | 3 | COMMAND_CLASS_INDICATOR_V3 | Indicator V3 | 0x87 | 3 | COMMAND_CLASS_APPLICATION_STATUS | Application Status | 0x22 | 1 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_FIRMWARE_UPDATE_MD_V5 | Firmware Update Meta-Data V5 | 0x7A | 5 | COMMAND_CLASS_ASSOCIATION_GRP_INFO_V3 | Association Group Information V3 | 0x59 | 3 | COMMAND_CLASS_BASIC_V2 | Basic V2 | 0x20 | 2 | COMMAND_CLASS_SECURITY_2 | Security S2 | 0x9F | 1 | COMMAND_CLASS_VERSION_V3 | Version V3 | 0x86 | 3 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | COMMAND_CLASS_SCENE_ACTIVATION | Scene Activation | 0x2B | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
S2 Classes | S2_UNAUTHENTICATED, S2_AUTHENTICATED |
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product Manual | |
|
|---|
Features | Feature | Values |
|---|
Color | | Switch Load Capacity Current | | Switch Load Capacity Watts | Value |
|---|
900W incandescent, 200W CFL/LED |
| Electric Load Type | Value |
|---|
Incandescent | Fluorescent | LED | Inductive (e.g. Motor) |
| Firmware Updatable | Value |
|---|
Updatable by Consumer by RF |
| Outdoor Use | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Group Name | Profile | Description |
|---|
2 | 5 | 0 | Basic Set | 0x2001 | The devices in Association Group 2 can be controlled (on/off) by single pressing the button using Basic Set | 1 | 5 | 0 | Lifeline | 0x0001 | IQ Outlet supports Group 1 for lifeline communication
|
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
4 | Energy monitoring reporting interval | 0 = Disable energy monitoring, default 1 - 255 = Reporting interval (minutes) | 2 | 1 | 0 | 255 | 0 | From | To | Description |
|---|
0 | 255 | 0 = Disable energy monitoring, default 1 - 255 = Reporting interval (minutes) |
| 3 | LED Mode Indicator | When value = 0, the LED indicator will be OFF when the connected appliance is ON, and the LED indicator will be ON when the connected appliance is OFF. If value = 1, the LED indicator will be OFF when the connected appliance is OFF, and the LED indicator will be ON when the connected appliance is ON. If value = 2, the LED indicator will be always OFF regardless of the load status. | 2 | 1 | 0 | 2 | 0 | From | To | Description |
|---|
0 | 2 | When value = 0, the LED indicator will be OFF when the connected appliance is ON, and the LED indicator will be ON when the connected appliance is OFF. If value = 1, the LED indicator will be OFF when the connected appliance is OFF, and the LED indicator will be ON when the connected appliance is ON. If value = 2, the LED indicator will be always OFF regardless of the load status. |
|
|
|---|
Texts | ID | Description | Value |
|---|
8 | Where to find S2 DSK on product | Z-Wave Plus Certified with S2 security and SmartStart (QR code on bottom of device) | 1 | Classic Inclusion | 1. Place your network controller into inclusion mode by following the controller manufacturer's instructions.
2. When the controller is ready, single click the button on the top of the IQ Outlet. The controller should indicate that the new device was added successfully.
3. Once the IQ Outlet has been successfully added to your home network, you can move it to the preferred location in the home. | 2 | Classic Exclusion | 1. Place your network controller into exclusion mode by following the controller manufacturer's instructions.
2. When the controller is ready, single click the button on the top of the IQ Outlet. The controller should indicate that the new device was added successfully.
3. Once the IQ Outlet has been successfully added to your home network, you can move it to the preferred location in the home. | 5 | Factory Reset Procedure | Please use this procedure only when the network primary controller is missing or otherwise inoperable. The manual reset method is as follows:
1. Unplug the IQ Outlet from the AC outlet and also unplug the power plug of the appliance from the IQ Outlet (if plugged in).
2. Press and hold the button on the IQ Outlet .
3. Plug the IQ Outlet back into the AC outlet with the button pressed. |
|
|---|
Supported / Controlled Meter Types | Meter Type | Rate Type | Description |
|---|
Electric meter | Import | Electric Meter Consumption |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Supports SmartStart | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
