Product Recognition | |
|---|
Certification Number | ZC10-17065636 |
|---|

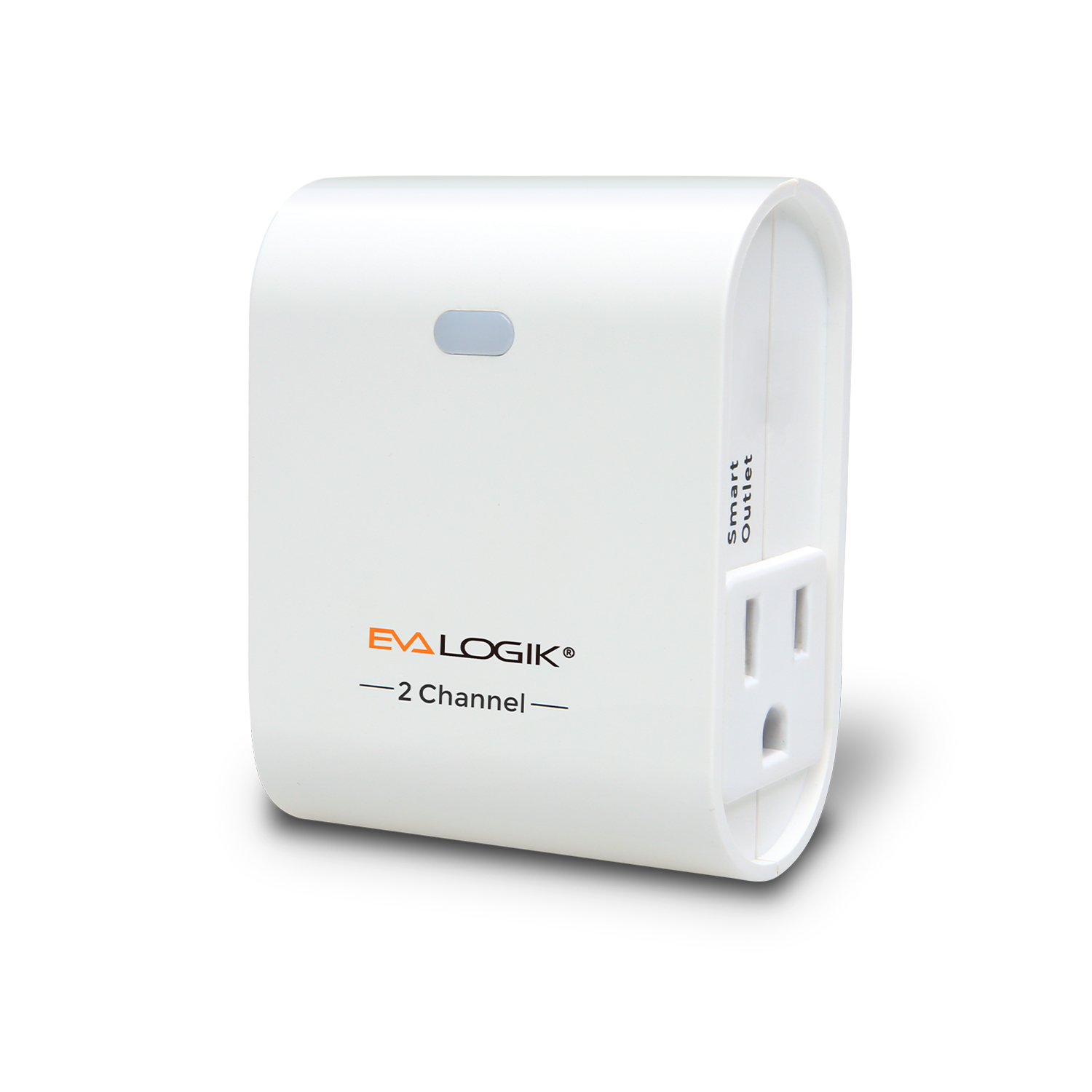

Name | Smart Plug Switch (2 channel) |
|---|
Short Description | The 2 ports smart plug provides one Z-Wave outlet for remote controlled by controller through Z-Wave gateway for internet of thing service and can be configured in Z-Wave sensor network, |
|---|
Long Description | The 2 ports smart plug provides one Z-Wave outlet for remote controlled by controller through Z-Wave gateway for internet of thing service and can be configured in Z-Wave sensor network, |
|---|
Brand | EVA LOGIK |
|---|
Product Identifier | ZW37 |
|---|
OEM Version | HW: 0 FW: 20.15 |
|---|
Hardware Platform | ZM5202 |
|---|
Z-Wave Version | 6.51.06 |
|---|
Library Type | SLAVE_ROUTING |
|---|
Device Type | On/Off Power Switch |
|---|
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
|---|
Manufacturer ID | 0x0312 |
|---|
Product Type ID | 0xB211 |
|---|
Product ID | 0x241C |
|---|
User Icon | 0x0700 |
|---|
Installer Icon | 0x0701 |
|---|
Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
Categories | All Lighting Devices, On/Off Switches/Devices |
|---|
Countries / Regions | United States of America |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 | Multi-Channel Association V3 | 0x8E | 3 | COMMAND_CLASS_SWITCH_BINARY | Switch Binary | 0x25 | 1 | COMMAND_CLASS_BASIC | Basic | 0x20 | 1 | COMMAND_CLASS_VERSION_V2 | Version V2 | 0x86 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_MULTI_CHANNEL_V4 | Multi-Channel V4 | 0x60 | 4 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Features | Feature | Values |
|---|
Color | | Electric Load Type | Value |
|---|
Incandescent | Fluorescent | LED | Inductive (e.g. Motor) |
| Firmware Updatable | | Switch Load Capacity Volt-Ampere | | Switch Load Capacity Watts | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
1 | 2 | 0 | Z-Wave Plus Lifeline |
|
|---|
Texts | ID | Description | Value |
|---|
1 | Inclusion | 1. Follow the instructions for your Z-Wave certified controller to include
a device to the Z-Wave network.
2. Once the controller is ready to include your device, press up and
release the toggle to include it in the network. | 2 | Exclusion | 1. Follow the instructions for your Z-Wave certified controller to exclude
a device from the Z-Wave network.
2. Once the controller is ready to Exclude your device, press up and
release the toggle to exclude it from the network. | 5 | Factory Reset | Press and hold the top button for at least 3 seconds while you plug the smart switch into a receptacle.
Use this procedure only in the event that the network primary controller is missing or otherwise inoperable. |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
