Product Recognition | |
|---|---|
Certification Number | ZC10-17095787 |

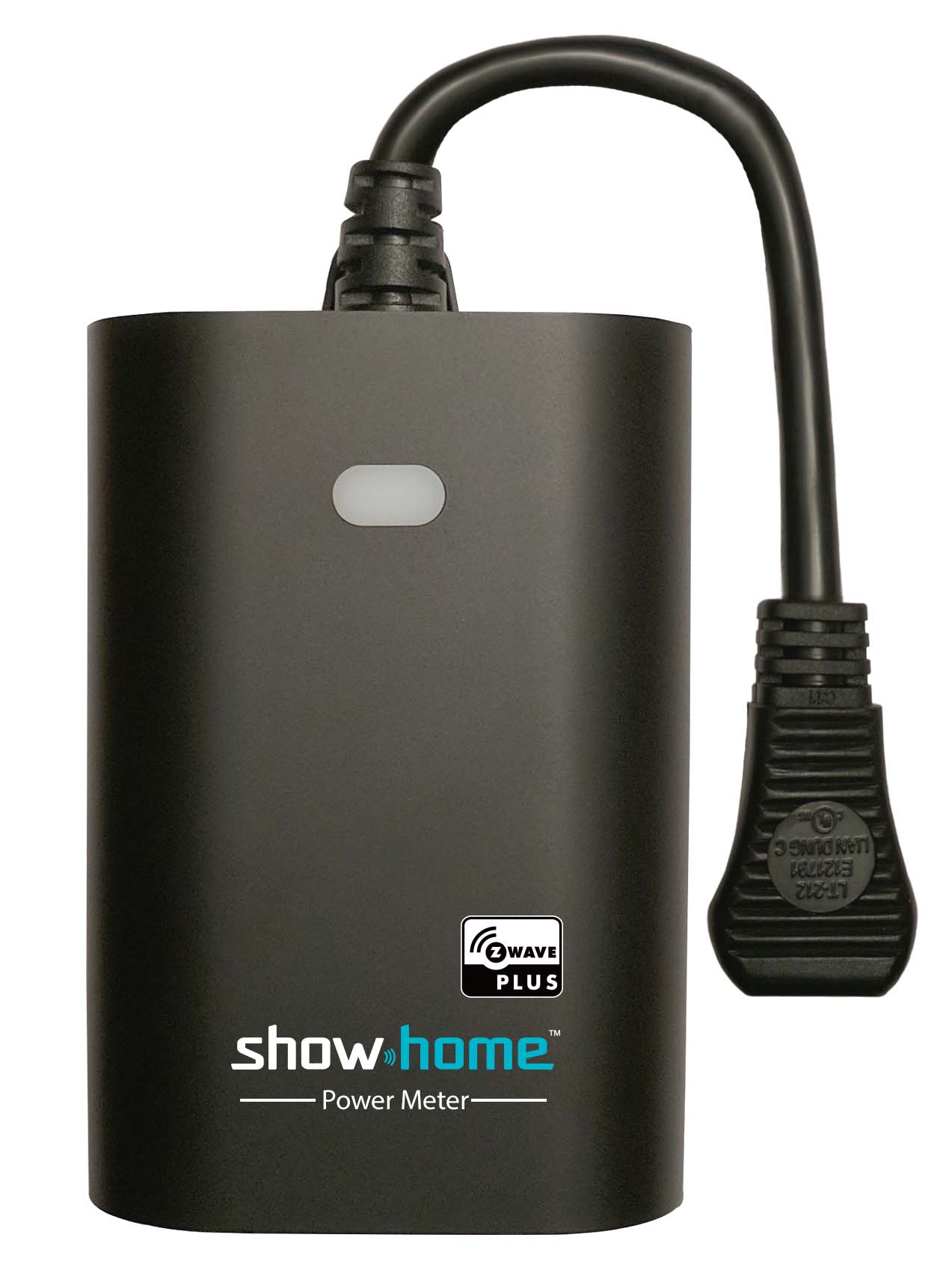

Name | Smart Plug(Built-in Energy Meter) |
Short Description | This smart plug provides one Z-Wave outlet with power and send out the consumption data for remote controller through Z-Wave gateway for internet of thing service and can be configured in Z-Wave sensor network, |
Long Description | This smart plug provides one Z-Wave outlet with power and send out the consumption data for remote controller through Z-Wave gateway for internet of thing service and can be configured in Z-Wave sensor network, if Z-Wave certified controller features remote access, you can now control your device from your mobile phone devices. And get summary data for daily/month power or energy used for this load while installed an App on your mobile. Manual On/Off by push button on front. The outlet has maximum load for 600W Incandescent or 1200W resistive. |
Brand | show home |
Product Identifier | ZW98 |
OEM Version | HW: 1 FW: 1.02:ERROR:ERROR:ERROR:ERROR |
Hardware Platform | ZM5202 |
Z-Wave Version | 6.51.06 |
Library Type | SLAVE_ROUTING |
Device Type | On/Off Power Switch |
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
Manufacturer ID | 0x015D |
Product Type ID | 0x0226 |
Product ID | 0x621C |
User Icon | 0x0700 |
Installer Icon | 0x0701 |
Frequency Plans | US: 916.00MHz, 908.40MHz |
Categories | Energy Meters, All Lighting Devices, On/Off Switches/Devices, Lighting Accessories |
Countries / Regions | United States of America |
Supported Command Classes | |
Documents | |
Features | |
Association Groups | |
Texts | |
Supported / Controlled Meter Types | |
Supports NWI | Yes |
Supports Explorer Frames | Yes |
