Certification Number | ZC10-16055074 |
|---|

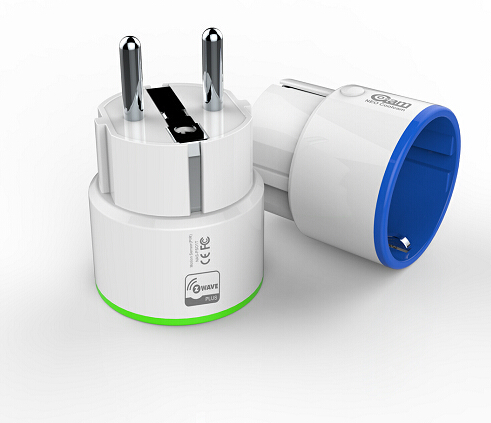

Name | Smart Power Plug |
|---|
Short Description | Smart power plug can control the on/off of electric appliance on mobile app. detect the current, voltage, accumulated voltage and offer overload protection. |
|---|
Long Description | This product can be included and operated in any Z‐Wave network with other Z‐Wave certified devices from other manufacturers and/or other applications. All non‐battery operated nodes within the network will act as repeaters regardless of vendor to increase reliability of the network.
In the front casing, there is button that is used to carry out include, exclude or reset factory default settings on PCB Board.
When power is first supplied, the LED will flash on and off with yellow alternately every 1 second intervals within 5 seconds if the detector has not been added a Z‐Wave network, otherwise the LED will flash on and off 5 times with cyan alternately every 300 millisecond. Please get familiar with the terms below before starting the operations.
This Plug has function that remembers the relay states, the plug will turn on after power up next time if the plug is turn on before the power cut‐off. |
|---|
Brand | Coolcam |
|---|
Product Identifier | NAS-WR01Z |
|---|
OEM Version | HW: 65 FW: 3.70 |
|---|
Hardware Platform | ZM5202 |
|---|
Z-Wave Version | 6.51.06 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | On/Off Power Switch |
|---|
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
|---|
Manufacturer ID | 0x0258 |
|---|
Product Type ID | 0x0003 |
|---|
Product ID | 0x1087 |
|---|
User Icon | 0x0700 |
|---|
Installer Icon | 0x0700 |
|---|
Frequency Plans | EU: 869.85MHz, 868.40MHz |
|---|
Categories | Energy Meters, All Lighting Devices, On/Off Switches/Devices |
|---|
Countries / Regions | European Union |
|---|
Controlled Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_BASIC | Basic | 0x20 | 1 |
|
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Features | Feature | Values |
|---|
Color | | Firmware Updatable | Value |
|---|
Updatable by Manufacturer |
| Switch Load Capacity Volt-Ampere | | Switch Type | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
2 | 5 | 0 | GROUP 2 allows for sending control commands to associated devices such as Siren, relay module, lighting, etc. If current load is over the max current defined in parameter #3, the Plug will send a BASIC_SET (0xFF) to associated devices. When current load is normal, plug will send a BASIC_SET (0x00) to associated devices. This Group Support:
BASIC_SET | 3 | 5 | 0 | GROUP 3 allows for Send Notification to associated devices in this group. This Group Support: NOTIFICATION_REPORT_V4 | 1 | 5 | 0 | GROUP 1 is lifeline service that assigned to plug status – ON/OFF. It enables the Plug to send reports and readings to Z‐Wave Controller or Z‐Wave Gateway. This Group Support:
NOTIFICATION_REPORT_V4 METER_REPORT_V4 SWITCH_BINARY_REPORT DEVICE_RESET_LOCALLY_NOTIFICATION |
|
|---|
Texts | ID | Description | Value |
|---|
1 | Inclusion | Add the Device (Smart Plug) to Z‐Wave Network
1.Make sure the sensor is powered.
2.Set Z‐Wave controller or Z‐Wave gateway into inclusion mode (Refer to the controller or gateway operating manual)
3.Press the button three times within 1.5 second, the device will enter inclusion mode. And the LED will flash on and off with green alternately five times within 2 seconds. | 2 | Exclusion | Delete the Device (Smart Plug) from Z‐Wave Network
1.Make sure the sensor is powered.
2.Set Z‐Wave controller or Z‐Wave gateway into exclusion mode (Refer to the controller or gateway operating manual)
3.Press the button three times within 1.5 second, the device will enter exclusion mode. And the LED will flash on and off with yellow alternately five times within 2 seconds. | 5 | Factory Reset | Note: to use the reset procedure only when the primary controller is missing or inoperable.
Restore the Device (Smart Plug) to Factory Default Settings
Reset procedure will delete all information on the Z‐Wave network and Z‐Wave controller or Z‐Wave Gateway, and restore the sensor to factory default settings.
1.Make sure the sensor is powered.
2.Press and hold the button more than 10 seconds until the LED blink with red color.
3.Release the button. |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
