Product Recognition
Certification Number	ZC10-16055064

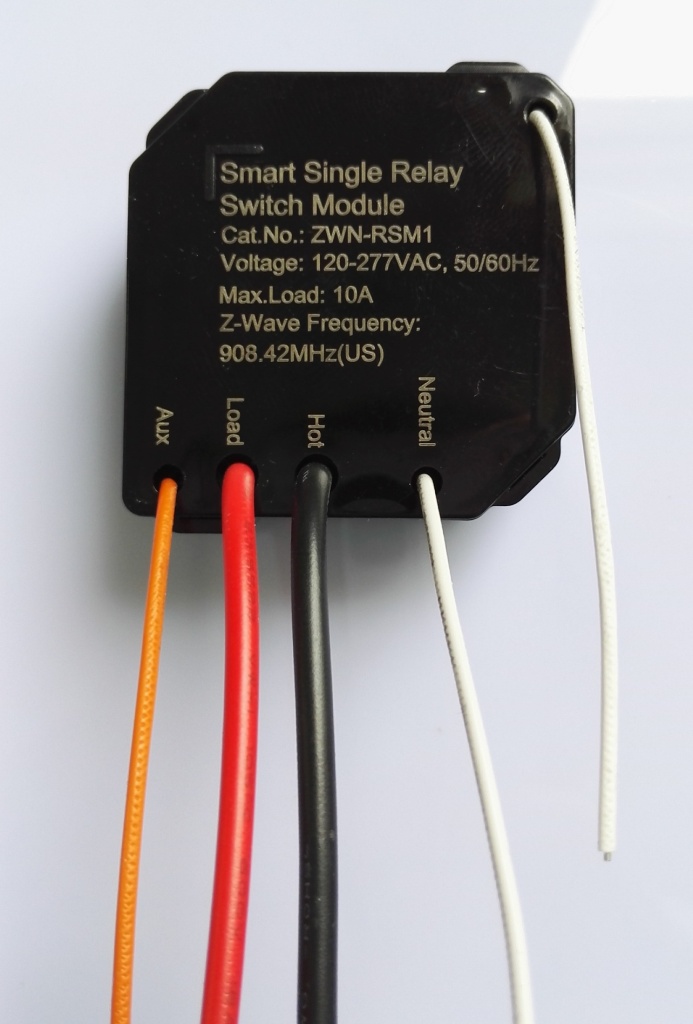

Name	Smart Single Relay Switch Module
Short Description	Smart Single Relay ON/OFF Switch Module
Long Description	Z-Wave unifies all your home electronics into an integrated wireless network and helps them talk to each other. It can be added to the network,and making your home electronics fully compatible. The ZWN-RSM1 Switch Module is a component of lighting control system, it can’t be used separately but should turn an existing switch into a Z-Wave switch. This ZWN-RSM1 module is a Z-Wave enabled device and fully interoperable with other Z-Wave certified device from other manufacturers and/or other applications. In a Z-Wave network, each device is designed to act as a wireless repeater. Once the ZWN-RSM1 module is installed and setup with in your wall, it will retransmit the RF signal from one device to another until the intended device is reached. This ensures that the signal is received by its intended destination by routing the signal around obstacles and radio dead spots.
Brand	Enerwave Green Automation
Product Identifier	ZWN-RSM1
OEM Version	HW: 1 FW: 5.10
Hardware Platform	ZM5202
Z-Wave Version	6.51.07
Library Type	SLAVE_ROUTING
Device Type	On/Off Power Switch
Role Type	ROLE_TYPE_SLAVE_ALWAYS_ON
Manufacturer ID	0x011A
Product Type ID	0x0111
Product ID	0x0605
User Icon	0x0700
Installer Icon	0x0700
Frequency Plans	US: 916.00MHz, 908.40MHz
Categories	All Lighting Devices, On/Off Switches/Devices
Countries / Regions	United States of America
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual ZWN-RSM1(20160506).pdf
Features	Feature Values Switch Type Value Toggle
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 2 5 0 StatusReport: Send basic report 1 1 0 Lifeline: Send device reset locally notification
Texts	ID Description Value 2 Exclusion When the controller is in remove mode, and once program button is pressed and released, or Flick 3 times of the connected switch in 1.5S, will also set the ZWN-RSM1 module enter into learn mode and then the controller will verify the remove. 1 Inclusion When the controller is in add mode, and once program button is pressed and released, or Flick 3 times of the connected switch in 1.5S, will also set the ZWN-RSM1 module enter into learn mode and then the controller will verify the add. 5 Factory Reset Once program button is pressed and hold for 10 second, the device will send a device reset locally notification to controller. Then clear all of information for the network, and restore factory defaults, and reset the module. Use this procedure only in the event that the network primary controller is missing or otherwise inoperable.
Supports NWI	Yes
Supports Explorer Frames	Yes
