Product Recognition | |
|---|
Certification Number | ZC10-16095242 |
|---|

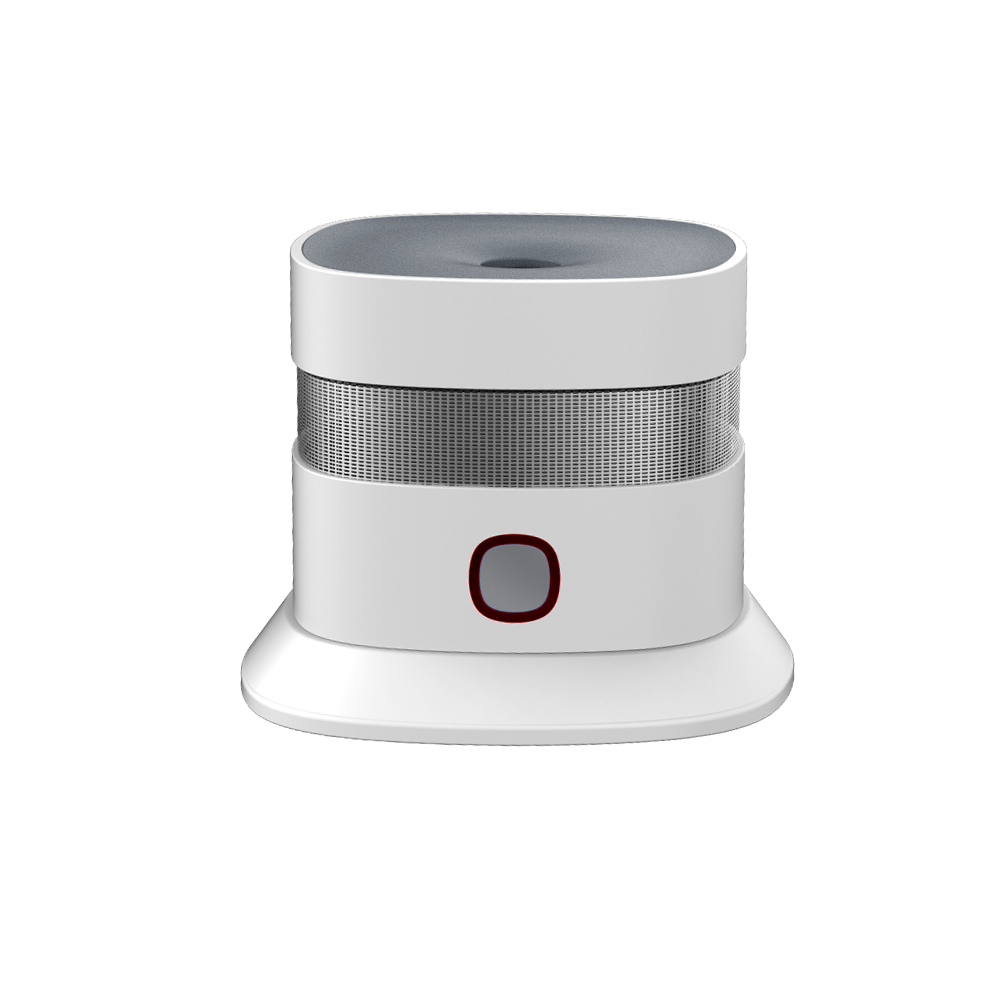

Name | Smart Smoke Sensor |
|---|
Short Description | The smart smoke Sensor adapts Z-Wave wireless communication technology to send an alarm notification to your gateway and sound an alarm to alert of smoke producing in the home. |
|---|
Long Description | The smart smoke sensor detects smoke, and sends an alarm signals to alert of danger. When the smart smoke sensor detects smoke, it will send an alarm notification to your gateway through wireless Z-Wave communication protocol. Then the gateway will send the notification to the server, the server interprets the signal and transfers the signal to users' APP. The smart smoke sensor has high stability and sensitivity, which will alert house of fire effectively. |
|---|
Brand | HEIMAN |
|---|
Product Identifier | HS1SA-Z |
|---|
OEM Version | HW: 255 FW: 1.10 |
|---|
Hardware Platform | ZM5202 |
|---|
Z-Wave Version | 6.51.08 |
|---|
Library Type | SLAVE_ROUTING |
|---|
Device Type | Notification Sensor |
|---|
Role Type | ROLE_TYPE_SLAVE_SLEEPING_REPORTING |
|---|
Manufacturer ID | 0x0260 |
|---|
Product Type ID | 0x8002 |
|---|
Product ID | 0x1000 |
|---|
User Icon | 0C01 |
|---|
Installer Icon | 0C01 |
|---|
Frequency Plans | EU: 869.85MHz, 868.40MHz |
|---|
Categories | Sensors, Security Add-Ons |
|---|
Countries / Regions | European Union |
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Features | Feature | Values |
|---|
Battery Quantity | | Battery Type | | Color | | Communications Connections | Value |
|---|
Ethernet (Wireless/WiFi) |
| Communications Protocol | | Firmware Updatable | | IP (Ingress Protection) Rated | | Switch Load Capacity Current | | Switch Load Capacity Volt-Ampere | | Switch Load Capacity Watts | | Outdoor Use | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
1 | 1 | 0 | Association group 1: Lifeline association group
Include command classes: Battery report, Notification report, and Device Reset Locally notification, Binary report. | 2 | 5 | 0 | ▶ Association group 2: Root Device group(Binary Sensor)
Binary Sensor Command Class: Compatible with 300 series
1-Binary Sensor reports status of smoke or no smoke via Lifeline.
2-When the sensor detects status change between smoke and no smoke, the device will be triggered. | 3 | 5 | 0 | ▶Association group 3: Root Device group(Notification)
1-Notification reports reports status of detect smoke or no smoke via Lifeline.
2-When the sensor detects status change between smoke and no smoke, the device will be triggered. |
|
|---|
Texts | ID | Description | Value |
|---|
1 | Inclusion | - Click [Add] icon in Z-Wave PC Controller Program.
- Press the Net_Button 3 times within 1.5s, Green LED is Blinking 3 times within 1 second.
- If Inclusion Process is successful, Green led will turn off. | 2 | Exclusion | - Click [Remove] icon in Z-Wave PC Controller Program
- Press the Net_Button 3 times within 1.5s
- If Exclusion Process is successful, Green led is Blinking 6 times, then turn off. | 5 | Factory Reset | -Long press Net_Button while installing batteries in HS1SA-Z.
- Device Reset Locally notification is Transmitted.
-Please use this procedure only when the network primary controller is missing or otherwise inoperable. | 4 | Device Wake-Up | - Wake up Notification is transmitted every 24 hours by default.
- Wake up Notification is transmitted after Notification Report is Transmitted |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
