Product Recognition

Certification Number

ZC10-17045544

Name

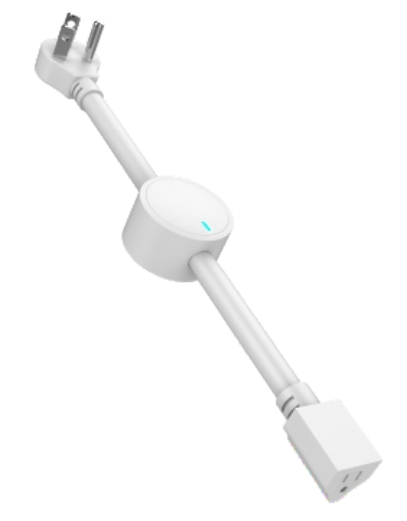

Smart Switch

Short Description

Smart Switch is a Z-Wave Switch module specifically used to enable Z-Wave command and control (on/off) of any plug-in tool.

Long Description

Smart Switch is a Z-Wave Switch module specifically used to enable Z-Wave command and control (on/off) of any plug-in tool. It can report wattage consumption or kWh energy usage.

Brand

Hank

Product Identifier

HKZW-SW02

OEM Version

HW: 1 FW: 1.00

Hardware Platform

ZM5101

Z-Wave Version

6.51.09

Library Type

SLAVE_ENHANCED_232

Device Type

On/Off Power Switch

Role Type

ROLE_TYPE_SLAVE_ALWAYS_ON

Manufacturer ID

0x0208

Product Type ID

0x0101

Product ID

0x000D

User Icon

0x0700

Installer Icon

0x0700

Frequency Plans

US: 916.00MHz, 908.40MHz

Categories

Energy Meters, All Lighting Devices, On/Off Switches/Devices

Countries / Regions

United States of America

Supported Command Classes

Identifier	Name	Key	Version
COMMAND_CLASS_SCENE_ACTUATOR_CONF	Scene Actuator Conf	0x2C	1
COMMAND_CLASS_POWERLEVEL	Powerlevel	0x73	1
COMMAND_CLASS_SWITCH_ALL	Switch All	0x27	1
COMMAND_CLASS_SWITCH_BINARY	Switch Binary	0x25	1
COMMAND_CLASS_BASIC	Basic	0x20	1
COMMAND_CLASS_CONFIGURATION	Configuration	0x70	1
COMMAND_CLASS_SECURITY	Security S0	0x98	1
COMMAND_CLASS_VERSION_V2	Version V2	0x86	2
COMMAND_CLASS_DEVICE_RESET_LOCALLY	Device Reset Locally	0x5A	1
COMMAND_CLASS_ZWAVEPLUS_INFO_V2	Z-Wave Plus Info V2	0x5E	2
COMMAND_CLASS_ASSOCIATION_V2	Association V2	0x85	2
COMMAND_CLASS_METER_V3	Meter V3	0x32	3
COMMAND_CLASS_ASSOCIATION_GRP_INFO	Association Group Info	0x59	1
COMMAND_CLASS_SCENE_ACTIVATION	Scene Activation	0x2B	1
COMMAND_CLASS_FIRMWARE_UPDATE_MD_V2	Firmware Update Meta-Data V2	0x7A	2
COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2	Manufacturer Specific V2	0x72	2

Documents

Category	Description	File
Manual_Primary_Lang	Product or Owner's Manual	HKZW-SW02 MANUAL.pdf

Features

Feature

Values

Color

Value
White

Firmware Updatable

Value
Updatable by Consumer by RF

Switch Load Capacity Watts

Value
1800

Electric Load Type

Value
Incandescent
MLV (Magnetic)
LED
Inductive (e.g. Motor)

Supported Meter Type

Value
Electric Energy

Association Groups

Group Number	Maximum Nodes Supported	End Point ID	Description
1	5	0	SW02 will send the following commands to lifeline group. 1. Basic Report. 2. Meter Report. 3.Device Reset Locally

Configuration Parameters

Parameter Number

Name

Description

Format

Size

Min Value

Max Value

Default Value

Parameter Values

151

Threshold of power report

Power threshold to be interpreted, when the change value of load power exceeds the setting threshold, the Smart Switch will send meter report to association device (Group Lifeline).

From	To	Description
0	0	The function is disabled.
1	65535	The threshold value

152

Percentage threshold of power report

Power percentage threshold to be interpreted, when change value of the load power exceeds the setting threshold, the Smart Switch will send meter report to association device (Group Lifeline).

From	To	Description
0	0	The function is disabled.
1	255	The threshold value

170

Reset parameter No.171 and 172

Parameter NO.171 and 172 will be restored to default settings.

From	To	Description
85	85	Parameter NO.171 and 172 will be restored to default settings.

172

Energy report frequency

The interval of sending energy report to association device (Group Lifeline).

300

From	To	Description
0	0	The function is disabled.
5	2678400	The interval time of energy report

173

Voltage report frequency

The interval of sending voltage report to association device (Group Lifeline).

From	To	Description
0	0	The function is disabled.
5	2678400	The interval time of voltage report

174

Electricity report frequency

The interval of sending electricity report to association device (Group Lifeline).

From	To	Description
0	0	The function is disabled.
5	2678400	The interval time of electricity report

Notification when Load status change

Smart Switch can send notifications to association device (Group Lifeline) when state of Smart Switch’s load change.

From	To	Description
0	0	The function is disabled.
1	1	Send Basic report.
2	2	Send Basic report only when Load condition is not changed by Z-WAVE Command.

Texts

ID	Description	Value
1	Inclusion	Add for inclusion(non-security) 1. Set the Z-Wave network main controller into learning mode. 2. Power up smart switch. 3. RGB LED will blink in blue for less than 5 seconds, and then keep on for 3 seconds to indicate that the add for inclusion is successful. RGB LED will be in power indication mode after it is included into Z-Wave network. Add for inclusion(security): 1. Set the Z-Wave network main controller into learning mode. 2. Press Z-button for more than 3 seconds. 3. RGB LED will blink in green for less than 5 seconds, and then keep on for 3 seconds to indicate that the add for inclusion is successful. RGB LED will be in power indication mode after it is included into Z-Wave network.
2	Exclusion	Remove for exclusion: 1. Set the Z-Wave network main controller into removing mode. 2. Short press Z-button thrice (within 1 second). 3. RGB LED will blink in orange for less than 5 seconds, and then keep on for 3 seconds to indicate that the remove for exclusion is successful. RGB LED will be in power indication mode after it is removed from Z-Wave network.
5	Factory Reset	Press and hold for more than 20 seconds. RGB LED will keep on for 3 seconds in yellow and Smart switch will send Device_Reset_Locally” to the main controller and exclude from the Z-Wave network, this procedure will reset Smart switch to factory default. Please use this reset procedure only when the primary controller is missing or inoperable.

Supported / Controlled Meter Types

Meter Type	Rate Type	Description
Electric meter	Import	Electric Meter Consumption

Supports NWI

Yes

Supports Explorer Frames

Yes
