Product Recognition

Certification Number

ZC10-15080004

Name

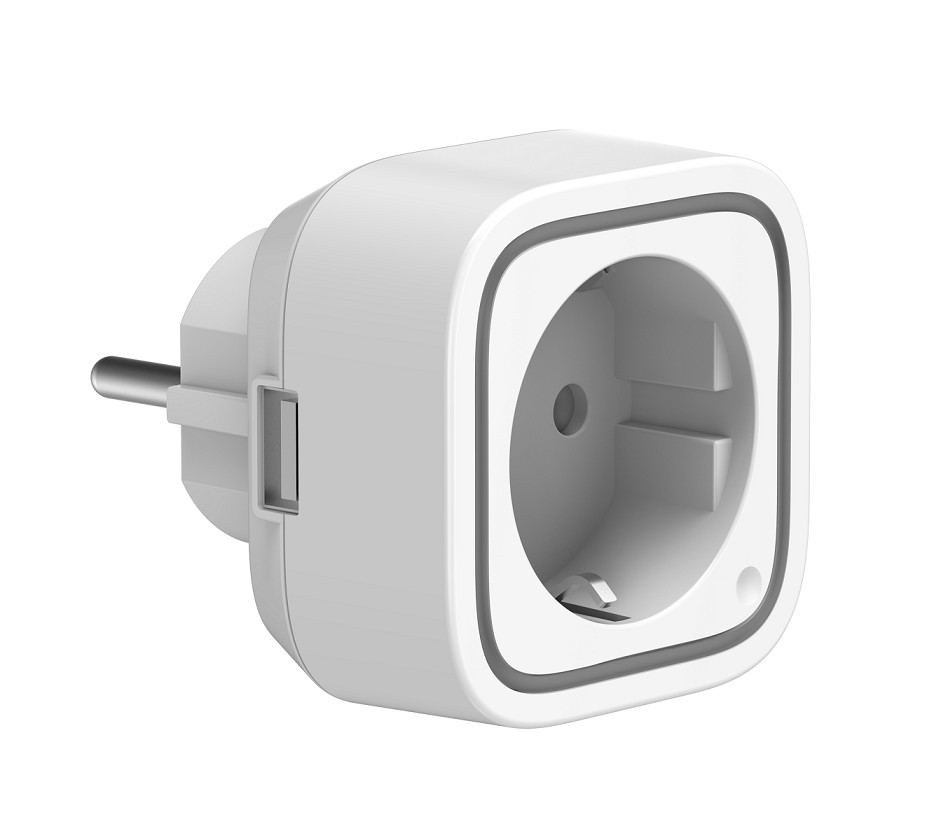

Smart Switch 6

Short Description

Smart Switch 6 is a plug-in on/off switch module that also provides energy metering.

Long Description

Aeotec Smart Switch 6 is a low-cost Z-Wave Switch plug-in module specifically used to enable Z-Wave command and control (on/off) of any plug-in tool. It can report immediate wattage consumption or kWh energy usage over a period of time. In the event of power failure, non-volatile memory retains all programmed information relating to the unit’s operating status. Its surface has a Smart RGB LED, which can be used for indicating the output load status or strength of the wireless signal. You can configure its indication colour according to your favour. The Smart Switch 6 is also a security Z-wave device and supports Over The Air (OTA) feature for the products firmware upgrade.

Brand

Aeotec

Product Identifier

ZW096-C16

OEM Version

HW: 60 FW: 1

Hardware Platform

ZM5101

Z-Wave Version

6.51.06

Library Type

SLAVE_ENHANCED_232

Device Type

On/Off Power Switch

Role Type

ROLE_TYPE_SLAVE_ALWAYS_ON

Manufacturer ID

0x0086

Product Type ID

0x0003

Product ID

0x0060

Frequency Plans

EU: 869.85MHz, 868.40MHz

Categories

Energy Meters, All Lighting Devices, On/Off Switches/Devices

Countries / Regions

European Union

Controlled Command Classes

Documents

Association Groups

Configuration Parameters

Parameter Number

Name

Description

Format

Size

Min Value

Max Value

Default Value

Parameter Values

252

Enable/Disable Lock Configuration

This parameter is used to enable/disable Lock all configuration parameters. (0 =disable, 1 = enable)

From	To	Description
0	0	All configuration parameters are configurable.
1	1	All configuration parameters are not configurable (Locked).

254

Device Tag

This parameter is used to save the device tag, which will be written/ assigned in factory/ manufacturer.

From	To	Description
0	32767	Device Tag

255

Reset to default factory setting

This parameter is used to reset product to default factory setting. (There are just 2 values can be used).

From	To	Description
1431655765	1431655765	Reset the product to default factory setting and be excluded from the Z-wave network.
1	1	Resets all configuration parameters to default setting.

Enable/Disable the function of parameter 91 and 92.

This parameter is used to Enable/Disable the function of parameter 91 and 92 (1=Enabled, 0=Disabled).

From	To	Description
0	0	Configuration Parameters 91 and 92 are Disabled
1	1	Configuration Parameters 91 and 92 are Enabled

200

Partner ID

This parameter is used to configure the partner ID. (0== Aeon Labs Standard Product, 1~255== others).

From	To	Description
0	0	Aeon Labs Standard Product
1	255	Partner ID of Partner Product

113

Set the interval time of sending report.

This parameter is used to set the interval time of sending report in Report Group 3. (The unit of time is second).

600

From	To	Description
0	268435456	Interval Seconds

103

To set which report need to be sent.

This parameter is used to configure which reports need to be sent in Report Group 3. The values corresponding to the first four bits of the parameter value may be combined to create different combinations of reports that you wish to have sent. For example, instantaneous Current is the value 2 and instantaneous Watts is the value 4, so setting parameter 103 to a value of 6 will result in both instantaneous Current and instantaneous Watts to be reported. See the full description of the parameter values for other possible settings.

From	To	Description
8	8	Report Accumulated kWh
1	1	Report Instantaneous Voltage
4	4	Report Instantaneous Watts
2	2	Report Instantaneous Current (Amperes)

112

Set the interval time of sending report.

This parameter is used to set the interval time of sending report in Report Group 2. (The unit of time is second).

600

From	To	Description
0	268435456	Interval Seconds

111

Set the interval time of sending report.

This parameter is used to set the interval time of sending report in Report Group 1. (The unit of time is second).

600

From	To	Description
0	268435456	Interval Seconds

Induce an automatic report

This parameter is used to induce an automatic report when the change of the current power is more/less than the threshold in wattage.

From	To	Description
0	32767	The threshold can be set from 0 to 32767 watt.

Induce an automatic report

This parameter is used to induce an automatic report when the change of the current power is more/less than the threshold in percentage.

From	To	Description
0	100	The threshold can be set from 0 to 100 percent.

101

To set which report need to be sent.

This parameter is used to configure which reports need to be sent in Report Group 1. The values corresponding to the first four bits of the parameter value may be combined to create different combinations of reports that you wish to have sent. For example, instantaneous Current is the value 2 and instantaneous Watts is the value 4, so setting parameter 101 to a value of 6 will result in both instantaneous Current and instantaneous Watts to be reported. See the full description of the parameter values for other possible settings.

From	To	Description
4	4	Report Instantaneous Watts
8	8	Report Accumulated kWh
1	1	Report Instantaneous Voltage
2	2	Report Instantaneous Current (Amperes)

102

To set which report need to be sent.

This parameter is used to configure which reports need to be sent in Report Group 2. The values corresponding to the first four bits of the parameter value may be combined to create different combinations of reports that you wish to have sent. For example, instantaneous Current is the value 2 and instantaneous Watts is the value 4, so setting parameter 102 to a value of 6 will result in both instantaneous Current and instantaneous Watts to be reported. See the full description of the parameter values for other possible settings.

From	To	Description
1	1	Report Instantaneous Voltage
2	2	Report Instantaneous Current (Amperes)
4	4	Report Instantaneous Watts
8	8	Report Accumulated kWh

Configure the state of LED

This parameter is used to configure the LED state when the Smart Switch is in Energy mode/Momentary indicate mode/Night light mode.

From	To	Description
0	0	The state of LED will follow with the output load state(Energy mode)
2	2	The state of LED will the same with Night light mode state configured by parameter 83.
1	1	The state of LED will follow with the output load state, but will turn off after 5 seconds if there is no any switch action.(Momentary indicate mode)

Configure the LED indication status when it is in Night light mode

This parameter is used to configure the LED indication status when the current mode is Night light mode.

14524637

From	To	Description
256	65535	Set the indication value of green Led.
0	255	Set the indication value of red Led.
65536	16777215	Set the indication value of blue Led.

Configure the brightness level for the LED indication

This parameter is used to configure the brightness level for the LED indication. Brightness level range is 0 to 100%.

From	To	Description
0	100	Brightness level range is 0 to 100%.

Current Overload Protection

This parameter is used for the overload protection, which means the load will be disconnected after 2 minutes when the current more than 14A.

From	To	Description
0	0	Overload Protection Disabled
1	1	Overload Protection is Enabled

Enable/Disable to send notifications to associated devices to associated devices.

This parameter is used to Enable/Disable to send notifications to associated devices (in Group 1) when the state of Smart Switch Gen5’s load is changed. (0=Send nothing, 1=Send hail CC, 2=Send basic report CC).

From	To	Description
0	0	Send Nothing (Disabled)
1	1	Send HAIL Command
2	2	Send BASIC Report Command

Texts

Supports NWI

Yes

Supports Explorer Frames

Yes
