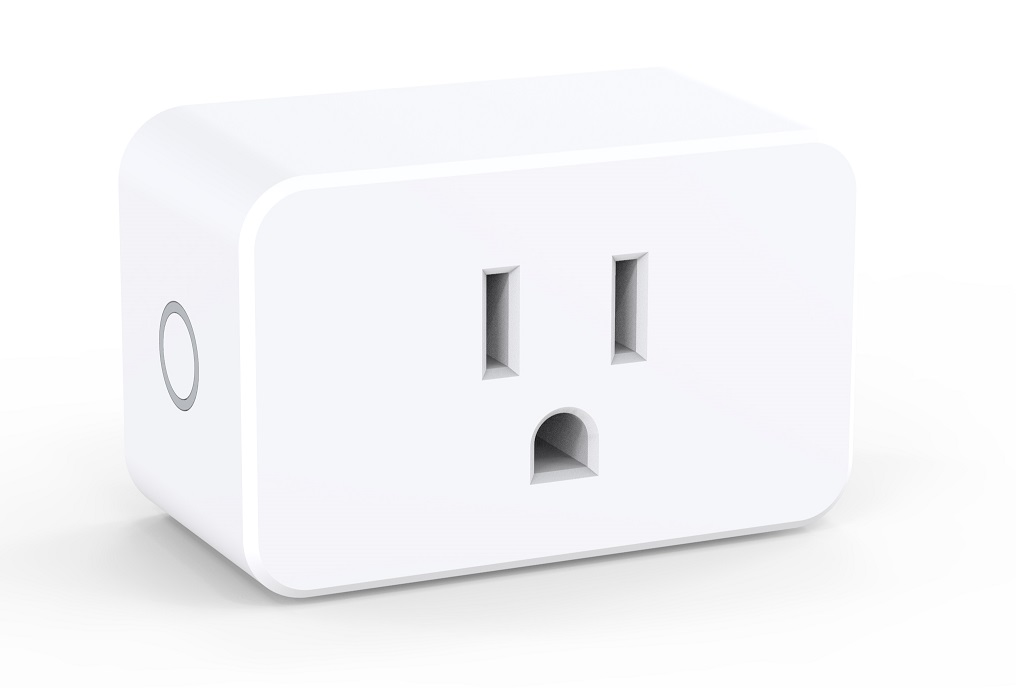

COMMAND_CLASS_CONFIGURATION_V4

Configuration V4

0x70

4

COMMAND_CLASS_SCENE_ACTUATOR_CONF

Scene Actuator Conf

0x2C

1

COMMAND_CLASS_SWITCH_BINARY_V2

Switch Binary V2

0x25

2

COMMAND_CLASS_POWERLEVEL

Powerlevel

0x73

1

COMMAND_CLASS_SWITCH_COLOR_V3

Switch Color V3

0x33

3

COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3

Multi-Channel Association V3

0x8E

3

COMMAND_CLASS_INDICATOR_V3

Indicator V3

0x87

3

COMMAND_CLASS_CLOCK

Clock

0x81

1

COMMAND_CLASS_APPLICATION_STATUS

Application Status

0x22

1

COMMAND_CLASS_SECURITY

Security S0

0x98

1

COMMAND_CLASS_TRANSPORT_SERVICE_V2

Transport Service V2

0x55

2

COMMAND_CLASS_DEVICE_RESET_LOCALLY

Device Reset Locally

0x5A

1

COMMAND_CLASS_ZWAVEPLUS_INFO_V2

Z-Wave Plus Info V2

0x5E

2

COMMAND_CLASS_ASSOCIATION_V2

Association V2

0x85

2

COMMAND_CLASS_FIRMWARE_UPDATE_MD_V5

Firmware Update Meta-Data V5

0x7A

5

COMMAND_CLASS_MULTI_CHANNEL_V4

Multi-Channel V4

0x60

4

COMMAND_CLASS_SWITCH_MULTILEVEL_V4

Switch Multilevel V4

0x26

4

COMMAND_CLASS_ASSOCIATION_GRP_INFO_V3

Association Group Information V3

0x59

3

COMMAND_CLASS_NOTIFICATION_V8

Notification V8

0x71

8

COMMAND_CLASS_BASIC_V2

Basic V2

0x20

2

COMMAND_CLASS_SECURITY_2

Security S2

0x9F

1

COMMAND_CLASS_METER_V5

Meter V5

0x32

5

COMMAND_CLASS_VERSION_V3

Version V3

0x86

3

COMMAND_CLASS_SUPERVISION

Supervision

0x6C

1

COMMAND_CLASS_SCENE_ACTIVATION

Scene Activation

0x2B

1

COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2

Manufacturer Specific V2

0x72

2

Manual_Primary_Lang

Product Manual

Manual_English

Product Manual in English

1

5

0

Lifeline

0x0100

This is the lifeline group. Device Reset Locally: When factory reset. Notification Report (Type=0x08, Event=0x08): When over load detected. Basic Report: When switch state changed. See parameter 42 for more information. Switch Binary Report: When switch state changed. See parameter 42 for more information. Switch Multilevel Report: Issued when multilevel switch value of the indicator light has changed. Switch Color Report: Issued when a color component level of the indicator has changed. Meter Report: Issued periodically according to the parameter 23,24,25,26 or above the threshold. Clock Report: Issued per hour. Indicator Report: Issued when the indicator light changed.

2

5

1

Retransmit

0x0000

Mirror of endpoint 1.

3

5

0

Alert

0x0000

Trigger to send Scene Activation Set to this group when the load wattage above the parameter 6's setting.

1

LED Setting

This parameter is used to change the reaction of LED setting. 0 - Disable LED completely. LED will only be used for network operation indicator, such as inclusion, exclusion, factory reset.

3

1

0

2

2

2

Night Light On Time

This parameter is used to configure the Night Light on time. User can use Color CC to change the Night Light color(default Red). Only useful when parameter 1 is set to 1. RR = Reserved HH = Hours MM = Minutes SS = Seconds Default = 0x00180000 means 6pm

2

4

0

2316633

1572864

4

LED Blink Duration

Set the duration of blink, unit second. 0 - indicates that it is not blinking 1~255 - set the duration

2

1

0

255

0

3

Night Light Off Time

This parameter is used to configure the Night Light off time. Only useful when parameter 1 is set to 1. RR = Reserved HH = Hours MM = Minutes SS = Seconds Default = 0x00060000 means 6am

2

4

0

2316633

393216

6

Send Alert When In Use

Send alert when in use. A Scene Activation Set command will be sent when energy draw is above this setting value. 0 - disable 1~3000 - enable, unit W

2

2

0

3000

100

5

LED Blink Speed

Set amount of blinks per second. i.e. If set to 5, it should blink 5 times per second.

2

1

1

24

5

10

Over-load Protection

Turn off switch when current of load connected bypasses the maximum allowed power regardless of always on setting. Unit W. 0 - disable overload protection 1~1800 - When watt detected above this setting value, the switch will be turned off immediately. And an over-load notification will be sent.

2

2

0

1800

1800

7

Plug Always On

Prevents the plug from being turned off via its button. 0 - the plug will operate as normal and can be turned on or off. 1 - the button on the plug will be disabled for on and off commands, but still work for network inclusion and exclusion. 2 - the plug will ignore any commands to turn it off and it will ignore any use of the button (but still work for network inclusion and exclusion)

3

1

0

2

0

8

Power Out Action

Set the plug’s action in case of power out. 0 - last status 1 - power on 2 - power off

2

1

0

2

0

9

Group3 Scene Id

Set the scene id when Scene Activation Set Command sent through group3. Refer parameter 6 for more information.

2

1

1

255

255

11

Over-voltage Protection

This parameter is used to set the over-voltage protect value, unit V. 0 - disable over-voltage protection 95~255 - When voltage detected above this setting value, the switch will be turned off immediately. And an over-voltage notification will be sent.

2

1

0

255

135

24

kWh Automatic Report Time

Set the automatic report time of kWh. Unit second.

2

2

0

65535

600

23

Watt Automatic Report Time

Set the automatic report time of Watt. Unit second.

2

2

0

65535

600

25

Voltage Automatic Report Time

Set the automatic report time of Voltage. Unit second.

2

2

0

65535

600

41

Automatic On Timer

Acts as auto on after as soon as the switch turns OFF, setting is set in seconds. 0 - no auto on with timer 1~86400 - seconds

2

4

0

86400

0

255

Factory Reset or Initialization

Restore the product to factory settings and remove from the network. 0x55555555 - Restore the product to factory settings and remove from the network. Other - Initialize all configuration parameters to default values.

2

4

0

4294967295

0

42

Report Command Setting

Which report will be sent to lifeline group when the output state is changed. 0 - Send nothing 1 - Send Basic Report 2 - Send Switch Binary Report

3

1

0

2

2

31

Alarm Response

Enabled by Alarm Settings, and determines what the switch does in the case an alarm is triggered. 0 - disable , no reaction to alarm settings 1 - Switch is ON 2 - Switch is OFF 3~255 - Sets rate at which Switch turns ON and OFF in seconds. (i.e. If set to 3, then Switch will turn ON in 0.3 seconds, and then turn OFF in 0.3 seconds in a cycle until user disables the alarm manually. If set to 255, then it will cycle every 25.5 seconds)

2

1

0

255

0

8

Where to find S2 DSK on product

Page 2 in the User Manual，there is a schematic diagram indicating the location of the QR/DSK code.

1

Classic Inclusion

Turn the gateway/ primary controller into inclusion mode, then short press the Action Button on the product one time.

2

Classic Exclusion

Turn the gateway/ primary controller into exclusion mode, then short press the Action Button on the product 2 times.

5

Factory Reset Procedure

Press and hold the Action Button for 15-20s. Note: Please use this procedure only when the network primary controller is missing or otherwise inoperable.

Electric meter

Import

Electric Meter Consumption

Power Management

(Refer to parameters): State idle

Power Management

Over-current status: Over-current detected

Power Management

Over-voltage status: Over-voltage detected

Power Management

Over-load status: Over-load detected
