Product Recognition | |
|---|
Certification Number | ZC10-17055580 |
|---|

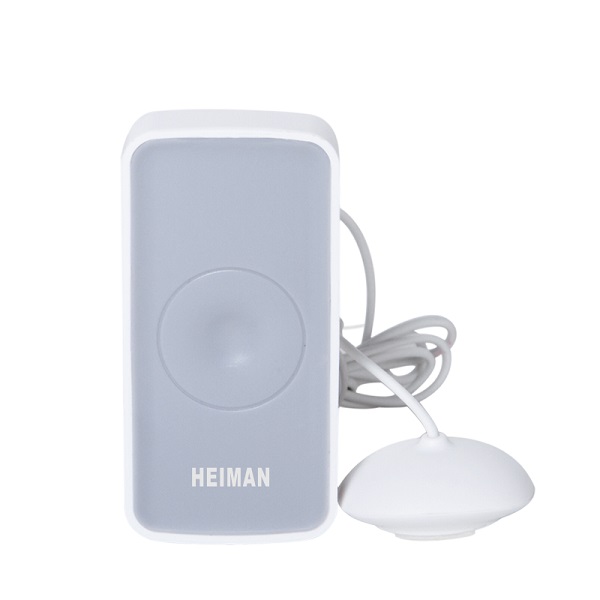

Name | Smart Water Leakage Sensor |
|---|
Short Description | Smart Water leakage Sensor is designed to detect water leakage, it will send notifications to users' mobile phone to remind them of the water leakage. |
|---|
Long Description | Smart Water leakage Sensor is designed to detect water leakage, it will send notifications to users' mobile phone to remind them of the water leakage.The sensor adopts Z-Wave wireless communication protocol with high sensitivity and stability. |
|---|
Brand | HEIMAN |
|---|
Product Identifier | HS1WL-Z |
|---|
OEM Version | HW: 14 FW: 2.00 |
|---|
Hardware Platform | ZM5202 |
|---|
Z-Wave Version | 6.51.09 |
|---|
Library Type | SLAVE_ROUTING |
|---|
Device Type | Notification Sensor |
|---|
Role Type | ROLE_TYPE_SLAVE_SLEEPING_REPORTING |
|---|
Manufacturer ID | 0x0260 |
|---|
Product Type ID | 0x8004 |
|---|
Product ID | 0x1000 |
|---|
User Icon | 0x0C05 |
|---|
Installer Icon | 0x0C05 |
|---|
Frequency Plans | EU: 869.85MHz, 868.40MHz |
|---|
Categories | Sensors |
|---|
Countries / Regions | European Union |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_NOTIFICATION_V7 | Notification V7 | 0x71 | 7 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_BATTERY | Battery | 0x80 | 1 | COMMAND_CLASS_SENSOR_BINARY_V2 | Sensor Binary V2 | 0x30 | 2 | COMMAND_CLASS_VERSION_V2 | Version V2 | 0x86 | 2 | COMMAND_CLASS_WAKE_UP_V2 | Wake Up V2 | 0x84 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Features | Feature | Values |
|---|
Communications Protocol | | Battery Quantity | | IP (Ingress Protection) Rated | | Switch Load Capacity Current | | Switch Load Capacity Volt-Ampere | | Color | | Sensors | | Supported Notification Types | | Battery Type | | Communications Connections | Value |
|---|
Ethernet (Wireless/WiFi) |
|
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
3 | 5 | 0 | ▶Association group 3: Root Device group(Binary Sensor)
Maximum supported nodes are 5.
Binary Sensor Command Class:Compatible with 300 series
1-Binary Sensor reports the removed status of water sensor.
2-When the sensor detects status change of tamper, the device will be triggered.
| 4 | 5 | 0 | ▶Association group 4: Root Device group(Notification)
Maximum supported nodes are 5.
1-Notification reports reports status of detect water or no water via Lifeline.
2-When the sensor detects status change between water and no water, the device will be triggered. .
| 2 | 5 | 0 | ▶ Association group 2: Root Device group(Binary Sensor)
Maximum supported nodes are 5.
Binary Sensor Command Class: Compatible with 300 series
1- Binary Sensor reports status of water or no water via Lifeline.
2- When the sensor detects status change between water and no water, the device will be triggered.
| 5 | 5 | 0 | ▶Association group 5: Root Device group(Notification)
Maximum supported nodes are 5.
1-Binary Sensor reports the removed status of water sensor.
2- When the sensor detects status change of tamper, the device will be triggered.
| 1 | 1 | 0 | Association group 1: Lifeline association group
- Maximum supported node is 1.
Include command classes: Battery report, Notification report, and Device Reset Locally notification, Binary report.
|
|
|---|
Texts | ID | Description | Value |
|---|
2 | Exclusion | - Click [Remove] icon in Z-Wave Controller
- Press the Func_Buttom 3 times within 1.5s
- If Exclusion Process is successful, Green led is Blinking 6 times, then turn off. | 1 | Inclusion | - Click [Add] icon in Z-Wave Controller .
- Press the Func_Buttom 3 times within 1.5s, Green LED is Blinking 3 times within 1 second.
- If Inclusion Process is successful, Green led will turn off. | 5 | Factory Reset | -Long press Func_Buttom while installing batteries in the product.
- Device Reset Locally notification is Transmitted.
-use the reset procedure only when the primary controller is missing or inoperable. | 4 | Device Wake-Up | - Wake up Notification is transmitted every 24 hours by default.
- Wake up Notification is transmitted after Notification Report is Transmitted |
|
|---|
Supported Notification Types | Notification Type | Event / State |
|---|
Water Alarm | (Refer to parameters): State idle |
|
|---|
Supported Multilevel Sensors | Multilevel Sensor Type |
|---|
Water flow |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
