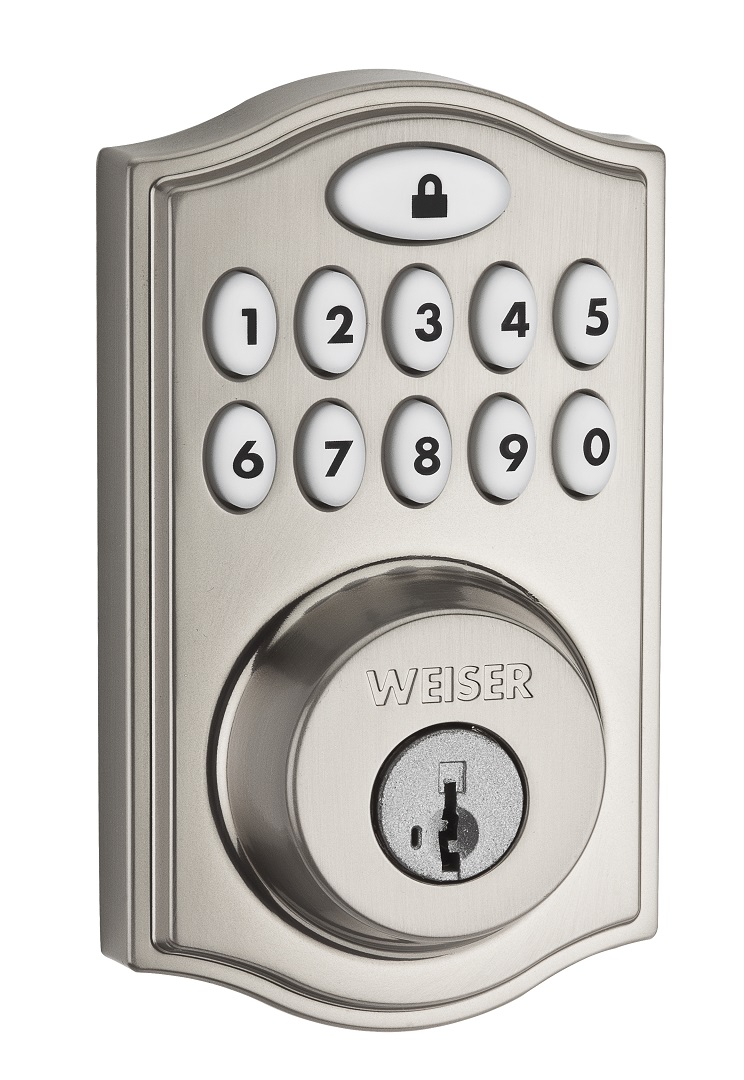

COMMAND_CLASS_POWERLEVEL

Powerlevel

0x73

1

COMMAND_CLASS_USER_CODE

User Code

0x63

1

COMMAND_CLASS_DOOR_LOCK_V2

Door Lock V2

0x62

2

COMMAND_CLASS_BATTERY

Battery

0x80

1

COMMAND_CLASS_TIME_PARAMETERS

Time Parameters

0x8B

1

COMMAND_CLASS_BASIC

Basic

0x20

1

COMMAND_CLASS_CONFIGURATION

Configuration

0x70

1

COMMAND_CLASS_SECURITY

Security S0

0x98

1

COMMAND_CLASS_VERSION_V2

Version V2

0x86

2

COMMAND_CLASS_DEVICE_RESET_LOCALLY

Device Reset Locally

0x5A

1

COMMAND_CLASS_ZWAVEPLUS_INFO_V2

Z-Wave Plus Info V2

0x5E

2

COMMAND_CLASS_ASSOCIATION_V2

Association V2

0x85

2

COMMAND_CLASS_ASSOCIATION_GRP_INFO

Association Group Info

0x59

1

COMMAND_CLASS_DOOR_LOCK_LOGGING

Door Lock Logging

0x4C

1

COMMAND_CLASS_FIRMWARE_UPDATE_MD_V3

Firmware Update Meta-Data V3

0x7A

3

COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2

Manufacturer Specific V2

0x72

2

COMMAND_CLASS_NOTIFICATION_V4

Notification V4

0x71

4

COMMAND_CLASS_SCHEDULE_ENTRY_LOCK_V2

Schedule Entry Lock V2

0x4E

2

COMMAND_CLASS_ANTITHEFT_V2

Anti-Theft V2

0x5D

2

Manual_Primary_Lang

Product or Owner's Manual

Battery Quantity

Battery Type

Communications Protocol

Door Lock Type

Firmware Updatable

1

1

0

Z-Wave Plus Lifeline Supports the following types of unsolicited messages: Battery Report - sends periodic battery reports containing the battery percentage. Door Lock Operation Report - upon power up, this message will be sent to allow the controller to sync up with the current lock status. Notification Report - many notification types will be sent for status and alarms. The following notification types are supported: Access Control (V2), Home Security (V2), and Power Management (V2). Device Reset Locally Notification - this message will be sent to notify the smart home controller that the lock is resetting back to factory defaults and will be leaving the network.

2

5

0

This group will provide all Notification reports as described for the Lifeline. This group allows other controllers, other than the lifeline, to receive these types of unsolicited messages as well.

2

User Code Type for User Code 2

This configuration parameter is used to get or set the type of user for their corresponding user code. By default, all user codes are set to the Owner type unless otherwise specified. The parameter type is associated with the user code location 2. Caution must be used when setting these values. Guests and Workers will require schedules attached to them in order for those types to be assigned.

0

1

0

0

1

5

User Code Type for User Code 5

This configuration parameter is used to get or set the type of user for their corresponding user code. By default, all user codes are set to the Owner type unless otherwise specified. The parameter type is associated with the user code location 5. Caution must be used when setting these values. Guests and Workers will require schedules attached to them in order for those types to be assigned.

0

1

0

0

1

6

User Code Type for User Code 6

This configuration parameter is used to get or set the type of user for their corresponding user code. By default, all user codes are set to the Owner type unless otherwise specified. The parameter type is associated with the user code location 6. Caution must be used when setting these values. Guests and Workers will require schedules attached to them in order for those types to be assigned.

0

1

0

0

1

7

User Code Type for User Code 7

This configuration parameter is used to get or set the type of user for their corresponding user code. By default, all user codes are set to the Owner type unless otherwise specified. The parameter type is associated with the user code location 7. Caution must be used when setting these values. Guests and Workers will require schedules attached to them in order for those types to be assigned.

0

1

0

0

1

8

User Code Type for User Code 8

This configuration parameter is used to get or set the type of user for their corresponding user code. By default, all user codes are set to the Owner type unless otherwise specified. The parameter type is associated with the user code location 8. Caution must be used when setting these values. Guests and Workers will require schedules attached to them in order for those types to be assigned.

0

1

0

0

1

9

User Code Type for User Code 9

This configuration parameter is used to get or set the type of user for their corresponding user code. By default, all user codes are set to the Owner type unless otherwise specified. The parameter type is associated with the user code location 9. Caution must be used when setting these values. Guests and Workers will require schedules attached to them in order for those types to be assigned.

0

1

0

0

1

10

User Code Type for User Code 10

This configuration parameter is used to get or set the type of user for their corresponding user code. By default, all user codes are set to the Owner type unless otherwise specified. The parameter type is associated with the user code location 10. Caution must be used when setting these values. Guests and Workers will require schedules attached to them in order for those types to be assigned.

0

1

0

0

1

11

User Code Type for User Code 11

This configuration parameter is used to get or set the type of user for their corresponding user code. By default, all user codes are set to the Owner type unless otherwise specified. The parameter type is associated with the user code location 11. Caution must be used when setting these values. Guests and Workers will require schedules attached to them in order for those types to be assigned.

0

1

0

0

1

17

User Code Type for User Code 17

This configuration parameter is used to get or set the type of user for their corresponding user code. By default, all user codes are set to the Owner type unless otherwise specified. The parameter type is associated with the user code location 17. Caution must be used when setting these values. Guests and Workers will require schedules attached to them in order for those types to be assigned.

0

1

0

0

1

4

User Code Type for User Code 4

This configuration parameter is used to get or set the type of user for their corresponding user code. By default, all user codes are set to the Owner type unless otherwise specified. The parameter type is associated with the user code location 4. Caution must be used when setting these values. Guests and Workers will require schedules attached to them in order for those types to be assigned.

0

1

0

0

1

23

User Code Type for User Code 23

This configuration parameter is used to get or set the type of user for their corresponding user code. By default, all user codes are set to the Owner type unless otherwise specified. The parameter type is associated with the user code location 23. Caution must be used when setting these values. Guests and Workers will require schedules attached to them in order for those types to be assigned.

0

1

0

0

1

24

User Code Type for User Code 24

This configuration parameter is used to get or set the type of user for their corresponding user code. By default, all user codes are set to the Owner type unless otherwise specified. The parameter type is associated with the user code location 24. Caution must be used when setting these values. Guests and Workers will require schedules attached to them in order for those types to be assigned.

0

1

0

0

1

25

User Code Type for User Code 25

This configuration parameter is used to get or set the type of user for their corresponding user code. By default, all user codes are set to the Owner type unless otherwise specified. The parameter type is associated with the user code location 25. Caution must be used when setting these values. Guests and Workers will require schedules attached to them in order for those types to be assigned.

0

1

0

0

1

31

Dipswitch settings

This is a one byte read only bit mask that returns the state of the user accessible dipswitches on the rear panel of the door lock. 0x01: Lock Status LED (1: enabled, 0: disabled) 0x02: Autolock setting (1: enabled, 0: disabled) 0x04: Buzzer (1: enabled, 0: disabled)

0

1

0

0

11

1

User Code Type for User Code 1

This configuration parameter is used to get or set the type of user for their corresponding user code. By default, all user codes are set to the Owner type unless otherwise specified. The parameter type is associated with the user code location 1. Caution must be used when setting these values. Guests and Workers will require schedules attached to them in order for those types to be assigned.

0

1

0

0

1

3

User Code Type for User Code 3

This configuration parameter is used to get or set the type of user for their corresponding user code. By default, all user codes are set to the Owner type unless otherwise specified. The parameter type is associated with the user code location 3. Caution must be used when setting these values. Guests and Workers will require schedules attached to them in order for those types to be assigned.

0

1

0

0

1

5

Factory Reset

A factory reset will delete all user codes associated with the lock and will remove itself from your smart home system. Please only perform a factory reset when the primary controller is missing or inoperable. To perform a factory reset, please perform the following: 1. Remove the battery pack 2. Press and HOLD the Program button while reinserting the battery pack. 3. Keep holding the button for 30 seconds until the lock beeps and the status LED flashes red. 4. Press the Program button once more. The status LED will flash green and red several times. 5. After a few seconds, the lock will initiate the door handing process.

4

Device Wake-Up

Even though the lock is sleeping, all buttons are active and can be used to initiate any lock activity. For the RF side, it will wake up every 1 second to check if there are any requests from your smart home controller.

1

Inclusion

Initiate the process to add the lock to your system at your smart home controller. When prompted by your smart home system to add the lock, press button “A” on the lock interior one time. The red LED will illuminate when the lock enters Add Mode. Please allow time for the controller to add the lock to your system.

2

Exclusion

Follow your smart home system’s instructions to remove the lock from the network. When prompted by the system, press button A” on the lock interior once. The red LED will illuminate when the lock enters Remove mode.
