Product Recognition
Certification Number	ZC10-17045552

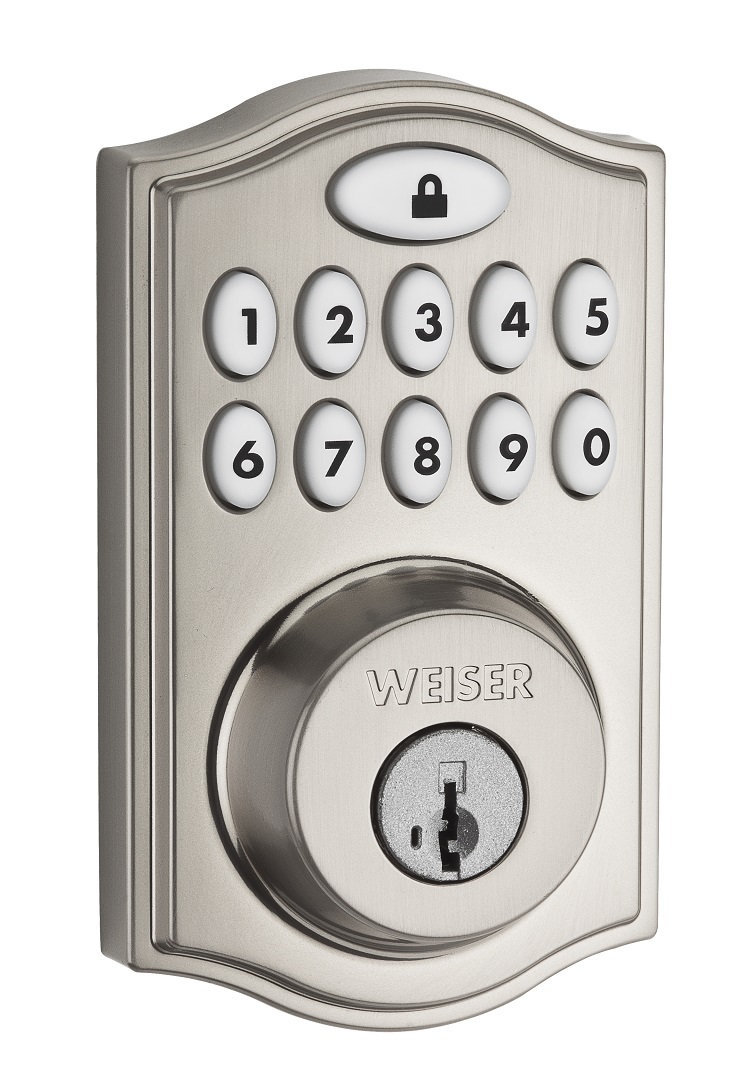

Name	SmartCode 10 Touchpad Electronic Deadbolt
Short Description	SmartCode 10 Touchpad Electronic Deadbolt
Long Description	Weiser introduces the SmartCode™ 10 Touchpad Electronic Deadbolt with Z-Wave. 10 digit backlit keypad with one touch locking Dramatically reduced, all-metal interior 30 user codes plus master code BHMA grade 2 certified 20 minute fire rating - UL certified Full 128-bit encryption security SmartKey: Re-key the lock in seconds
Brand	Weiser
Product Identifier	GED1800
OEM Version	HW: 4 FW: 4.10:64.13
Hardware Platform	ZM5101
Z-Wave Version	6.51.08
Library Type	SLAVE_ENHANCED_232
Device Type	Door Lock - Keypad
Role Type	ROLE_TYPE_SLAVE_SLEEPING_LISTENING
Manufacturer ID	0x0090
Product Type ID	0x0006
Product ID	0x0440
User Icon	0x0300
Installer Icon	0x0300
Frequency Plans	US: 916.00MHz, 908.40MHz
Categories	Locks
Countries / Regions	United States of America
Supported Command Classes	Identifier Name Key Version COMMAND_CLASS_POWERLEVEL Powerlevel 0x73 1 COMMAND_CLASS_USER_CODE User Code 0x63 1 COMMAND_CLASS_DOOR_LOCK_V2 Door Lock V2 0x62 2 COMMAND_CLASS_BATTERY Battery 0x80 1 COMMAND_CLASS_TIME_PARAMETERS Time Parameters 0x8B 1 COMMAND_CLASS_CONFIGURATION Configuration 0x70 1 COMMAND_CLASS_SECURITY Security S0 0x98 1 COMMAND_CLASS_VERSION_V2 Version V2 0x86 2 COMMAND_CLASS_DEVICE_RESET_LOCALLY Device Reset Locally 0x5A 1 COMMAND_CLASS_ZWAVEPLUS_INFO_V2 Z-Wave Plus Info V2 0x5E 2 COMMAND_CLASS_ASSOCIATION_V2 Association V2 0x85 2 COMMAND_CLASS_ASSOCIATION_GRP_INFO Association Group Info 0x59 1 COMMAND_CLASS_DOOR_LOCK_LOGGING Door Lock Logging 0x4C 1 COMMAND_CLASS_FIRMWARE_UPDATE_MD_V3 Firmware Update Meta-Data V3 0x7A 3 COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 Manufacturer Specific V2 0x72 2 COMMAND_CLASS_NOTIFICATION_V4 Notification V4 0x71 4 COMMAND_CLASS_SCHEDULE_ENTRY_LOCK_V2 Schedule Entry Lock V2 0x4E 2 COMMAND_CLASS_ANTITHEFT_V2 Anti-Theft V2 0x5D 2
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual Install Guide GED1800 04112017.pdf
Features	Feature Values Battery Quantity Value 4 Battery Type Value AA Communications Protocol Value Z-Wave Serial API Door Lock Type Value Deadbolt Firmware Updatable Value Updatable by Consumer by RF Supported Notification Types Value Access Control Home Security Power Management
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 1 0 Z-Wave Plus Lifeline Supports the following types of unsolicited messages: Battery Report - sends periodic battery reports containing the battery percentage. Door Lock Operation Report - upon power up, this message will be sent to allow the controller to sync up with the current lock status. Notification Report - many notification types will be sent for status and alarms. The following notification types are supported: Access Control (V2), Home Security (V2), and Power Management (V2). Device Reset Locally Notification - this message will be sent to notify the smart home controller that the lock is resetting back to factory defaults and will be leaving the network. 2 5 0 This group will provide all Notification reports as described for the Lifeline. This group allows other controllers, other than the lifeline, to receive these types of unsolicited messages as well.
Configuration Parameters	Parameter Number Name Description Format Size Min Value Max Value Default Value Parameter Values 10 User Code Type for User Code 10 This configuration parameter is used to get or set the type of user for their corresponding user code. By default, all user codes are set to the Owner type unless otherwise specified. The parameter type is associated with the user code location 10. Caution must be used when setting these values. Guests and Workers will require schedules attached to them in order for those types to be assigned. 0 1 0 0 1 From To Description 1 1 Owner 3 3 Guest 4 4 Worker 11 User Code Type for User Code 11 This configuration parameter is used to get or set the type of user for their corresponding user code. By default, all user codes are set to the Owner type unless otherwise specified. The parameter type is associated with the user code location 11. Caution must be used when setting these values. Guests and Workers will require schedules attached to them in order for those types to be assigned. 0 1 0 0 1 From To Description 3 3 Guest 4 4 Worker 1 1 Owner 2 User Code Type for User Code 2 This configuration parameter is used to get or set the type of user for their corresponding user code. By default, all user codes are set to the Owner type unless otherwise specified. The parameter type is associated with the user code location 2. Caution must be used when setting these values. Guests and Workers will require schedules attached to them in order for those types to be assigned. 0 1 0 0 1 From To Description 1 1 Owner 3 3 Guest 4 4 Worker 3 User Code Type for User Code 3 This configuration parameter is used to get or set the type of user for their corresponding user code. By default, all user codes are set to the Owner type unless otherwise specified. The parameter type is associated with the user code location 3. Caution must be used when setting these values. Guests and Workers will require schedules attached to them in order for those types to be assigned. 0 1 0 0 1 From To Description 1 1 Owner 3 3 Guest 4 4 Worker 4 User Code Type for User Code 4 This configuration parameter is used to get or set the type of user for their corresponding user code. By default, all user codes are set to the Owner type unless otherwise specified. The parameter type is associated with the user code location 4. Caution must be used when setting these values. Guests and Workers will require schedules attached to them in order for those types to be assigned. 0 1 0 0 1 From To Description 1 1 Owner 3 3 Guest 4 4 Worker 5 User Code Type for User Code 5 This configuration parameter is used to get or set the type of user for their corresponding user code. By default, all user codes are set to the Owner type unless otherwise specified. The parameter type is associated with the user code location 5. Caution must be used when setting these values. Guests and Workers will require schedules attached to them in order for those types to be assigned. 0 1 0 0 1 From To Description 1 1 Owner 3 3 Guest 4 4 Worker 6 User Code Type for User Code 6 This configuration parameter is used to get or set the type of user for their corresponding user code. By default, all user codes are set to the Owner type unless otherwise specified. The parameter type is associated with the user code location 6. Caution must be used when setting these values. Guests and Workers will require schedules attached to them in order for those types to be assigned. 0 1 0 0 1 From To Description 1 1 Owner 3 3 Guest 4 4 Worker 7 User Code Type for User Code 7 This configuration parameter is used to get or set the type of user for their corresponding user code. By default, all user codes are set to the Owner type unless otherwise specified. The parameter type is associated with the user code location 7. Caution must be used when setting these values. Guests and Workers will require schedules attached to them in order for those types to be assigned. 0 1 0 0 1 From To Description 1 1 Owner 3 3 Guest 4 4 Worker 8 User Code Type for User Code 8 This configuration parameter is used to get or set the type of user for their corresponding user code. By default, all user codes are set to the Owner type unless otherwise specified. The parameter type is associated with the user code location 8. Caution must be used when setting these values. Guests and Workers will require schedules attached to them in order for those types to be assigned. 0 1 0 0 1 From To Description 1 1 Owner 3 3 Guest 4 4 Worker 17 User Code Type for User Code 17 This configuration parameter is used to get or set the type of user for their corresponding user code. By default, all user codes are set to the Owner type unless otherwise specified. The parameter type is associated with the user code location 17. Caution must be used when setting these values. Guests and Workers will require schedules attached to them in order for those types to be assigned. 0 1 0 0 1 From To Description 1 1 Owner 3 3 Guest 4 4 Worker 23 User Code Type for User Code 23 This configuration parameter is used to get or set the type of user for their corresponding user code. By default, all user codes are set to the Owner type unless otherwise specified. The parameter type is associated with the user code location 23. Caution must be used when setting these values. Guests and Workers will require schedules attached to them in order for those types to be assigned. 0 1 0 0 1 From To Description 1 1 Owner 3 3 Guest 4 4 Worker 24 User Code Type for User Code 24 This configuration parameter is used to get or set the type of user for their corresponding user code. By default, all user codes are set to the Owner type unless otherwise specified. The parameter type is associated with the user code location 24. Caution must be used when setting these values. Guests and Workers will require schedules attached to them in order for those types to be assigned. 0 1 0 0 1 From To Description 1 1 Owner 3 3 Guest 4 4 Worker 1 User Code Type for User Code 1 This configuration parameter is used to get or set the type of user for their corresponding user code. By default, all user codes are set to the Owner type unless otherwise specified. The parameter type is associated with the user code location 1. Caution must be used when setting these values. Guests and Workers will require schedules attached to them in order for those types to be assigned. 0 1 0 0 1 From To Description 4 4 Worker 1 1 Owner 3 3 Guest 9 User Code Type for User Code 9 This configuration parameter is used to get or set the type of user for their corresponding user code. By default, all user codes are set to the Owner type unless otherwise specified. The parameter type is associated with the user code location 9. Caution must be used when setting these values. Guests and Workers will require schedules attached to them in order for those types to be assigned. 0 1 0 0 1 From To Description 1 1 Owner 3 3 Guest 4 4 Worker 25 User Code Type for User Code 25 This configuration parameter is used to get or set the type of user for their corresponding user code. By default, all user codes are set to the Owner type unless otherwise specified. The parameter type is associated with the user code location 25. Caution must be used when setting these values. Guests and Workers will require schedules attached to them in order for those types to be assigned. 0 1 0 0 1 From To Description 1 1 Owner 3 3 Guest 4 4 Worker 31 Dipswitch settings This is a one byte read only bit mask that returns the state of the user accessible dipswitches on the rear panel of the door lock. 0x01: Lock Status LED (1: enabled, 0: disabled) 0x02: Autolock setting (1: enabled, 0: disabled) 0x04: Buzzer (1: enabled, 0: disabled) 0 1 0 0 11 From To Description 0 0 All features disabled 1 1 Lock status LED enabled 2 2 Autolock enabled 4 4 Internal buzzer enabled 3 3 Autolock and lock status LED enabled 5 5 Internal buzzer and lock status LED enabled 7 7 All features enabled 40 Reset to Default The configuration parameter 40 is a one byte field, used to set the lock to its default setting, known as a factory reset command. Reading this parameter will always return a value of 0. Writing a value of 1 to this parameter will cause both the lock and Z-Wave card to reset back to their default settings and will remove itself from the network. All network information, including associations will be cleared. 0 1 0 0 0 From To Description 0 0 No action taken 1 1 Reset lock to default
Texts	ID Description Value 4 Device Wake-Up Even though the lock is sleeping, all buttons are active and can be used to initiate any lock activity. For the RF side, it will wake up every 1 second to check if there are any requests from your smart home controller. 2 Exclusion Follow your smart home system’s instructions to remove the lock from the network. When prompted by the system, press button A” on the lock interior once. The red LED will illuminate when the lock enters Remove mode. 1 Inclusion Initiate the process to add the lock to your system at your smart home controller. When prompted by your smart home system to add the lock, press button “A” on the lock interior one time. The red LED will illuminate when the lock enters Add Mode. Please allow time for the controller to add the lock to your system. 5 Factory Reset A factory reset will delete all user codes associated with the lock and will remove itself from your smart home system. Please only perform a factory reset when the primary controller is missing or inoperable. To perform a factory reset, please perform the following: 1. Remove the battery pack 2. Press and HOLD the Program button while reinserting the battery pack. 3. Keep holding the button for 30 seconds until the lock beeps and the status LED flashes red. 4. Press the Program button once more. The status LED will flash green and red several times. 5. After a few seconds, the lock will initiate the door handing process.
Supported Notification Types	Notification Type Event / State Access Control (Refer to parameters): State idle Home Security (Refer to parameters): State idle Power Management (Refer to parameters): State idle
Supports NWI	Yes
Supports Explorer Frames	Yes
Is Flirs	Yes
