Product Recognition
Certification Number	ZC10-16045055
Name	Smartly Gateway
Short Description	The Smartly Gateway (SGW) is the brain in the smart home. It enables you to control a wide range of electronic equipment for lighting and heating.

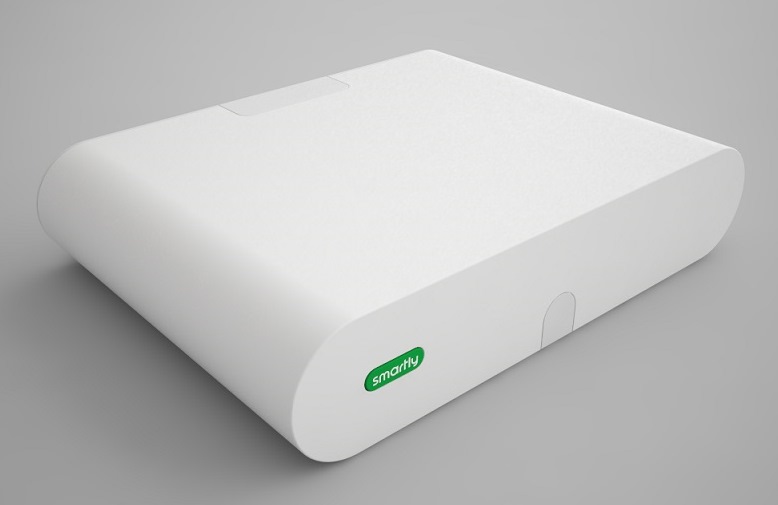

Long Description	The Smartly Gateway (SGW) is the brain in a Smart Home solution. The Gateway enables an unified Home Automation solution. It has Z-Wave integrated, as well as internal USB extension connectors which may be used to expand the SGWs future abilities. The Gateway is designed to reduce installation cost to a minimum. It can be installed on a DIN rail within the fuse cabinet, or externally on the wall.
Brand	Smartly
Product Identifier	2419D
OEM Version	HW: 1 FW: 1.00:01.01
Hardware Platform	ZM5202
Z-Wave Version	6.51.03
Library Type	CONTROLLER_STATIC
Device Type	Gateway
Role Type	ROLE_TYPE_CONTROLLER_CENTRAL_STATIC
Manufacturer ID	0x024F
Product Type ID	0x0x01
Product ID	0x0x01
User Icon	0x0100
Installer Icon	0x0100
Frequency Plans	EU: 869.85MHz, 868.40MHz
Categories	All Controllers, Gateway Controller
Countries / Regions	European Union
Controlled Command Classes	Identifier Name Key Version COMMAND_CLASS_ASSOCIATION_GROUP_INFORMATION Association Group Information V1 0x59 0 COMMAND_CLASS_SENSOR_ALARM Sensor Alarm 0x9C 1 COMMAND_CLASS_NO_OPERATION No Operation 0x00 1 COMMAND_CLASS_THERMOSTAT_FAN_MODE_V4 Thermostat Fan Mode V4 0x44 4 COMMAND_CLASS_BATTERY Battery 0x80 1 COMMAND_CLASS_SWITCH_BINARY Switch Binary 0x25 1 COMMAND_CLASS_BASIC Basic 0x20 1 COMMAND_CLASS_CRC_16_ENCAP CRC16 Encapsulation 0x56 1 COMMAND_CLASS_SECURITY Security S0 0x98 1 COMMAND_CLASS_SENSOR_MULTILEVEL_V6 Sensor Multilevel V6 0x31 6 COMMAND_CLASS_THERMOSTAT_MODE_V3 Thermostat Mode V3 0x40 3 COMMAND_CLASS_THERMOSTAT_SETPOINT_V3 Thermostat Setpoint V3 0x43 3 COMMAND_CLASS_VERSION_V2 Version V2 0x86 2 COMMAND_CLASS_WAKE_UP_V2 Wake Up V2 0x84 2 COMMAND_CLASS_ZWAVEPLUS_INFO_V2 Z-Wave Plus Info V2 0x5E 2 COMMAND_CLASS_SWITCH_MULTILEVEL_V3 Switch Multilevel V3 0x26 3 COMMAND_CLASS_ASSOCIATION_V2 Association V2 0x85 2 COMMAND_CLASS_MULTI_CHANNEL_V4 Multi-Channel V4 0x60 4 COMMAND_CLASS_NOTIFICATION_V5 Notification V5 0x71 5 COMMAND_CLASS_CONFIGURATION_V2 Configuration V2 0x70 2 COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 Manufacturer Specific V2 0x72 2 COMMAND_CLASS_METER_V4 Meter V4 0x32 4
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual Smartly_Home_Gateway.pdf
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 5 0 Used for lifeline, gateway sending Device Reset Locally
Texts	ID Description Value 23 Controller Inclusion BF Web interface; Z-Wave tab, ""Add Device"" 24 Controller Exclusion BF Web interface; Z-Wave tab, ""Remove Device"" 3 Learn Mode (adding another controller) BF Web interface; Z-Wave tab > Advanced Operations, ""Learn mode"" 5 Factory Reset BF Web interface; Z-Wave tab > Advanced Operations, ""Reset to default"". Use the reset procedure only when the primary controller is missing or inoperable.
Supports NWI	Yes
Supports Explorer Frames	Yes
