Product Recognition
Certification Number	ZC10-17015386

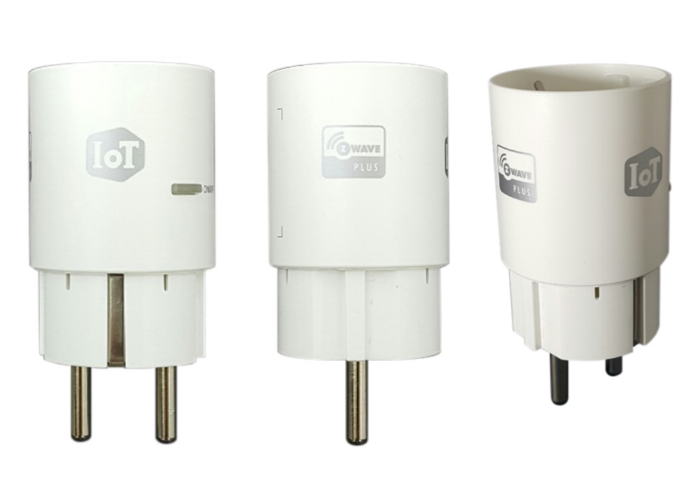

Name	SmartPlug-16A
Short Description	The Z-Wave smart Plug makes it possible to meter the amount of power used by home appliance. This device can switch on or off the electric home appliance (remotely and manual)
Long Description	The device can remotely power on/off to the load connected and will inform you of the electricity usage of your load. You can use it to measure the power of the load connected to the device (currently instantaneous power & used power).
Brand	LG Uplus
Product Identifier	SPD-02A
OEM Version	HW: 17 FW: 0.01
Hardware Platform	ZM5101
Z-Wave Version	6.61.00
Library Type	SLAVE_ENHANCED_232
Device Type	On/Off Power Switch
Role Type	ROLE_TYPE_SLAVE_ALWAYS_ON
Manufacturer ID	0x018C
Product Type ID	0x0042
Product ID	0x0007
User Icon	0x0700
Installer Icon	0x0700
Frequency Plans	KR: 920.90MHz, 921.70MHz, 923.10MHz
Categories	Energy Meters, All Lighting Devices, On/Off Switches/Devices
Countries / Regions	Republic of Korea
Supported Command Classes	Identifier Name Key Version COMMAND_CLASS_POWERLEVEL Powerlevel 0x73 1 COMMAND_CLASS_SWITCH_BINARY Switch Binary 0x25 1 COMMAND_CLASS_BASIC Basic 0x20 1 COMMAND_CLASS_SECURITY Security S0 0x98 1 COMMAND_CLASS_NOTIFICATION_V3 Notification V3 0x71 3 COMMAND_CLASS_VERSION_V2 Version V2 0x86 2 COMMAND_CLASS_DEVICE_RESET_LOCALLY Device Reset Locally 0x5A 1 COMMAND_CLASS_ZWAVEPLUS_INFO_V2 Z-Wave Plus Info V2 0x5E 2 COMMAND_CLASS_ASSOCIATION_V2 Association V2 0x85 2 COMMAND_CLASS_METER_V3 Meter V3 0x32 3 COMMAND_CLASS_ASSOCIATION_GRP_INFO Association Group Info 0x59 1 COMMAND_CLASS_FIRMWARE_UPDATE_MD_V2 Firmware Update Meta-Data V2 0x7A 2 COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 Manufacturer Specific V2 0x72 2
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual SPD-02A_Manual.pdf
Features	Feature Values Switch Load Capacity Volt-Ampere Value 3600VA (220V) Switch Load Capacity Watts Value ~3600W Switch Load Capacity Current Value 16A Firmware Updatable Value Updatable by Manufacturer Representative Supported Meter Type Value Electric Energy Color Value White
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 5 0 Z-Wave Plus Lifeline, see attatched manual.
Configuration Parameters	Parameter Number Name Description Format Size Min Value Max Value Default Value Parameter Values 5 Periodic Time Intervals this parameter is for the periodic report interval. Minimum time interval : 10minutes(standard unit) Value : 1 (10minutes * 1) = 10minutes interval Value : 2 (10minutes * 2) = 20minutes interval …….. …….. Value : 144(10m * 144) = 24 hours interval =>MAX ( Default : 6 = One hour ) 0 1 0 0 6 From To Description 1 144 unit is per 10 minutes.you can change this value using configuration command class. 3 Accumulation Start/Stop this parameter is for the function measuring the power used cumulatively. Value : 0 - stop accumulating power value. Value : 1 - start accumulating power value. ( Default : Accumulation Start ) (This configuration value is used only 0 and 1.) 0 1 0 0 0 From To Description 0 1 If value is 0, plug stop accumulating power value. If value is 1, plug start accumulating power value. 4 Connected Device Use/Not Use this parameter is a value that indicates whether the device is in use connected to the plug. this is read only. and this parameter has meaning only when the standby power off function is On. Value : 0 - when connected Device(home appliance) is Not Use Value : 1 - When connected Device(home appliance) is in Use - Before setting the standby power mode, this parameter is meaningless. Only when using Standby power break mode, plug can report this parameter. (This configuration value is used only 0 and 1.) 0 1 0 0 0 From To Description 0 1 If value is 0, connected device is Not use, If value is 1, it is in use. 2 Peridic Measurement Value Transmission this parameter determines whether or not to periodically reports the measured power values. Value : 1 (transmits a power value measured at the plug, periodically. Value : 0 (not transmitting power value) ( Default : 1) 0 1 0 0 1 From To Description 0 1 If value is 0, Plug do not transmit power value. If value is 1, plug transmits power value to hub. 1 Standy Power Setting Value this parameter determines whether to use the standby power cutoff function and determines the reference value of standby power cut off. If ther power consumption is less than the reference value, switch is turned off. this parameter value's size is 4 bytes. first 3 bytes is for setting standby power reference value. last 1 byte is for standby power monitoring function enable or disable. - Standby power setting value : 3 Byte - Standby Power Enable/Disble : 1 Byte) standby power value example : if the value is set by 300(0x00012C), standby power is 3.00w standby power function enable/disable example : If standby power is enable, value is 0x01. and, total 4 bytes is 0x00012C01, ( Default parameter value : 0 – 0.00W, StandbyPower Disable) (max standby reference power is 600W, 0x00EA60) 0 4 0 0 0 From To Description 0 60000 standby power reference value range(3 byte) 0 1 standby power monitoring function enable/disable setting value
Texts	ID Description Value 5 Factory Reset Press the button on the Smart Plug for more than 10 seconds after you plug the Smart Plug into a power outlet will make a Exclusion in the network controller, while the flashing red button LED Smart Plug. And all the variables are initialized. ※ Please use this procedure only in the event that the network primary controller is missing or otherwise inoperable 1 Inclusion After mounting the UZB controller to your PC and running the PC Controller program, click the Add button in the PC Controller program. Press the button on the Smart Plug for more than five seconds after you plug the Smart Plug into a power outlet and it will include to the network controller, while flashing the red button on the LED Smart Plug. 2 Exclusion After mounting the UZB controller to your PC and run the PC Controller program you can click the Remove button in the PC Controller program. Press the button on the Smart Plug for more than five seconds after you plug the Smart Plug into a power outlet will Exclusion in the network controller, while the flashing red button LED Smart Plug.
Supported / Controlled Meter Types	Meter Type Rate Type Description Electric meter Import Electric Meter Consumption
Supports NWI	Yes
Supports Explorer Frames	Yes
