Product Recognition | |
|---|
Certification Number | ZC10-21027008 |
|---|

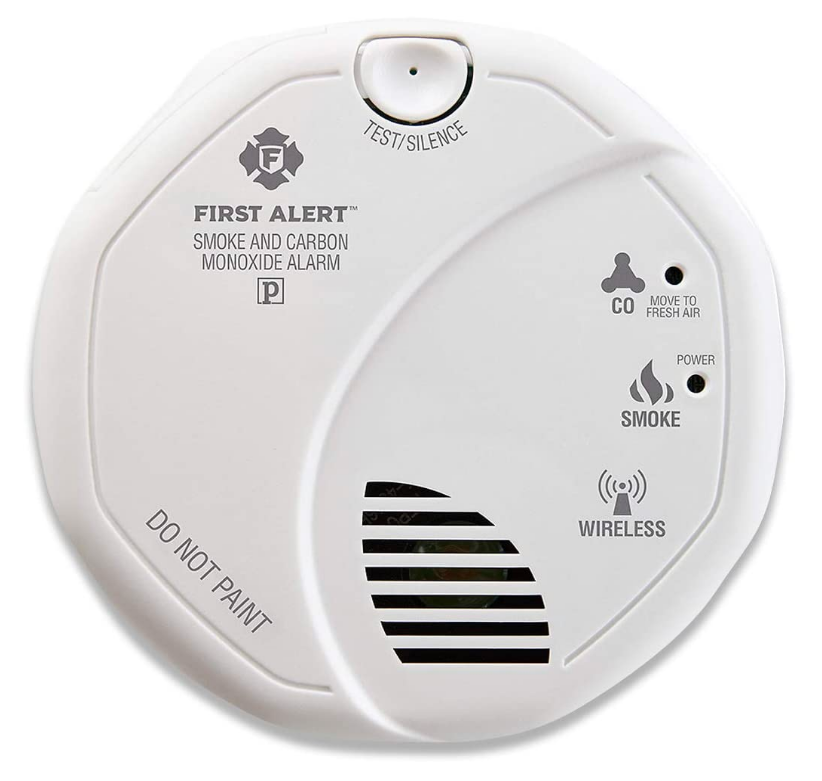

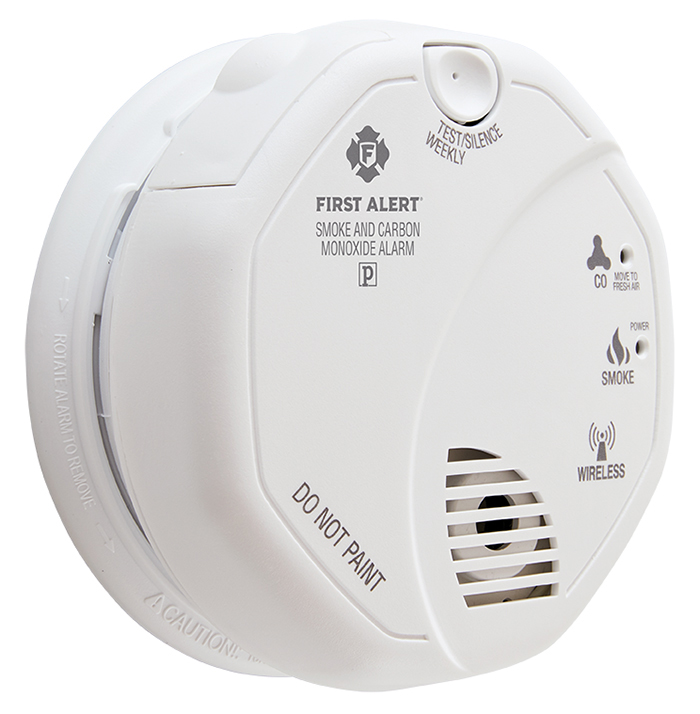

Name | SMCO400 |
|---|
Short Description | Z-Wave Enabled Battery Smoke & Carbon Monoxide Combo Alarm |
|---|
Long Description | The Z-Wave Smoke/CO alarm can be implemented in residential and institutional applications. Installation settings include sleeping areas within hospitals, hotels, motels, dormitories and other multi-family dwellings that are defined in standard NFPA 101. The First Alert ZCOMBO-G Smoke and Carbon Monoxide Detector has been fully tested and complies with UL217, UL2034, CSFM, NFPA 720, NFPA 101 and other agencies that model their codes after the above agencies. The combination alarm meets building codes that require the use of a battery operated Z-Wave wireless Smoke and CO detector. This First Alert Z-Wave Combination Alarm includes silence features and meets the model building codes published by the ICC.
The First Alert Z-Wave Combo Alarm includes: an insect screened photoelectric smoke sensing chamber, electrochemical carbon monoxide sensor, 85dB horn, supervised 3V (2 AA batteries) power supply, full function test switch and a silence feature.
The First Alert Z-Wave Enabled Battery Smoke & Carbon Monoxide Combo Alarm includes a battery drawer that prevents battery removal and tamper resistant locking pins that lock the alarm to the mounting bracket. This First Alert Combination Alarm is an ideal fit for any number of applications that include apartments, dormitories, and hotels. Designed for wall or ceiling mounting, this alarm includes all of the required mounting anchors and screws needed for easy installation. |
|---|
Brand | First Alert |
|---|
Product Identifier | SMCO400 |
|---|
Product Line | First Alert |
|---|
OEM Version | HW: 2 FW: 12.00:07.00 |
|---|
Hardware Platform | ZM5202 |
|---|
Z-Wave Version | 6.81.06 |
|---|
Library Type | SLAVE_ROUTING |
|---|
Device Type | Notification Sensor |
|---|
Role Type | ROLE_TYPE_SLAVE_SLEEPING_REPORTING |
|---|
Manufacturer ID | 0x0138 |
|---|
Product Type ID | 0x0001 |
|---|
Product ID | 0x0058 |
|---|
User Icon | 0x0C01 |
|---|
Installer Icon | 0x0C01 |
|---|
Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
Categories | Sensors |
|---|
Countries / Regions | United States of America |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 | Multi-Channel Association V3 | 0x8E | 3 | COMMAND_CLASS_BATTERY | Battery | 0x80 | 1 | COMMAND_CLASS_CONFIGURATION | Configuration | 0x70 | 1 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_WAKE_UP_V2 | Wake Up V2 | 0x84 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_NOTIFICATION_V8 | Notification V8 | 0x71 | 8 | COMMAND_CLASS_SECURITY_2 | Security S2 | 0x9F | 1 | COMMAND_CLASS_VERSION_V3 | Version V3 | 0x86 | 3 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
S2 Classes | S2_UNAUTHENTICATED, S2_AUTHENTICATED |
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | SMCO400 Product Manual | | Adv_Manual | Advanced Information on Z-Wave specifications | |
|
|---|
Features | Feature | Values |
|---|
Firmware Updatable | | Outdoor Use | | Battery Quantity | | Battery Type | | Color | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Group Name | Profile | Description |
|---|
1 | 1 | 0 | Lifeline | 0x0001 | The alarm supports one association group (Lifeline) with up to 1 node, and sends its alarms to that group. Group ID: 0x01, Group Name: Lifeline. The Z-Wave network controller may be set in this group. It’s not recommended to modify this association group. All the critical events mentioned in the list of supported events over Notification Command Class will be triggered from the Lifeline association group. |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
1 | SuperVision report timeout | ZCOMBO will send the message over SuperVision Command Class and it will wait for the SuperVision report from the Controller for the SuperVision report timeout time. | 1 | 2 | 500 | 5000 | 1500 | From | To | Description |
|---|
500 | 5000 | The value is in milliseconds. |
| 2 | SuperVision retry count | If the SuperVision report is not received within the SuperVision report timeout time, the ZCOMBO will retry sending the message again. Upon exceeding the max retry, the ZCOMBO device will send the next message available in the queue. | 1 | 2 | 0 | 5 | 1 | From | To | Description |
|---|
0 | 5 | The value is a number |
| 3 | SuperVision wait time | Before retrying the message, ZCOMBO will wait for the SuperVision wait time. Actual wait time is calculated using below formula, Wait time = SuperVision wait time base-value + random-value + (attempt-count x 5 seconds) • The random value shall be a time between 100 and 1100 milliseconds | 1 | 2 | 1 | 60 | 5 | From | To | Description |
|---|
1 | 60 | The value is in seconds. |
|
|
|---|
Texts | ID | Description | Value |
|---|
1 | Classic Inclusion | ADDING ALARM
1. Slide battery door open.
2. Insert batteries checking the correct orientation.
3. Press and hold the test button with your finger or thumb. Keep it held down as you slide the battery drawer closed. You may then release the button.
NOTE: Use only your finger or thumb on the test button. The use of any other instrument is strictly prohibited. | 2 | Classic Exclusion | REMOVING ALARM
1. Slide battery door open.
2. Remove and re-insert batteries checking the correct orientation.
3. Press and hold the test button with your finger or thumb. Keep it held down as you slide the battery drawer closed. You may then release the button.
NOTE: Use only your finger or thumb on the test button. The use of any other instrument is strictly prohibited. | 8 | Where to find S2 DSK on product | DSK LOCATION ON THE PRODUCT
Device Specific Key (DSK) to be available at the time an S2 device is added to a Z-Wave network.
The QR code and the 5-digit DSK PIN can be found on the product nameplate which is located on the back of the product. The Full DSK string can be found on the product insert, available inside the product packaging. | 4 | Wake-Up Procedure | PROCEDURE TO MANUALLY WAKE-UP THE DEVICE
To manual wake-up the device, slide the battery door open wait for ~5 seconds and then slide the battery drawer closed. Upon power-up, the device will send the wake-up notification. | 5 | Factory Reset Procedure | RESETTING ALARM
If the device is powered up with the test button held down for 10+ seconds, the device will reset all Z-Wave settings and leave the network.
Upon completion of the Reset operation, the LED will glow and the horn will sound for ~1 second.
Please use this procedure only when the network primary controller is missing or otherwise inoperable. |
|
|---|
Supported Notification Types | Notification Type | Event / State |
|---|
Smoke Alarm | (Refer to parameters): State idle | Smoke Alarm | Sensor status: Smoke detected | Smoke Alarm | Alarm status: Smoke alarm test | Smoke Alarm | Alarm status: Alarm silenced | CO Alarm | (Refer to parameters): State idle | CO Alarm | Sensor status: Carbon monoxide detected | CO Alarm | Maintenance status: Replacement required, End-of-life | CO Alarm | Alarm status: Alarm silenced | System | (Refer to parameters): State idle | System | HW status: System hardware failure | System | Heartbeat |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Supports SmartStart | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
