Product Recognition | |
|---|
Certification Number | ZC14-24120487 |
|---|
Name | SMCO410 |
|---|

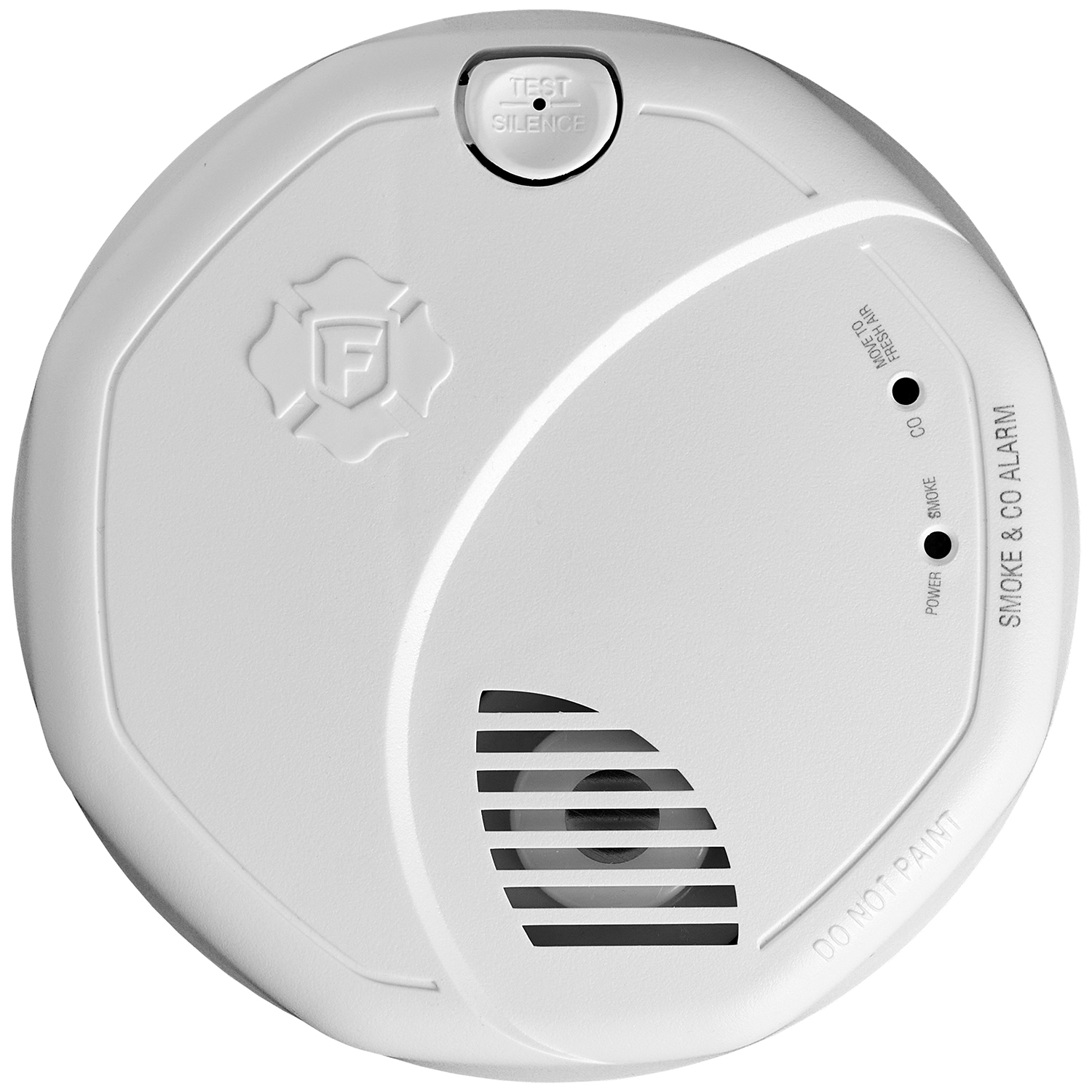

Short Description | First Alert SMCO410 Smoke and CO Alarm with Z-wave and 10-year sealed battery |
|---|
Long Description | The SMCO410 Z-Wave Smoke/CO alarm can be implemented in residential and institutional applications. Installation settings include sleeping areas within hospitals, hotels, motels, dormitories and other multi-family dwellings that are defined in code NFPA 72. The First Alert SMCO410 Smoke and Carbon Monoxide Detector has been fully tested and complies with UL217, UL2034, CSFM, NFPA 72 and other agencies that model their codes after the above agencies. The combination alarm meets building codes that require the use of a battery operated Z-Wave wireless Smoke and CO detector.
The First Alert SMCO410 Z-Wave Combo Alarm includes: an insect screened photoelectric smoke sensing chamber, electrochemical carbon monoxide sensor, 85dB horn, supervised 3V (Lithium) 10-year sealed power supply, full function test switch and a silence feature.
The First Alert SMCO410 Z-Wave Enabled Battery Smoke & Carbon Monoxide Combo Alarm includes a tamper resistant locking pins that lock the alarm to the mounting bracket. This First Alert Combination Alarm is an ideal fit for any number of applications that include apartments, dormitories, and hotels. Designed for wall or ceiling mounting, this alarm includes all of the required mounting anchors and screws needed for easy installation. |
|---|
Brand | First Alert |
|---|
Product Identifier | SMCO410 |
|---|
Product Line | First Alert |
|---|
OEM Version | HW: 03 FW: 01.00:00.00 |
|---|
Hardware Platform | EFR32ZG23A |
|---|
Z-Wave Version | 7.21.3 |
|---|
Library Type | END_NODE_ENHANCED_232 |
|---|
Device Type | Notification Sensor DT |
|---|
Role Type | ROLE_TYPE_END_NODE_SLEEPING_REPORTING |
|---|
Manufacturer ID | 0x041B |
|---|
Product Type ID | 0x0001 |
|---|
Product ID | 0x0410 |
|---|
User Icon | 0x0C01 |
|---|
Installer Icon | 0x0C01 |
|---|
Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
Categories | Sensors |
|---|
Countries / Regions | United States of America |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO_V3 | Association Group Information (AGI) V3 | 0x59 | 3 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_FIRMWARE_UPDATE_MD_V5 | Firmware Update Meta Data V5 | 0x7A | 5 | COMMAND_CLASS_INDICATOR_V3 | Indicator V3 | 0x87 | 3 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 | COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 | Multi Channel Association V3 | 0x8E | 3 | COMMAND_CLASS_VERSION_V3 | Version V3 | 0x86 | 3 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_SECURITY_2 | Security 2 | 0x9F | 1 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_NOTIFICATION_V8 | Notification V8 | 0x71 | 8 | COMMAND_CLASS_WAKE_UP_V2 | Wake Up V2 | 0x84 | 2 | COMMAND_CLASS_BATTERY | Battery | 0x80 | 1 | COMMAND_CLASS_CONFIGURATION_V4 | Configuration V4 | 0x70 | 4 |
|
|---|
S2 Classes | S2_AUTHENTICATED, S2_UNAUTHENTICATED |
|---|
Documents | Category | File | Description |
|---|
Manual_English | | | Adv_Manual | | SMCO410 Z-wave Specification |
|
|---|
Features | Feature | Values |
|---|
Battery Quantity | | Battery Type | Value |
|---|
Sealed 10-year 3V Lithium |
| Color | | Outdoor Use | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Group Name | Profile |
|---|
1 | 5 | 0 | Lifeline | 0x0001 |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value |
|---|
1 | SuperVision Report Timeout | SuperVision Report Timeout ms | 1 | 2 | 0 | 0 | 0x05DC | 2 | SuperVision Retry Count | SuperVision Retry Count | 1 | 2 | 0 | 0 | 0x0001 | 3 | SuperVision Wait Time | SuperVision Wait Time seconds | 1 | 2 | 0 | 0 | 0x0005 |
|
|---|
Texts | ID | Description | Value |
|---|
8 | Where to find S2 DSK on product | DSK LOCATION ON THE PRODUCT
Device Specific Key (DSK) to be available at the time an S2 device is added to a Z-Wave network. The
QR code and the 5-digit DSK PIN can be found on the product nameplate which is located on the back
of the product. The Full DSK string can be found on the label on the side of product and on the product
insert, available inside the product packaging.
For more information on Z-Wave specifications, visit www.firstalert.com/zwaveinfo. | 1 | Classic Inclusion | Press and hold the button until 2 consecutive chirps and green LED flashes are heard and seen | 2 | Classic Exclusion | Press and hold the button until 2 consecutive chirps and green LED flashes are heard and seen | 4 | Wake-Up Procedure | When You Test the Alarm
A “chirp” and then Horn: 3 beeps, pause, 3 beeps;
Power/Smoke LED: Flashes Red in sync with horn;
CO LED: Off; and then Horn: 4 beeps, pause, 4
beeps; Power/Smoke LED: Off; CO LED: Flashes Red
in sync with horn
The Zwave Radio will then Wake Up. | 5 | Factory Reset Procedure | Press and hold the button until 3 consecutive chirps are heard. This may take 20+ seconds. |
|
|---|
Supported Notification Types | Notification Type | Event / State |
|---|
Smoke Alarm | State Idle | Smoke Alarm | Sensor status: Smoke detected | Smoke Alarm | Alarm status: Smoke alarm test | Smoke Alarm | Alarm status: Alarm silenced | Smoke Alarm | Dust in device status: Maintenance required, dust in device | CO Alarm | (Refer to parameters): State idle | CO Alarm | Sensor status: Carbon monoxide detected | CO Alarm | Maintenance status: Replacement required, End-of-life | CO Alarm | Alarm status: Alarm silenced | System | (Refer to parameters): State idle | System | HW status: System hardware failure | System | Heartbeat |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Supports SmartStart | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
