Product Recognition | |
|---|---|
Certification Number | ZC10-22047080 |

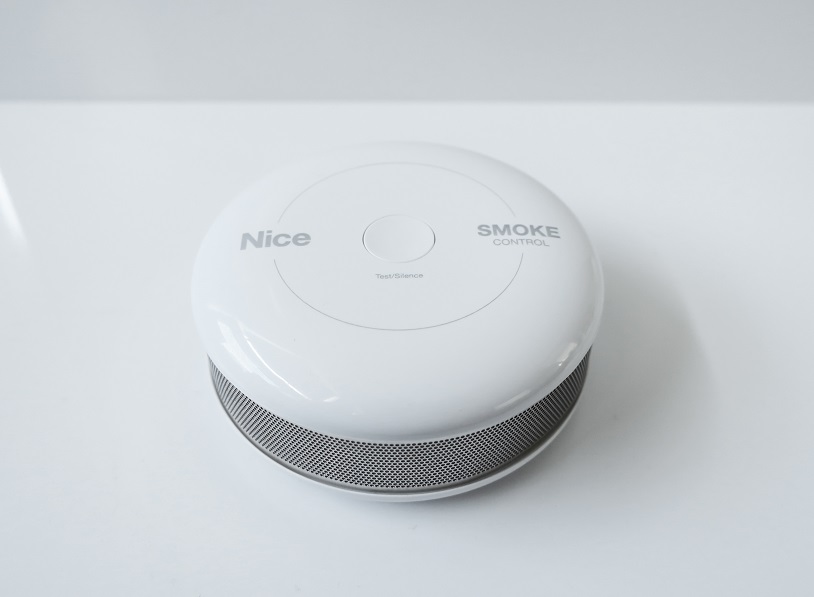

Name | Smoke-Control |
Short Description | Smoke-Control is a universal, optical Z-Wave™ smoke detector. A fire alarm is signaled by sound, visual indicator blinking, and sending Z-Wave alarm and control command |
Long Description | Smoke-Control is a universal, optical Z-Wave™ smoke detector. A fire alarm is signaled by sound, visual indicator blinking, and sending Z-Wave alarm and control commands.
The optical sensor detects smoke at an early stage of fire, often before flames appear and the temperature rises significantly. Moreover, the device has a built-in temperature sensor, a programmable indicator of exceeding the set temperature level.
Smoke-Control is designed to be placed on a wall or ceiling. Visual indicator signals fire operating mode and are used to see if the device is within the Z-Wave network. Smoke-Control is designed to operate in confined spaces under normal conditions (lacking smoke, dust, condensed water vapor). |
Brand | Nice |
Product Identifier | FGSD-002 |
Product Line | Nice Smoke-Control |
OEM Version | HW: 2 FW: 3.03:03.03 |
Hardware Platform | ZM5202 |
Z-Wave Version | 6.51.07 |
Library Type | SLAVE_ENHANCED_232 |
Device Type | Notification Sensor |
Role Type | ROLE_TYPE_SLAVE_SLEEPING_REPORTING |
Manufacturer ID | 0x010F |
Product Type ID | 0x0C02 |
Product ID | 0x1003 |
User Icon | 0x0C01 |
Installer Icon | 0x0C01 |
Frequency Plans | EU: 869.85MHz, 868.40MHz |
Categories | Sensors |
Countries / Regions | European Union |
Supported Command Classes | |
Controlled Command Classes | |
Documents | |
Association Groups | |
Configuration Parameters | |
Texts | |
Supported Notification Types | |
Supported Multilevel Sensors | |
Supports NWI | Yes |
Supports Explorer Frames | Yes |
Radio Range Z-Wave (m) | 40 |
