Name

Smoke Detector

Short Description

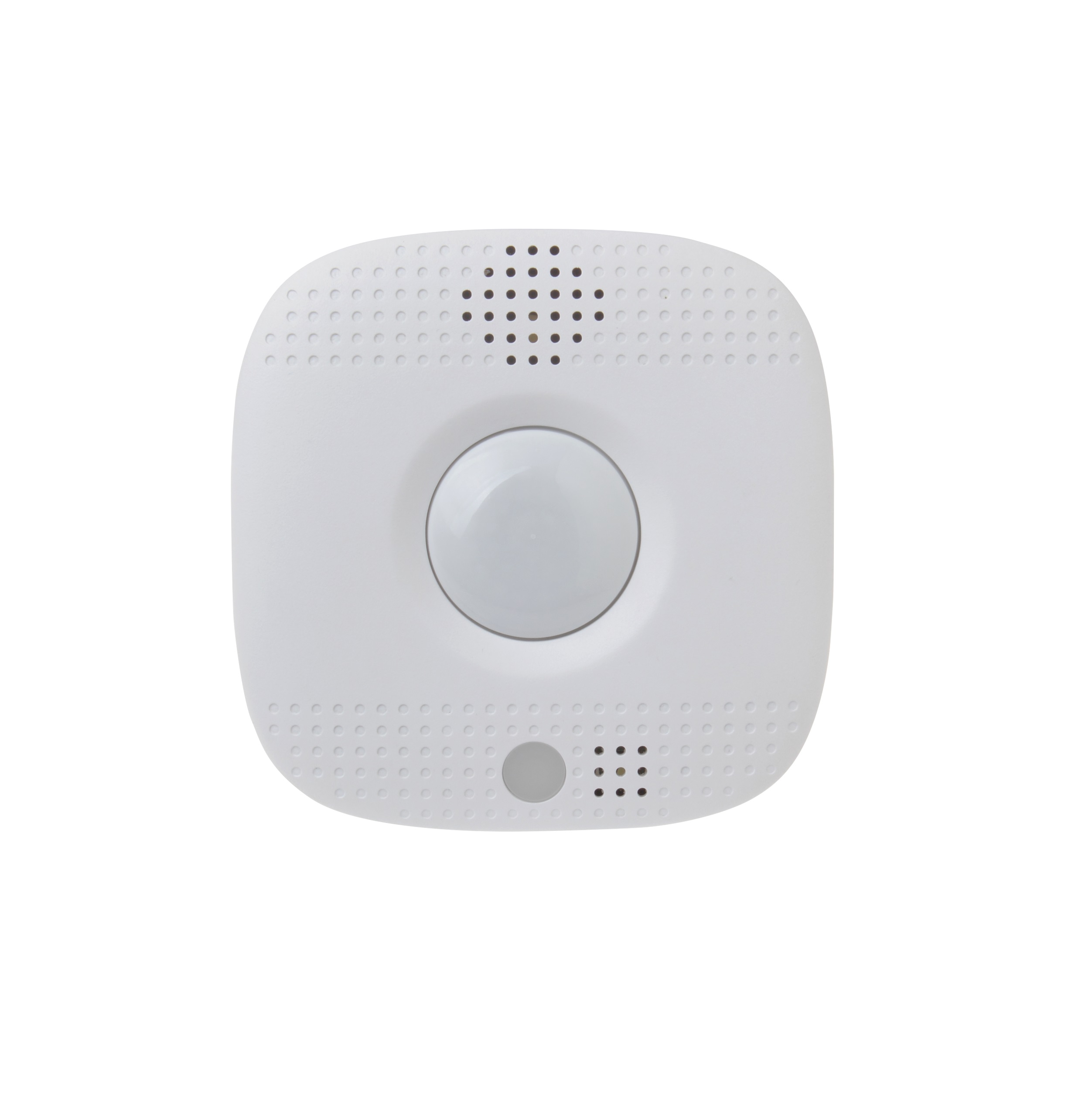

SD-29 series is a wireless smoke detector with built-in PIR motion sensor, temperature sensor and emergency light (optional). Designed to protect your family against potential fire hazards, the Smoke detector is also capable of detecting movements and reporting temperature to users.

Long Description

The SD-29 is a wirelessly operated photo-electronic Smoke Detector designed to operate with any Z-Wave enabled controller devices; it also features smoke detecting, temperature sensing and IR detection. The Smoke Detector’s alarm situations, battery condition, operating conditions, supervisory data and general fault information are sent to the Z-Wave Gateway/Control Panel wirelessly. The device is also serially connected with other sensors in the Z-Wave gateway to serve as an extra siren.

Brand

Climax Technology

Product Identifier

SD-29

Product Line

Z-Wave Accessories

OEM Version

HW: 255 FW: 4.01

Hardware Platform

ZM5202

Z-Wave Version

6.81.06

Library Type

SLAVE_ENHANCED_232

Device Type

Notification Sensor

Role Type

ROLE_TYPE_SLAVE_SLEEPING_LISTENING

Manufacturer ID

0x018E

Product Type ID

0x0003

Product ID

0x0018

User Icon

0x0C01

Installer Icon

0x0C01

Frequency Plans

EU: 869.85MHz, 868.40MHz

Categories

Sensors

Countries / Regions

European Union

Supported Command Classes

Controlled Command Classes

S2 Classes

S2_UNAUTHENTICATED

Documents

Features

Association Groups

Texts

ID	Description	Value
1	Classic Inclusion	1. Insert three 3V CR123 Lithium batteries into the battery compartment. Orient the battery according to the battery compartment polarity indication before insertion. 2. After batteries are inserted, the Smoke Detector will sound 2 short beeps, the Red LED will start to flash and initiates a 1-minute warm-up period. 3. During the 1-minute warming period, you can learn (include) the Smoke Detector into the Panel, refer to Add Device (Inclusion) for details. 4. Put the Z-Wave gateway or control panel into Inclusion or Learning mode (please refer to the Z-Wave gateway or control panel manual). 5. Within 1.5 seconds, press the Function button 3 times. The Smoke Detector will emit a 2-tone beep and the LED will turn on for ~2 seconds. Refer to the operation manual of the Z-Wave gateway or control panel to complete the learn-in process. 6. When the 1-minute warming period is over, one short beep will sound to indicate that the Smoke Detector is starting calibration process. Learning/Inclusion is prohibited during calibration. If the Smoke Detector has not been included in the panel yet, wait for calibration to complete before including the Smoke Detector. The completion of calibration process will be notified by a 2-tone beep and the Red LED will turn off. If the Smoke Detector gives out continuous beeps instead, it indicates that the Smoke Detector has failed the calibration. Remove the battery and restart from step 1 after a pause of at least 30 seconds. 7. After the warming-up and calibration process, if the Smoke Detector is not learned (included) into the Z-Wave gateway/Control Panel, complete the learning/inclusion process then refer to Installation section below to mount the Smoke Detector. 8. If the sensor has already been included (learnt) into another Z-Wave Gateway/Control Panel, or if the sensor is unable to be learnt into the current Z-Wave Gateway/Control Panel, please exclude it first (see Exclusion) before attempting to include it into the current Z-Wave Gateway/Control Panel.
2	Classic Exclusion	1. Put the Z-Wave gateway or control panel into Exclusion mode (please refer to the Z-Wave gateway or control panel manual). 2. Within 1.5 seconds, press the Function button 3 times and the Smoke Detector will be removed from the Z-Wave network.
5	Factory Reset Procedure	(Only use factory reset when network Control Panel/Gateway is missing or inoperable). *. Press and hold the button of the smoke detector for 20 seconds. Release the button when you hear 3 beeps to perform factory reset.
4	Wake-Up Procedure	Listening Sleeping Slave (LSS)

Supported Notification Types

Supported Multilevel Sensors

Supports NWI

Yes

Supports Explorer Frames

Yes

Is Flirs

Yes
