| Product Recognition | |
|---|
| Certification Number | ZC10-16125371 |
|---|

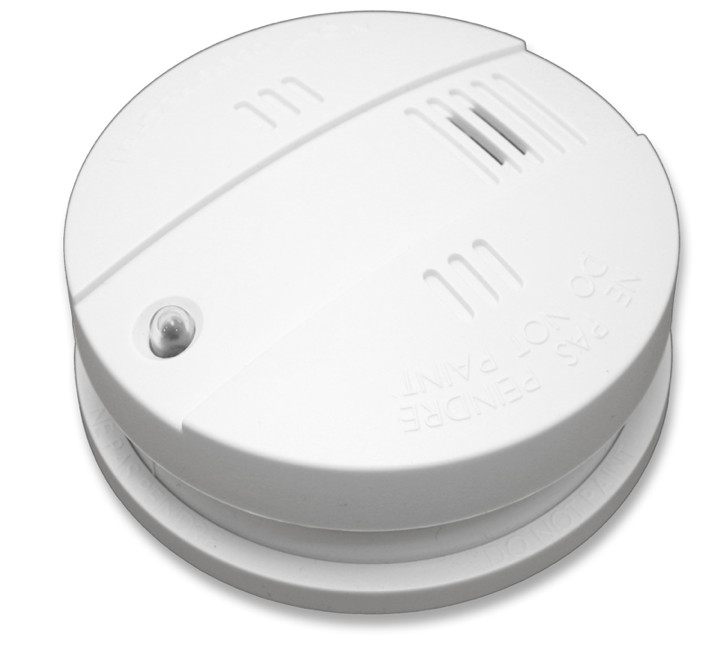

| Name | Smoke Detector and Siren |
|---|
| Short Description | EN 14604 certified Smoke Detector with built in Z-Wave controllable siren function |
|---|
| Long Description | This products consists of a standard photo electric Smoke detector with a pluggable Z-Wave wireless interface module.
The Smoke detector will also work as a stand alone product and is certified according to EN 14604. The
smoke chamber of the detector has a stainless steel reel with antistatic plastic chamber.
A button allows on-device test of smoke chamber, electronics and battery. The device also offers a built-in self test and
an electronic smoke chamber test to avoid the use of test aerosol. A low battery warning will last for 30 days but full
function of the detector is guaranteed during this time.
The Z-Wave module allows to report the smoke and low battery alarm wirelessly to a central controller. The detector can
also be used as a wireless siren for alarm system or other applications. The wireless module is operated by the 9V battery
of the smoke detector. An optional external power supply allows external powering the unit.
According to VdS 3515 (Smoke Detectors with Wireless Communication) this device will send alarm signals to all other
smoke detectors registered in association group 2 to turn on their siren. This function ensures that all smoke detectors
will issue noise if one of them detected a smoke. |
|---|
| Brand | Popp |
|---|
| Product Identifier | POPE004001 |
|---|
| OEM Version | HW: 1 FW: 1.00 |
|---|
| Hardware Platform | ZM5202 |
|---|
| Z-Wave Version | 6.51.06 |
|---|
| Library Type | SLAVE_ENHANCED |
|---|
| Device Type | Notification Sensor |
|---|
| Role Type | ROLE_TYPE_SLAVE_SLEEPING_LISTENING |
|---|
| Manufacturer ID | 0x0154 |
|---|
| Product Type ID | 0x0100 |
|---|
| Product ID | 0x0201 |
|---|
| User Icon | 0x0c01 |
|---|
| Installer Icon | 0x0c01 |
|---|
| Frequency Plans | EU: 869.85MHz, 868.40MHz |
|---|
| Categories | Sensors, Security Add-Ons |
|---|
| Countries / Regions | European Union |
|---|
| Supported Command Classes | | Identifier | Name | Key | Version |
|---|
| COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | | COMMAND_CLASS_BATTERY | Battery | 0x80 | 1 | | COMMAND_CLASS_SWITCH_BINARY | Switch Binary | 0x25 | 1 | | COMMAND_CLASS_BASIC | Basic | 0x20 | 1 | | COMMAND_CLASS_CONFIGURATION | Configuration | 0x70 | 1 | | COMMAND_CLASS_SECURITY | Security S0 | 0x98 | 1 | | COMMAND_CLASS_SENSOR_BINARY_V2 | Sensor Binary V2 | 0x30 | 2 | | COMMAND_CLASS_VERSION_V2 | Version V2 | 0x86 | 2 | | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | | COMMAND_CLASS_NOTIFICATION_V5 | Notification V5 | 0x71 | 5 | | COMMAND_CLASS_MANUFACTURER_SPECIFIC | Manufacturer Specific | 0x72 | 1 | | COMMAND_CLASS_FIRMWARE_UPDATE_MD_V3 | Firmware Update Meta-Data V3 | 0x7A | 3 |
|
|---|
| Controlled Command Classes | | Identifier | Name | Key | Version |
|---|
| COMMAND_CLASS_BASIC | Basic | 0x20 | 1 | | COMMAND_CLASS_SECURITY | Security S0 | 0x98 | 1 | | COMMAND_CLASS_NOTIFICATION_V5 | Notification V5 | 0x71 | 5 |
|
|---|
| Documents | |
|---|
| Features | | Feature | Values |
|---|
| Battery Quantity | | | Battery Type | | | Color | |
|
|---|
| Association Groups | | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
| 2 | 4 | 0 | Alarm Reports | | 3 | 4 | 0 | Switch Command when Alarm | | 1 | 4 | 0 | Z-Wave Plus Lifeline |
|
|---|
| Configuration Parameters | | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
| 1 | Siren alarm sequence interval | The additional siren is creating a different acoustic signal differentiate from the smoke alarm. This sound is partly on and partly off. This parameter defines the total length of the interval in seconds. | 0 | 1 | 0 | 0 | 10 | | From | To | Description |
|---|
| 3 | 127 | seconds |
| | 2 | Siren alarm tone length | The additional siren is creating a different acoustic signal differentiate from the smoke alarm. This sound is partly on and partly off. This parameter defines the total length of the sound versus silence within this interval. | 0 | 1 | 0 | 0 | 8 | | From | To | Description |
|---|
| 3 | 127 | seconds |
| | 3 | Value of BASIC On-Command | This defines what command is sent into association group 2 | 0 | 1 | 0 | 0 | 99 | | From | To | Description |
|---|
| 0 | 99 | BASIC Command Value |
| | 4 | Value of BASIC Off-Command | This defines what command is sent into association group 2 | 0 | 1 | 0 | 0 | 0 | | From | To | Description |
|---|
| 0 | 99 | BASIC Command Value |
|
|
|---|
| Texts | | ID | Description | Value |
|---|
| 5 | Factory Reset | To reset the device keep the button pushed for 10 seconds. After 5 seconds the led starts flashing and after another 5
seconds there is a short beep signaling the successful reset back to factory defaults. Use this procedure only when the network primary controller is missing or otherwise inoperable. | | 1 | Inclusion | To Include, hit the little button on the wireless module for 1 second | | 2 | Exclusion | To Exclude, hit the little button on the wireless module for 1 second |
|
|---|
| Supports NWI | Yes |
|---|
| Supports Explorer Frames | Yes |
|---|
| Is Flirs | Yes |
|---|
