Product Recognition | |
|---|
Certification Number | ZC10-17055607 |
|---|

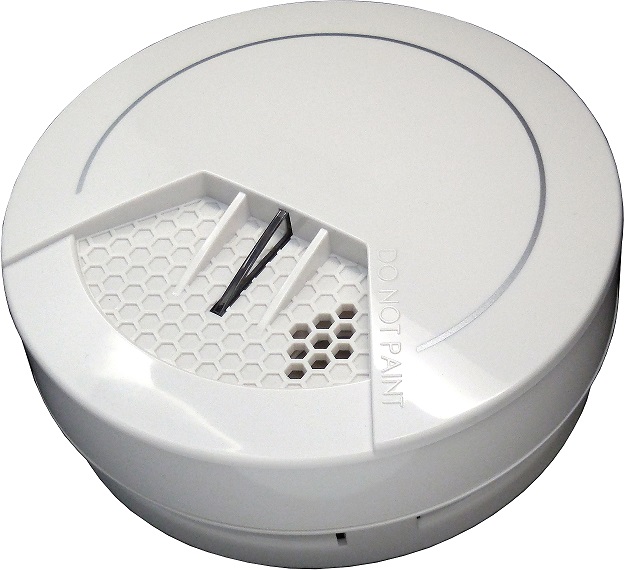

Name | Smoke Sensor, Z-Wave |
|---|
Short Description | Zipato Smoke Sensor (Z-Wave) is designed to give early warning of developing fires by giving off the alarm sounds from its build-in alarm horn, based on Z-Wave technology. |
|---|
Long Description | Zipato Smoke Sensor (Z-Wave) is designed to give early warning of developing fires by giving off the alarm sounds from its build-in alarm horn, based on Z-Wave technology. Zipato Smoke Sensor is Z-Wave Plus product, it supports security, OTA and all other new features of 500 Series Z-Wave chipset. |
|---|
Brand | Zipato |
|---|
Product Identifier | ph-psg01.eu |
|---|
OEM Version | HW: 1 FW: 1.23:01.24 |
|---|
Hardware Platform | SD3502 |
|---|
Z-Wave Version | 6.51.02 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Notification Sensor |
|---|
Role Type | ROLE_TYPE_SLAVE_SLEEPING_REPORTING |
|---|
Manufacturer ID | 0x0131 |
|---|
Product Type ID | 0x0002 |
|---|
Product ID | 0x001E |
|---|
User Icon | 0x0C01 |
|---|
Installer Icon | 0x0C01 |
|---|
Frequency Plans | EU: 869.85MHz, 868.40MHz |
|---|
Categories | Sensors |
|---|
Countries / Regions | European Union |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_BATTERY | Battery | 0x80 | 1 | COMMAND_CLASS_CONFIGURATION | Configuration | 0x70 | 1 | COMMAND_CLASS_SECURITY | Security S0 | 0x98 | 1 | COMMAND_CLASS_SENSOR_BINARY_V2 | Sensor Binary V2 | 0x30 | 2 | COMMAND_CLASS_VERSION_V2 | Version V2 | 0x86 | 2 | COMMAND_CLASS_WAKE_UP_V2 | Wake Up V2 | 0x84 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_FIRMWARE_UPDATE_MD_V2 | Firmware Update Meta-Data V2 | 0x7A | 2 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 | COMMAND_CLASS_NOTIFICATION_V4 | Notification V4 | 0x71 | 4 |
|
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Features | Feature | Values |
|---|
Battery Quantity | | Color | | Supported Notification Types | Value |
|---|
Smoke Alarm | Home Security |
| Battery Type | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
1 | 8 | 0 | Z-Wave Plus Lifeline |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
7 | Customer Function | Customer function switch, using bit control | 0 | 1 | 0 | 0 | 4 | From | To | Description |
|---|
4 | 4 | Notification type 0: Using Notification Report 1: Using Sensor Binary Report |
|
|
|---|
Texts | ID | Description | Value |
|---|
1 | Inclusion | 1. Have Z-Wave Controller entered inclusion mode.
2. Press test button three times within 1.5 seconds to enter the inclusion mode.
3. After the adding was successful, the device will wake to receive the setting from Z-Wave Controller about 20 seconds. | 2 | Exclusion | 1. Have Z-Wave Controller entered inclusion mode.
2. Pressing test button three times within 1.5 seconds to enter the exclusion mode. Node ID has been removed. | 5 | Factory Reset | Notice: Use this procedure only in the event that the primary controller is lost or otherwise inoperable.
1. Have Z-Wave Controller entered inclusion mode.
2. After the red LED flash 9 times, release the test button within 2 seconds.
3. IDs are removed and all settings will reset to factory default. | 4 | Device Wake-Up | After device is added to the network, it will wake-up once per day by default.When it wakes-up it will broadcast the “Wake Up Notification” message to the network, and wake-up 10 seconds
to receive the setting commands. The wake-up interval minimum
setting is 30 minutes, and maximum setting is 120 hours. Interval
step is 30 minutes. If you want to wake-up device immediately, please press the button once. The device will wake-up for 10 seconds. |
|
|---|
Supported Notification Types | Notification Type | Event / State |
|---|
Smoke Alarm | (Refer to parameters): State idle | Home Security | (Refer to parameters): State idle |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
