| Product Recognition | |
|---|
| Certification Number | ZC14-25080538 |
|---|
| Name | SmokeShield |
|---|
| Short Description | Aeotec SmokeShield. |
|---|

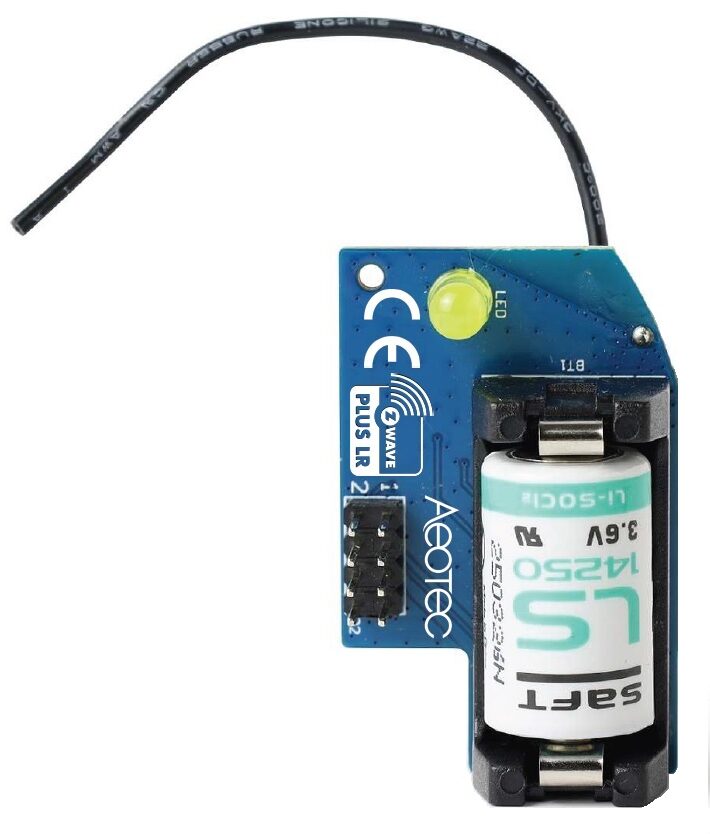

| Description | Aeotec SmokeShield is a module with Z-Wave wireless communication protocol.

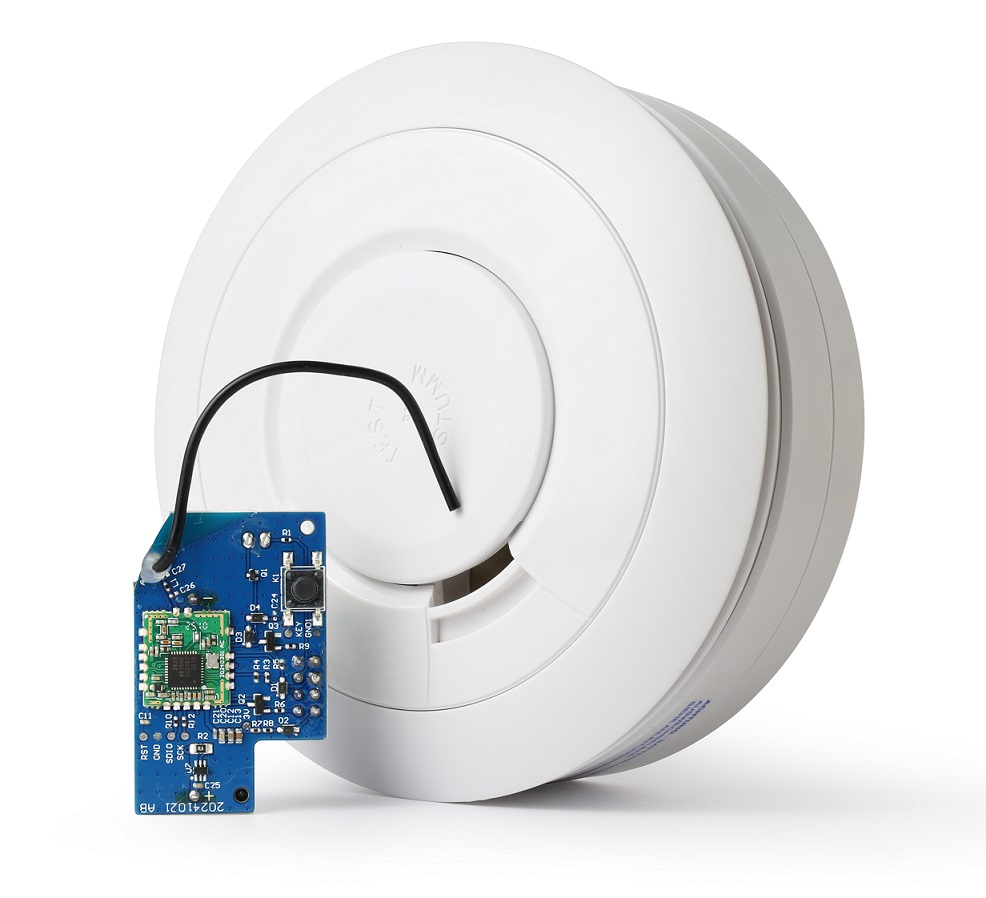

When SmokeShield is inserted into a specific Smoke detector (Ei650i/ Ei650iW), the Smoke detector becomes a Z-Wave smoke sensor, which can be used to detect the presence of smoke particles or whether a fire has occurred indoors. Once smoke or fire is detected, its buzzer will immediately emit a siren sound and report the smoke alarm notifications via Z-Wave wireless to your home gateway or associated devices. |
|---|
| Brand | Aeotec |
|---|
| Brand Owner | Aeotec Limited |
|---|
| Identifier | ZWA050 |
|---|
| Product Line | Z-Wave Product Line |
|---|
| Product URL | www.aeotec.com |
|---|
| OEM Version | HW: 50 FW: 00.54 |
|---|
| Hardware Platform | EFR32ZG23A |
|---|
| Z-Wave Version | 7.23.1 |
|---|
| Library Type | END_NODE_ENHANCED_232 |
|---|
| Device Type | Notification Sensor DT |
|---|
| Role Type | ROLE_TYPE_END_NODE_SLEEPING_REPORTING |
|---|
| Manufacturer ID | 0x0371 |
|---|
| Product Type ID | 0x0002 |
|---|
| Product ID | 0x0032 |
|---|
| User Icon | 0x0C01 |
|---|
| Installer Icon | 0x0C01 |
|---|
| Frequency Plans | EU_LR: 864.00MHz, 866.00MHz, EU: 869.85MHz, 868.40MHz |
|---|
| Categories | Sensors, Security Systems |
|---|
| Countries / Regions | European Union, Armenia, Bahrain, Cyprus, Moldova, Egypt, French Guiana, Georgia, Iraq, Jordan, Kazakhstan, Kuwait, Lebanon, Libya, Maldives, Mauritius, Nigeria, Oman, Philippines, Qatar, Saudi Arabia, South Africa, Turkmenistan, United Arab Emirates, ZU, Yemen |
|---|
| Supported Command Classes | | Identifier | Name | Key | Version |
|---|
| COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | | COMMAND_CLASS_ASSOCIATION_GRP_INFO_V3 | Association Group Information (AGI) V3 | 0x59 | 3 | | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | | COMMAND_CLASS_FIRMWARE_UPDATE_MD_V5 | Firmware Update Meta Data V5 | 0x7A | 5 | | COMMAND_CLASS_INDICATOR_V3 | Indicator V3 | 0x87 | 3 | | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 | | COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 | Multi Channel Association V3 | 0x8E | 3 | | COMMAND_CLASS_VERSION_V3 | Version V3 | 0x86 | 3 | | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | | COMMAND_CLASS_SECURITY_2 | Security 2 | 0x9F | 1 | | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | | COMMAND_CLASS_NOTIFICATION_V8 | Notification V8 | 0x71 | 8 | | COMMAND_CLASS_WAKE_UP_V2 | Wake Up V2 | 0x84 | 2 | | COMMAND_CLASS_BATTERY | Battery | 0x80 | 1 | | COMMAND_CLASS_SENSOR_BINARY_V2 | Binary Sensor V2 | 0x30 | 2 | | COMMAND_CLASS_CONFIGURATION_V4 | Configuration V4 | 0x70 | 4 |
|
|---|
| S2 Classes | S2_AUTHENTICATED, S2_UNAUTHENTICATED |
|---|
| Documents | |
|---|
| Features | | Feature | Values |
|---|
| Battery Quantity | | | Battery Type | | | Firmware Updatable | | Value |
|---|
| Updatable by Consumer by RF |
|
|
|---|
| Association Groups | | Group Number | Maximum Nodes Supported | End Point ID | Group Name | Profile |
|---|
| 1 | 10 | 0 | Lifeline | 0x0001 | | 2 | 10 | 0 | Smoke Action | 0x7101 | | 3 | 10 | 0 | Smoke Alarm | 0x7101 |
|
|---|
| Configuration Parameters | | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value |
|---|
| 1 | Enable/disable basic set | Enable/disable basic set to group 2 | 2 | 1 | 0 | 0 | 0x00 | | 2 | Value of On-Command | What value of Basic Set On to group 2 | 1 | 1 | 0 | 0 | 0xFF | | 3 | Value of Off-Command | What value of Basic Set Off to group 2 | 1 | 1 | 0 | 0 | 0x00 | | 4 | Low battery threshold | Configure the low battery threshold | 1 | 1 | 0 | 0 | 0x14 | | 80 | Enable Binary Sensor report | Enable Binary Sensor report | 2 | 1 | 0 | 0 | 0x00 | | 111 | Timed detection | how often to check battery and header | 1 | 4 | 0 | 0 | 0x00015180 | | 252 | lock configuration setting | lock configuration setting | 2 | 1 | 0 | 0 | 0x00 |
|
|---|
| Texts | | ID | Description | Value |
|---|
| 1 | Classic Inclusion | 1. Turn your main controller or gateway into adding / inclusion mode.
2. Quick press the Action Button on product twice. | | 2 | Classic Exclusion | 1. Turn your main controller or gateway into removing/ exclusion mode.
2. Quick press the Action Button on product twice. | | 4 | Wake-Up Procedure | Press and hold the Action Button for 2 seconds and then release the button. | | 5 | Factory Reset Procedure | Press and hold the Action Button for 12 seconds and then release the button. | | 8 | Where to find S2 DSK on product | Page 8-9 in the SPEC-ZWA050 SmokeShield Manual |
|
|---|
| Supported Notification Types | | Notification Type | Event / State |
|---|
| Smoke Alarm | State Idle | | Smoke Alarm | Sensor status: Smoke detected | | Smoke Alarm | Alarm status: Smoke alarm test | | Smoke Alarm | Maintenance status: Replacement required, End-of-life | | Home Security | (Refer to parameters): State idle | | Home Security | Cover status: Tampering, product cover removed | | System | (Refer to parameters): State idle | | System | HW status: System hardware failure |
|
|---|
| Supports NWI | Yes |
|---|
| Supports Explorer Frames | Yes |
|---|
| Supports SmartStart | Yes |
|---|
