Product Recognition | |
|---|
Certification Number | ZC10-20076936 |
|---|

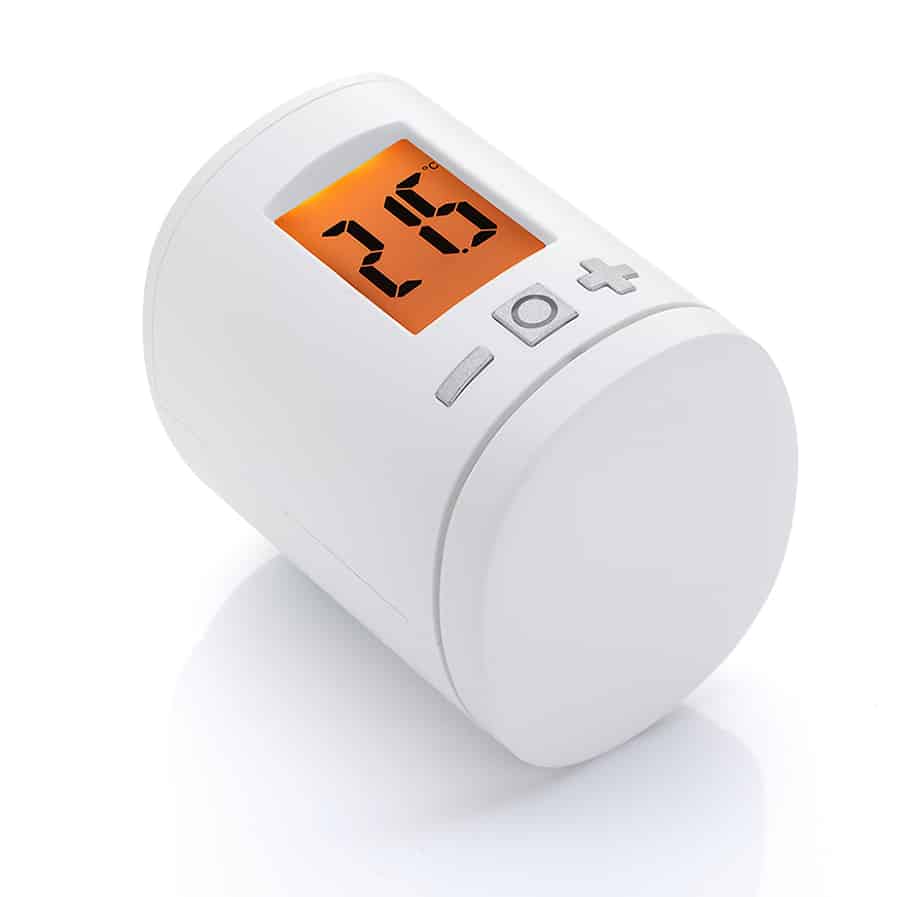

Name | Spirit Z-Wave Plus |
|---|
Short Description | Smart Radiator Z-Wave Thermostat including intelligent regulation algorithm for European water radiators. FLiRS for quick response times and LED Button for user interaction signalling. |
|---|
Long Description | • Easy control for water radiators from any Z-Wave Controller
• Fits most European water radiators (wide range of additional adaptors for different manufacturers available)
• FLiRS for quick response time
• LED Backlit LCD
• Metal nut for reliable connection to the radiator
• 2 buttons for easy temperature regulation
• Battery level indicator
• Child Lock
• Over the Air update
• UK-Mode for upside down installation
• Open Window detection
• Automatic frost protection |
|---|
Brand | EUROtronic Technology GmbH |
|---|
Product Identifier | 4260012711110 |
|---|
OEM Version | HW: 49 FW: 0.16:00.10 |
|---|
Hardware Platform | ZM5202 |
|---|
Z-Wave Version | 6.71.01 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Thermostat - HVAC |
|---|
Role Type | ROLE_TYPE_SLAVE_SLEEPING_LISTENING |
|---|
Manufacturer ID | 0x0148 |
|---|
Product Type ID | 0x0005 |
|---|
Product ID | 0x0001 |
|---|
User Icon | 0x1200 |
|---|
Installer Icon | 0x1200 |
|---|
Frequency Plans | EU: 869.85MHz, 868.40MHz |
|---|
Categories | Thermostats, HVAC |
|---|
Countries / Regions | European Union |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_SWITCH_MULTILEVEL | Switch Multilevel | 0x26 | 1 | COMMAND_CLASS_SENSOR_MULTILEVEL_V5 | Sensor Multilevel V5 | 0x31 | 5 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_BATTERY | Battery | 0x80 | 1 | COMMAND_CLASS_BASIC | Basic | 0x20 | 1 | COMMAND_CLASS_CONFIGURATION | Configuration | 0x70 | 1 | COMMAND_CLASS_SECURITY | Security S0 | 0x98 | 1 | COMMAND_CLASS_THERMOSTAT_MODE_V3 | Thermostat Mode V3 | 0x40 | 3 | COMMAND_CLASS_THERMOSTAT_SETPOINT_V3 | Thermostat Setpoint V3 | 0x43 | 3 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_VERSION_V2 | Version V2 | 0x86 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_NOTIFICATION_V8 | Notification V8 | 0x71 | 8 | COMMAND_CLASS_SECURITY_2 | Security S2 | 0x9F | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC | Manufacturer Specific | 0x72 | 1 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | COMMAND_CLASS_PROTECTION | Protection | 0x75 | 1 | COMMAND_CLASS_FIRMWARE_UPDATE_MD_V3 | Firmware Update Meta-Data V3 | 0x7A | 3 |
|
|---|
S2 Classes | S2_UNAUTHENTICATED |
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product Manual in English | |
|
|---|
Features | Feature |
|---|
Battery Quantity | Battery Type | Firmware Updatable | Sensors | Supported Notification Types | Thermostat HVAC Systems Supported | Thermostat Modes |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
1 | 1 | 0 | Z-Wave Plus Lifeline |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
1 | LCD invert | Inverts the LCD orientation | 0 | 1 | 1 | 1 | 0 | From | To | Description |
|---|
0 | 0 | Normal orientation | 1 | 1 | LCD content inverted |
| 3 | Backlight | Enables or disables the LCD-Backlight. | 0 | 1 | 1 | 1 | 1 | From | To | Description |
|---|
0 | 0 | Backlight disabled | 1 | 1 | Backlight enabled |
| 4 | Battery report | Enables or disables unsolicited battery reporting once a day. | 0 | 1 | 1 | 1 | 1 | From | To | Description |
|---|
0 | 0 | Battery reporting disabled | 1 | 1 | Battery reporting enabled |
| 5 | Measured temperature report | Reports the measured roomtemperature on change. | 0 | 1 | 1 | 50 | 5 | From | To | Description |
|---|
0 | 0 | Reporting disabled | 1 | 50 | Reporting Delta in 1/10 Celcius |
| 6 | Valve percentage report | Reports the valve percentage on change. | 0 | 1 | 1 | 100 | 0 | From | To | Description |
|---|
0 | 0 | Reporting disabled | 1 | 100 | Reporting Delta in percent |
| 7 | Window open detection | Configures the sensitivity of the window open detection. Sensitivity level: 1 low 2 medium 3 high | 0 | 1 | 1 | 3 | 2 | From | To | Description |
|---|
0 | 0 | Detection disabled | 1 | 3 | Sensitivity level |
| 8 | Measured temperature offset | NOTE: The minimum value of this parameter is -128 as per the Parameter Value ranges below. This parameter configures an offset for the measured temperature. Set the offset to -128 (0x80) if measured temperature is provided externally. | 0 | 1 | 0 | 50 | 0 | From | To | Description |
|---|
-128 | -128 | Temperature is supplied externaly | -50 | 50 | Offset in 1/10 Celcius |
|
|
|---|
Texts | ID | Description | Value |
|---|
1 | Classic Inclusion | Start Inclusion mode of your primary Z-Wave Controller.
Press the Boost-Button. | 2 | Classic Exclusion | Start Exclusion mode of your primary Z-Wave Controller.
Now press and hold the boost button of the Spirit Z-Wave Plus for at least 5 seconds. | 5 | Factory Reset Procedure | Please use this procedure only when the network primary controller is missing or otherwise inoperable.
Remove batteries.
Press and hold boost button.
While still holding boost button insert batteries.
The LCD shows RES. Release boost button.
To perform the factory reset press boost button. | 4 | Wake-Up Procedure | Wake up the product so that mailboxed commands are sent to it by pressing the boost button. |
|
|---|
Supported Notification Types | Notification Type | Event / State |
|---|
Power Management | (Refer to parameters): State idle | System | (Refer to parameters): State idle |
|
|---|
Supported Multilevel Sensors | Multilevel Sensor Type |
|---|
Air temperature |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Is Flirs | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
