Certification Number	ZC10-16015001

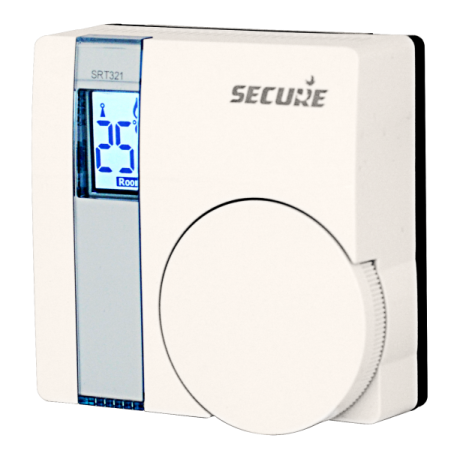

Name	SRT-321 (Thermostat-HVAC)
Short Description	The SRT321 is a wireless electronic battery powered room thermostat that control central heating systems where the demand temperature can be set locally or remotely to a third party device. The SRT321 also has the capability to act as a temperature sensor.
Long Description	The thermostat includes TPI software that optimises boiler firing to minimise overshooting of temperature in a heated environment. It has been proved that TPI controllers provide considerable energy savings over standard heating controllers. By using interoperable radio solutions the user can remotely change the set point, read the temperature or receive battery reports. It makes this device an ideal partner for use with a home gateway for web enabled apps allowing you to remotely control your heating while on the move. You no longer have to worry about returning to a cold house as long as you have a phone or tablet PC handy. By combining ease of use, ease of installation and intelligent control this thermostat is suitable for use in most heating systems.
Brand	Secure Controls
Product Identifier	MAX10U-734
OEM Version	HW: 1 FW: 1.00
Hardware Platform	ZM5202
Z-Wave Version	6.51.06
Library Type	CONTROLLER_PORTABLE
Device Type	Thermostat - HVAC
Role Type	ROLE_TYPE_CONTROLLER_PORTABLE_REPORTING
Manufacturer ID	0x0059
Product Type ID	0x0001
Product ID	0x0005
User Icon	0x1200
Installer Icon	0x1200
Frequency Plans	EU: 869.85MHz, 868.40MHz
Categories	Thermostats
Countries / Regions	European Union
Controlled Command Classes	Identifier Name Key Version COMMAND_CLASS_THERMOSTAT_MODE Thermostat Mode 0x40 1 COMMAND_CLASS_SWITCH_BINARY Switch Binary 0x25 1
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual SRT321 User MAnual.pdf
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 3 4 0 Nodes controlled by Switch Binary SET command. 5 4 0 Nodes to receive Thermostat Set Point Reports. 2 4 0 Nodes controlled by Thermostat Mode SET command. 6 4 0 Nodes to receive unsolicited Multilevel Sensor Reports. 4 4 0 Nodes to receive unsolicited Battery Level Reports or Low Battery Warnings. 1 1 0 Z-Wave Plus Lifeline group, SRT321 will send unsolicited Battery Level Report, Thermostat Set Point Report and unsolicited Multilevel Sensor Report to lifeline group.
Configuration Parameters	Parameter Number Name Description Format Size Min Value Max Value Default Value Parameter Values 1 Enables Temperature Sensor controls the use of the temperature sensor on the device 0 1 0 0 255 From To Description 0 127 Disables the temperature sensor 128 255 Enables temperature sensor 2 Temperature Scale Sensor will report temperature in this scale 0 1 0 0 0 From To Description 0 127 Celsius 128 255 Fahrenheit 3 Delta Temperature defines the temperature steps of the heating control value is 0.1˚C. (e.g. to configure 2˚C delta temperature write 2*10 = 20) 0 1 0 0 10 From To Description 0 100 Delta Temperature in 0.1˚C steps
Texts	ID Description Value 2 Exclusion STEP 1: On the SRT321, Set DIL switch 1 on the back of the unit to 'ON' position, scroll through the function menu by rotating the dial, select ""E"" and press the dial to activate Exclusion process. Now the character ""E"" starts flashing. STEP 2: On the 3rd party device, select Exclusion for removing device from SRT321's network. After successful Exclusion SRT321 displayed ""EP"" other wise displayed ""EF"" (Exclusion fail). Note: Once the character starts flashing the installer has 60 seconds to activate the 3rd party device. After successful Exclusion set DIL switch 1 to 'OFF' position to operate SRT321 in normal operation. If the Exclusion process has failed more than once, try moving the SRT321 to another position and repeat the Exclusion steps. 1 Inclusion STEP 1: On the SRT321, set DIL switch 1 on the back of the unit to 'ON' position, scroll through the function menu by rotating the dial, select ""I"" and press the dial to activate Inclusion process. Now the character ""I"" starts flashing. STEP 2: On the 3rd party device, select Inclusion for adding a device into SRT321's network. After successful inclusion SRT321 displayed ""IP"" other wise displayed ""IF"" (Inclusion fail). Note: Once the character starts flashing the installer has 60 seconds to activate the 3rd party device. After successful Inclusion set DIL switch 1 to 'OFF' position to operate SRT321 in normal operation. If the inclusion process fails more than once, the 3rd party device may be already included in another network. So first exclude and then include the device. 5 Factory Reset Please use this procedure only when the primary controller is missing or otherwise inoperable. To reset the thermostat Set DIL switch 1 on the back of the unit to 'ON' position, scroll through the function menu by rotating the dial, select ""P"" and press the dial twice on the target device to execute reset. Note: After successful operation device displayed ""PP"". It will put the device in factory default, that include setting all the configuration, Association to factory default and removing the device from Z-Wave network. 3 Learn Mode (adding another controller) STEP 1: On the another Z-Wave controller, select Include for adding SRT321 to the network. STEP 2: On the SRT321, Set DIL switch 1 on the back of the unit to 'ON' position, scroll through the function menu by rotating the dial, select ""L"" and press the dial to start Learn process. Now the character ""L"" starts flashing. After successful operation SRT321 displayed ""LP"" other wise displayed ""LF"" (Learn fail). Note: Once the character starts flashing the installer has 20 seconds to activate the 3rd party controller unit (2 seconds classic inclusion, than after 3 retries for NWI inclusion). After successful Learn set DIL switch 1 to 'OFF' position to operate SRT321 in normal operation. If the Learn process has failed more than once, the SRT321 may be already included in another network. So first exclude and then include the SRT321. 4 Device Wake-Up SRT321 will wake-up regularly and announce the wakeup state by sending Wakeup Notification to the configured node ID if Wakeup Interval and valid node ID is set. To forcefully wake up the device to send Wakeup notification do the following steps: Set DIL switch 1 on the back of the unit to 'ON' position, and than back to the 'OFF' position. Note: It is possible to set the node ID to 255 to send wakeup notifications as broadcast. In this mode device takes more time to go to sleep and drains battery faster, but can notify all it's direct neighbors about a wakeup.
Supports NWI	Yes
Supports Explorer Frames	Yes
