Product Recognition
Certification Number	ZC10-16075133

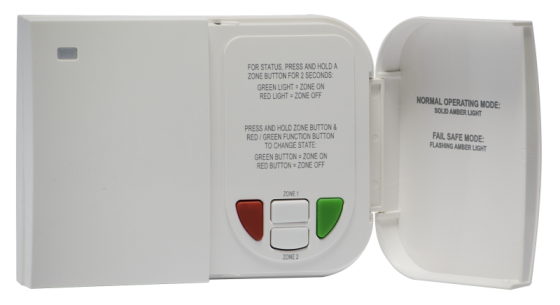

Name	SSR 302 (Dual Channel On/Off Power switch)
Short Description	The SSR 302 is a 2-channel relay/switch, it forms part of central heating and hot water control system, it can be operated by any third party controllers/Thermostat using ‘Binary Switch CC’ commands.
Long Description	The SSR 302 is a 2-channel relay/switch, it forms part of central heating and hot water control system, it can be operated by any third party controllers/Thermostat using ‘Binary Switch CC’ commands. SSR 302 will act as a repeater once added into the Z-Wave network, providing an alternative communication route for units which otherwise would not be within communication distance of each other. SSR 302 has a fail-safe mode where by the relay is turned OFF if another 'Thermostat Mode SET' command has not been received within 60 minutes.
Brand	Secure Controls (UK)
Product Identifier	MAX10Z-382
OEM Version	HW: 1 FW: 2.1
Hardware Platform	ZM5202
Z-Wave Version	6.51.06
Library Type	SLAVE_ROUTING
Device Type	On/Off Power Switch
Role Type	ROLE_TYPE_SLAVE_ALWAYS_ON
Manufacturer ID	0x0059
Product Type ID	0x0003
Product ID	0x0006
User Icon	0x0700
Installer Icon	0x0700
Frequency Plans	EU: 869.85MHz, 868.40MHz
Categories	Thermostats, On/Off Switches/Devices, HVAC
Countries / Regions	European Union
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual SSR 302 User Manual.pdf
Features	Feature Values Color Value White Neutral Wire Required Electric Load Type Value Inductive (e.g. Motor) IP (Ingress Protection) Rated Switch Load Capacity Current Value 3A Loads Controlled Value 2
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 4 0 Z-Wave Plus Lifeline, SSR 302 will send unsolicited 'Binary Switch Report' to lifeline group whenever its relay status change.
Texts	ID Description Value 5 Factory Reset ""Please use this procedure only when the primary controller is missing or otherwise inoperable."" Follow ‘Exclusion’ steps. 6 Additional Special Features SSR 302 has a fail-safe mode where by the relay is turned OFF if another 'Thermostat Mode SET' command has not been received within 60 minutes. 1 Inclusion STEP 1: Ensure the LED is flashing RED on the SSR 302, if not follow the ‘Exclusion’ steps first. STEP 2: Put the 3rd party controller into inclusion mode. STEP 3: Press and hold both white buttons on the SSR 302 until the LED starts flashing green. The SSR 302 has been added onto the network and the LED will go solid amber. NOTE: If the LED does not go solid amber then the add process has been unsuccessful. 2 Exclusion STEP 1: Put the 3rd party controller into exclusion mode. STEP 2: Press and hold the two white buttons on the SSR 302. The SSR 302 has been removed from the network when the LED starts flashing red. NOTE: If the LED does not flash red then the remove process has been unsuccessful.
Supports NWI	Yes
Supports Explorer Frames	Yes
