Product Recognition
Certification Number	ZC10-16075134

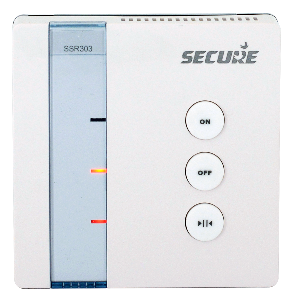

Name	SSR 303 (Single Channel On/Off Power switch)
Short Description	The SSR 303 is a single channel relay/switch, it forms part of central heating control system, it can be operated by any third party controllers/Thermostat using ‘Binary Switch CC’ commands.
Long Description	The SSR 303 is a single channel relay/switch, it forms part of central heating control system, it can be operated by any third party controllers/Thermostat using ‘Binary Switch CC’ commands. SSR 303 will act as a repeater once added into the Z- Wave network, providing an alternative communication route for units which otherwise would not be within communication distance of each other. SSR 303 has a fail-safe mode where by the relay is turned OFF if another 'Thermostat Mode SET' command has not been received within 60 minutes.
Brand	Secure Controls (UK)
Product Identifier	MAX10Z-384
OEM Version	HW: 1 FW: 2.1
Hardware Platform	ZM5202
Z-Wave Version	6.51.06
Library Type	SLAVE_ROUTING
Device Type	On/Off Power Switch
Role Type	ROLE_TYPE_SLAVE_ALWAYS_ON
Manufacturer ID	0x0059
Product Type ID	0x0003
Product ID	0x0005
User Icon	0x0700
Installer Icon	0x0700
Frequency Plans	EU: 869.85MHz, 868.40MHz
Categories	Thermostats, On/Off Switches/Devices, HVAC
Countries / Regions	European Union
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual SSR 303 User Manual.pdf
Features	Feature Values Color Value White IP (Ingress Protection) Rated Electric Load Type Value Inductive (e.g. Motor) Switch Load Capacity Current Value 3A Neutral Wire Required
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 4 0 Z-Wave Plus Lifeline group, SSR 303 will send unsolicited SWITCH BINARY REPORT to lifeline group.
Texts	ID Description Value 1 Inclusion STEP 1: Ensure the Network LED is flashing on the SSR 303, if not follow ‘Exclusion’ steps first. STEP 2: Put the 3rd party controller into inclusion mode. STEP 3: Press and hold the network button on the SSR 303 until the ‘ON’ LED’s start flashing. The SSR 303 has been added onto the network when the ‘OFF’ LED goes solid red. NOTE: If the ON LED does not flash then the add process has been unsuccessful. 2 Exclusion STEP 1: Put the 3rd party controller into exclusion mode. STEP 2: Press and hold the network button on the SSR 303. The SSR 303 has been removed from the network when the Network LED starts flashing. NOTE: If the Network LED does not flash the remove process has been unsuccessful. 5 Factory Reset ""Please use this procedure only when the primary controller is missing or otherwise inoperable."" Follow ‘Exclusion’ steps. 6 Additional Special Features SSR 303 has a fail-safe mode where by the relay is turned OFF if another 'Thermostat Mode SET' command has not been received within 60 minutes.
Supports NWI	Yes
Supports Explorer Frames	Yes
