Product Recognition
Certification Number	ZC10-14090019

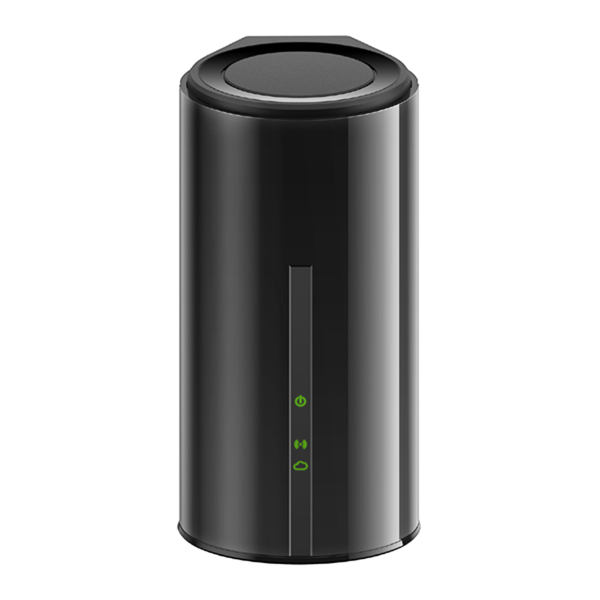

Name	Staples Connect Hub powered by D-Link
Short Description	With the Staples Connect Hub powered by D-Link (DCH-G021) and a smartphone tablet or PC, you have the ability to remotely control all of your enabled electronics with one easy to use app.
Long Description	With Staples Connect™ and a smartphone, tablet or PC, you have the ability to remotely control all of your enabled electronics with one easy-to-use app. This gives you the freedom to control all of your favorite home brands. Plus they can communicate with each other for a wholly integrated and automated home.
Brand	D-Link Corporation
Product Identifier	DCH-G021
OEM Version	28
Hardware Platform	SD3503
Z-Wave Version	6.51.01
Library Type	CONTROLLER_STATIC
Device Type	Central Controller
Role Type	ROLE_TYPE_CONTROLLER_CENTRAL_STATIC
Manufacturer ID	0x0108
Product Type ID	0x2801
Product ID	0x0001
Frequency Plans	US: 916.00MHz, 908.40MHz
Categories	All Controllers, Gateway Controller
Countries / Regions	United States of America
Controlled Command Classes	Identifier Name Key Version COMMAND_CLASS_ASSOCIATION Association 0x85 1 COMMAND_CLASS_SWITCH_MULTILEVEL Switch Multilevel 0x26 1 COMMAND_CLASS_ASSOCIATION_GROUP_INFORMATION Association Group Information V1 0x59 0 COMMAND_CLASS_DOOR_LOCK Door Lock 0x62 1 COMMAND_CLASS_POWERLEVEL Powerlevel 0x73 1 COMMAND_CLASS_THERMOSTAT_FAN_MODE Thermostat Fan Mode 0x44 1 COMMAND_CLASS_USER_CODE User Code 0x63 1 COMMAND_CLASS_MULTI_CHANNEL Multi-Channel V1 0x60 0 COMMAND_CLASS_ALARM Alarm 0x71 1 COMMAND_CLASS_BATTERY Battery 0x80 1 COMMAND_CLASS_WAKE_UP Wake Up 0x84 1 COMMAND_CLASS_TIME Time 0x8A 1 COMMAND_CLASS_TIME_PARAMETERS Time Parameters 0x8B 1 COMMAND_CLASS_THERMOSTAT_OPERATING_STATE Thermostat Operating State 0x42 1 COMMAND_CLASS_THERMOSTAT_MODE Thermostat Mode 0x40 1 COMMAND_CLASS_SENSOR_MULTILEVEL Sensor Multilevel 0x31 1 COMMAND_CLASS_BASIC Basic 0x20 1 COMMAND_CLASS_CONFIGURATION Configuration 0x70 1 COMMAND_CLASS_INDICATOR Indicator 0x87 1 COMMAND_CLASS_CRC_16_ENCAP CRC16 Encapsulation 0x56 1 COMMAND_CLASS_SECURITY Security S0 0x98 1 COMMAND_CLASS_BARRIER_OPERATOR Barrier Operator 0x66 1 COMMAND_CLASS_THERMOSTAT_SETPOINT Thermostat Setpoint 0x43 1 COMMAND_CLASS_MANUFACTURER_SPECIFIC Manufacturer Specific 0x72 1 COMMAND_CLASS_VERSION Version 0x86 1 COMMAND_CLASS_SCENE_CONTROLLER_CONF Scene Controller Conf 0x2D 1 COMMAND_CLASS_SCHEDULE_ENTRY_LOCK Schedule Entry Lock 0x4E 1
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual Connect_insert_FINAL_Outline.pdf
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 1 0 Z-Wave Plus Lifeline
Texts	ID Description Value 23 Controller Inclusion Click “Device Assistant” Click “Add Device” Select the Z-Wave product from the Catalog. Click “Find” Select your specific device Follow the onscreen instructions and click “add” which adds the product to the network. 24 Controller Exclusion Click “Device Assistant” Click “Remove Device” Click “Z-Wave” Follow the product manufactures removal instructions and then click “Remove” to exclude the Z-Wave device. 3 Learn Mode (adding another controller) On home tile screen click “Hub Settings” Click “Advanced Options” Click “Learn ZW” under (Learn Z-Wave Network) and follow the on screen instructions. 5 Factory Reset On home tile screen click “Hub Settings” Click “Advanced Options” Click “Restore” (under Restore to Factory Settings) and follow the on screen instructions. 4 Device Wake-Up N/A 6 Additional Special Features N/A
Supports NWI	Yes
Supports Explorer Frames	Yes
