Product Recognition | |
|---|
Certification Number | ZC12-21040226 |
|---|

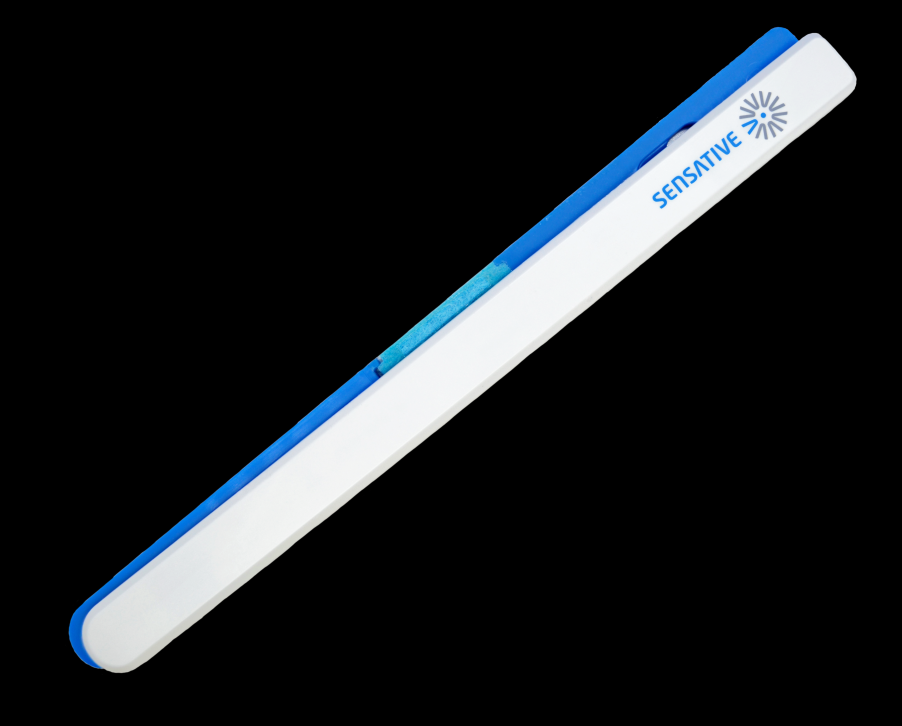

Name | Strips Drip 700 |
|---|
Short Description | Strips Drip is an ultra-thin multi sensor and the thinnest water leakage and temperature sensor in the world, detecting the presence of water and reporting temperature levels. The thinness, up to 20 years battery life and multiple mounting possibilities makes it very versatile. |
|---|
Long Description | Strips Drip is an ultra-thin multi sensor and the thinnest water leakage and temperature sensor in the world, detecting the presence of water and reporting temperature levels. The thinness, up to 20 years battery life and multiple mounting possibilities makes it very versatile. Strips Drips will detect even a few drops of water and report within seconds.
Strips Drip sends an alarm signal if it detects water. Its unique design allows it to be easily placed almost anywhere, generally in most places other sensors simply can’t fit. With soaking pads integrated in the mounting plate even a few drops of water will be detected. The temperature reporting feature alerts occupants of potentially dangerous freezing or overheating conditions, keeping residents safe and informed.
Strips Drip is a very reliable water leak sensor. The unique design and mounting plate make it easy to place nearly invisibly under sinks, in bathrooms, and under appliances to sense and report dangerous or potentially damaging conditions when connected to your Z-Wave smart home system. With a strong adhesive and mounting plate that can be screwed down, Strips Drip can be adhered securely to any surface to ensure permanent placement. Sensitivity is also adjustable and can be set per user preferences.
700 Series Drip can be used both indoors and out and the integrated custom battery gives Strips an expected lifetime of 10+ years. For you, this means no hassles needing to change or charge batteries in your Strips sensors for the lifetime of the product!
Z-Wave Plus 700 series sensors bring a wealth of additional valued features such as longer range, low power consumption for extended battery life and SmartStart technology for instant enrolling. With SmartStart, device inclusion can be initiated automatically by simply removing the included magnet. The Z-Wave gateway then performs the inclusion process in the background, without the need for user interaction. 700 Series provides a direct range of 100 meters, an improvement of 60 meters over the 500 series and also includes the industry’s best S2 security, providing Strips Drip with the ultimate combination of features to securely protect your home. |
|---|
Brand | Sensative |
|---|
Product Identifier | 11 04 021 |
|---|
Product Line | Strips |
|---|
OEM Version | HW: 2 FW: 8.26 |
|---|
Hardware Platform | ZGM130 |
|---|
Z-Wave Version | 7.13.7 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Notification Sensor |
|---|
Role Type | ROLE_TYPE_SLAVE_SLEEPING_REPORTING |
|---|
Manufacturer ID | 0x019A |
|---|
Product Type ID | 0x0004 |
|---|
Product ID | 0x000B |
|---|
User Icon | 0x0D1F |
|---|
Installer Icon | 0x0D1F |
|---|
Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
Categories | Sensors |
|---|
Countries / Regions | United States of America |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_CONFIGURATION_V4 | Configuration V4 | 0x70 | 4 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 | Multi-Channel Association V3 | 0x8E | 3 | COMMAND_CLASS_INDICATOR_V3 | Indicator V3 | 0x87 | 3 | COMMAND_CLASS_BATTERY | Battery | 0x80 | 1 | COMMAND_CLASS_APPLICATION_STATUS | Application Status | 0x22 | 1 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_WAKE_UP_V2 | Wake Up V2 | 0x84 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_FIRMWARE_UPDATE_MD_V5 | Firmware Update Meta-Data V5 | 0x7A | 5 | COMMAND_CLASS_ASSOCIATION_GRP_INFO_V3 | Association Group Information V3 | 0x59 | 3 | COMMAND_CLASS_NOTIFICATION_V8 | Notification V8 | 0x71 | 8 | COMMAND_CLASS_SECURITY_2 | Security S2 | 0x9F | 1 | COMMAND_CLASS_SENSOR_MULTILEVEL_V11 | Sensor Multilevel V11 | 0x31 | 11 | COMMAND_CLASS_VERSION_V3 | Version V3 | 0x86 | 3 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
S2 Classes | S2_UNAUTHENTICATED, S2_AUTHENTICATED |
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product Manual | |
|
|---|
Features | Feature | Values |
|---|
Battery Quantity | | Color | | Firmware Updatable | Value |
|---|
Updatable by Consumer by RF |
| Outdoor Use | | Battery Type | Value |
|---|
Built in 3.0V LiMnO2 |
|
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Group Name | Profile | Description |
|---|
1 | 1 | 0 | Lifeline | 0x0001 | Group 1, the Lifeline group, includes all signals that are sent automatically to keep a central controller notified of the status of Strips Drip 700. This includes the battery level, the moistureleakage and temperature levels, and moistureleakage, high and low temperature notifications. |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
2 | LED alarm event reporting | Turn On or Off LED for specific event indications (ex. alarms). | 3 | 1 | 0 | 1 | 1 | From | To | Description |
|---|
0 | 0 | Off | 1 | 0 | On |
| 4 | Temperature reporting type | Turn On or Off temperature sensor value reporting (does not affect temperature alarms) | 3 | 1 | 0 | 3 | 0 | From | To | Description |
|---|
0 | 0 | Off | 1 | 0 | On. Reports the actual value when the temperature is changed according to parameter 26 since the last report or at least according to the reporting period set in the config parameter 25. | 2 | 0 | On. Reports the actual value periodically based on the config parameter 25. | 3 | 0 | On. The average temperature during the period is sent periodically during every wake up interval. |
| 5 | Temperature reporting unit | Select the temperature unit | 3 | 1 | 0 | 1 | 0 | From | To | Description |
|---|
0 | 0 | Celsius | 1 | 0 | Fahrenheit |
| 6 | Temperature alarms | Turn On or Off the temperature alarm | 3 | 1 | 0 | 1 | 0 | From | To | Description |
|---|
0 | 0 | Off | 1 | 0 | On |
| 8 | Low temperature alarm level | Select a low temperature alarm level | 1 | 1 | -20 | 60 | 5 | From | To | Description |
|---|
-20 | 60 | (Degree C) |
| 23 | Perform leakage/moisture sensor calibration | Should be performed when Drip is mounted correctly and absolutely dry to calibrate the "zero-level". A Multilevel Sensor Report with the Moisture value is sent after calibration is performed | 3 | 1 | 0 | 1 | 0 | From | To | Description |
|---|
0 | 0 | Device resets to this value after performing capacitance calibration and sends a report with value 0 to the gateway (as recommended by Z-Wave Specifications.) | 1 | 0 | Perform Calibration |
| 24 | Temperature offset | The offset value is used to calibrate temperature reports in the actual temperature. | 1 | 1 | -100 | 100 | 0 | From | To | Description |
|---|
-100 | 100 | [=-10.0 to +10.0 (Degree C)] |
|
|
|---|
Texts | ID | Description | Value |
|---|
4 | Wake-Up Procedure | 1. Take the magnet and move it to the rounded edge and wait for the blink, then move the magnet away.
2. Repeat this 3 times. A final short blink will confirm that the user-command was successful. | 5 | Factory Reset Procedure | You may need to reset Strips if your Z-Wave controller is missing or not responding. Follow the instructions for Wake Up above, but on the 3rd
repetition, keep the magnet at the rounded edge for 10 seconds. A long LED signal indicates success. | 8 | Where to find S2 DSK on product | Strips Drip 700 is a SmartStart enabled product and can be added to a Z-Wave
network by using SmartStart. Start by scanning the Z-Wave QR Code present on
the back label of the Strip, or on the DSK leaflet present in the box. Strips can be
added to both secure and non-secure controllers and with or without SmartStart. | 1 | Classic Inclusion | Place the controller into pairing or exclude mode and perform the "wake up" pattern as described below.
1. Take the magnet and move it to the rounded edge and wait for the blink, then move the magnet away.
2. Repeat this 3 times. A final short blink will confirm that the user-command was successful. | 2 | Classic Exclusion | Place the controller into exclude mode and perform the "wake up" pattern as described below.
1. Take the magnet and move it to the rounded edge and wait for the blink, then move the magnet away.
2. Repeat this 3 times. A final short blink will confirm that the user-command was successful. |
|
|---|
Supported Notification Types | Notification Type | Event / State |
|---|
Heat Alarm | (Refer to parameters): State idle | Heat Alarm | Heat sensor status: Overheat detected | Heat Alarm | Heat sensor status: Under heat detected | Water Alarm | (Refer to parameters): State idle | Water Alarm | Sensor status: Water leak detected | Home Security | (Refer to parameters): State idle |
|
|---|
Supported Multilevel Sensors | Multilevel Sensor Type |
|---|
Air temperature | Moisture |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Supports SmartStart | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
