Product Recognition
Certification Number	ZC10-16115328

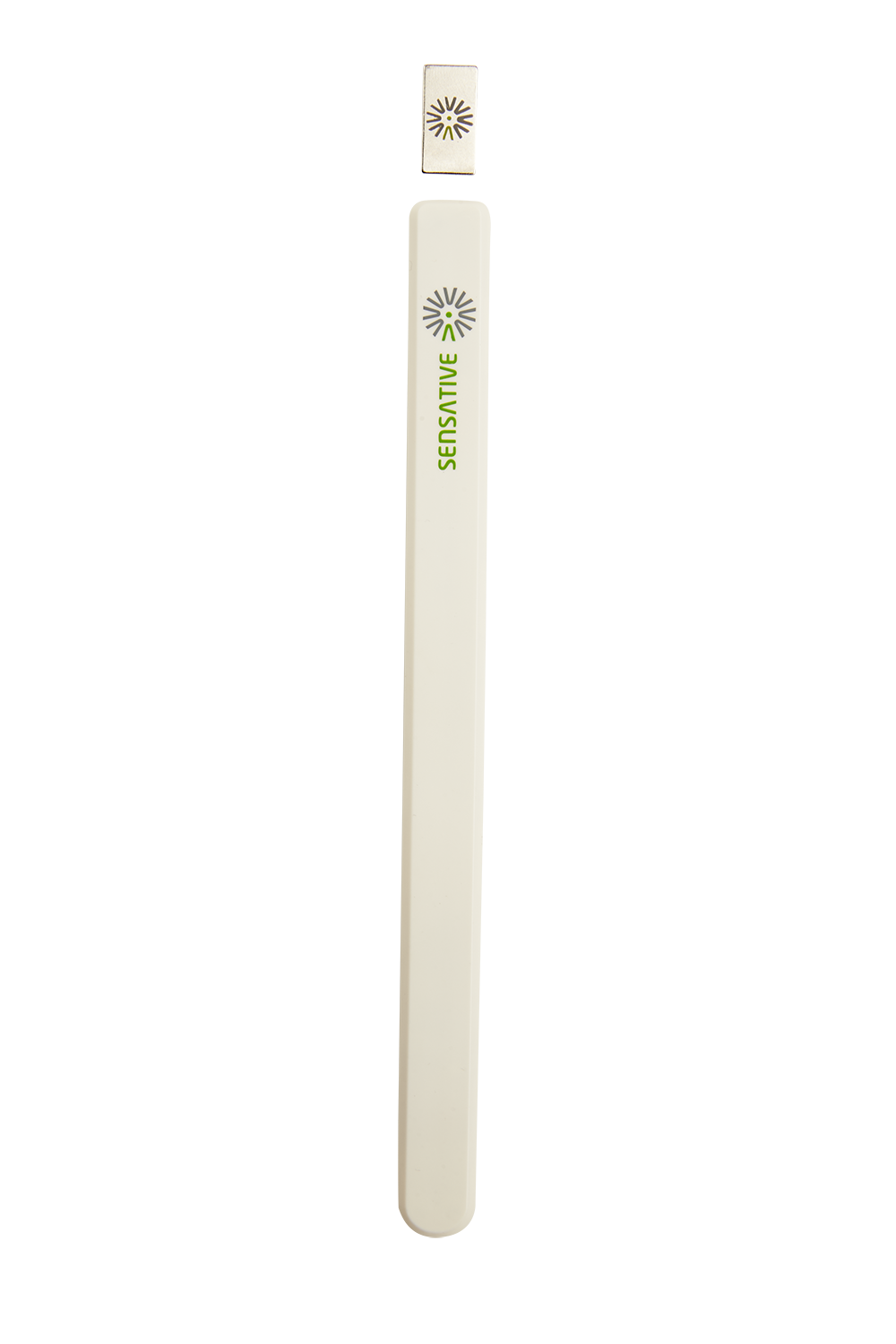

Name	Strips-MaZw
Short Description	Open/Close Magnet-sensor for doors & windows
Long Description	Strips by Sensative is an ultra-thin magnetic sensor designed to monitor windows and doors for your safety. It´s so thin that it can be mounted invisibly in the tiny gap between the frame and the door or window. It is as easy to mount as a sticker using Strips's adhesive tape. Strips is Z-Wave plus compliant and can be used with any existing Z-Wave smarthome systems.
Brand	Sensative
Product Identifier	11 01 012
OEM Version	HW: 2 FW: 10.07:10.08
Hardware Platform	ZM5101
Z-Wave Version	6.51.06
Library Type	SLAVE_ROUTING
Device Type	Notification Sensor
Role Type	ROLE_TYPE_SLAVE_SLEEPING_REPORTING
Manufacturer ID	0x019A
Product Type ID	0x0003
Product ID	0x0003
User Icon	0x0C07
Installer Icon	0x0C07
Frequency Plans	US: 916.00MHz, 908.40MHz
Categories	Sensors
Countries / Regions	United States of America
Supported Command Classes	Identifier Name Key Version COMMAND_CLASS_SENSOR_BINARY Sensor Binary 0x30 1 COMMAND_CLASS_POWERLEVEL Powerlevel 0x73 1 COMMAND_CLASS_BATTERY Battery 0x80 1 COMMAND_CLASS_CONFIGURATION Configuration 0x70 1 COMMAND_CLASS_VERSION_V2 Version V2 0x86 2 COMMAND_CLASS_WAKE_UP_V2 Wake Up V2 0x84 2 COMMAND_CLASS_DEVICE_RESET_LOCALLY Device Reset Locally 0x5A 1 COMMAND_CLASS_ZWAVEPLUS_INFO_V2 Z-Wave Plus Info V2 0x5E 2 COMMAND_CLASS_ASSOCIATION_V2 Association V2 0x85 2 COMMAND_CLASS_ASSOCIATION_GRP_INFO Association Group Info 0x59 1 COMMAND_CLASS_MANUFACTURER_SPECIFIC Manufacturer Specific 0x72 1 COMMAND_CLASS_NOTIFICATION_V4 Notification V4 0x71 4
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual US Manual - US_INS 11 01 012 R1B 2016.10.12 (WEB).pdf
Features	Feature Values Sensors Value Open/Closed (Binary) Color Value White Outdoor Use Battery Quantity Value 1 Battery Type Value Built in 3.0V LiMnO2
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 1 0 Z-Wave Plus Lifeline
Configuration Parameters	Parameter Number Name Description Format Size Min Value Max Value Default Value Parameter Values 1 Notification type User can use this configuration parameter to change the notification type compatible with their gatewaycontroller. 0 1 0 0 1 From To Description 0 0 Binary Sensor report 1 1 Notification report 2 2 Basic report 2 LED indication LED On during specific event detected (ex. door opened) else if the parameter value is 0, LED will be turned OFF for the specific event detected. 0 1 0 0 1 From To Description 0 0 Specific event indication (ex. door opened) Off 1 1 On
Texts	ID Description Value 6 Additional Special Features Failure message: 5 LED blinks 2 Exclusion 1. Set the controller in remove mode (See your controller’s manual). 2. Place the round magnet at the rounded edge of Strips. When the LED blinks, move the magnet away. Repeat 3 times in total within 10 seconds. 3. A long LED blink indicates that the remove process was successful. 1 Inclusion Strips is delivered in ""auto-add"" mode. Follow the process below to add Strips in a Z-Wave network. 1. Start the add mode on the Z-Wave controller. See the controller’s manual. 2. Remove both magnets from Strips. Strips blinks twice to confirm the command and successful addition. 3. A long LED blink indicates that the add process was successful 4. The Z-Wave controller application should now allow you to monitor your Strips sensor status. 5. Move the squared magnet as shown in the picture . Check that the Z-Wave system indicates the status correctly. 6. If the Z-Wave system does not respond, it may be needed to change Strips’ notification type. Manual add: 1. Set the controller to add mode (See your controller’s manual). 2. Place the round magnet at the rounded edge of Strips. When the LED blinks, move the magnet away. Repeat 3 times in total within 10 seconds. 3. A long LED blink indicates that the add process was successful. 5 Factory Reset In order to reset Strips (only possible when the connection to the controller is lost or otherwise inoperable): 1. Place the round magnet at the rounded edge of Strips. 2. When the LED blinks, move the magnet away. Repeat 3 times in total within 10 seconds. 3. On the 3rd repetition, leave the magnet at the rounded edge for 10s. 4. A long LED signal indicates success. 4 Device Wake-Up Wake up Strips manually for Z-Wave communication: 1. Place the round magnet at the rounded edge of Strips. 2. When the LED blinks, move the magnet away. 3. Repeat 3 times in total within 10 seconds.
Supported Multilevel Sensors	Multilevel Sensor Type 0x02
Supports NWI	Yes
Supports Explorer Frames	Yes
