Product Recognition
Certification Number	ZC10-17085723

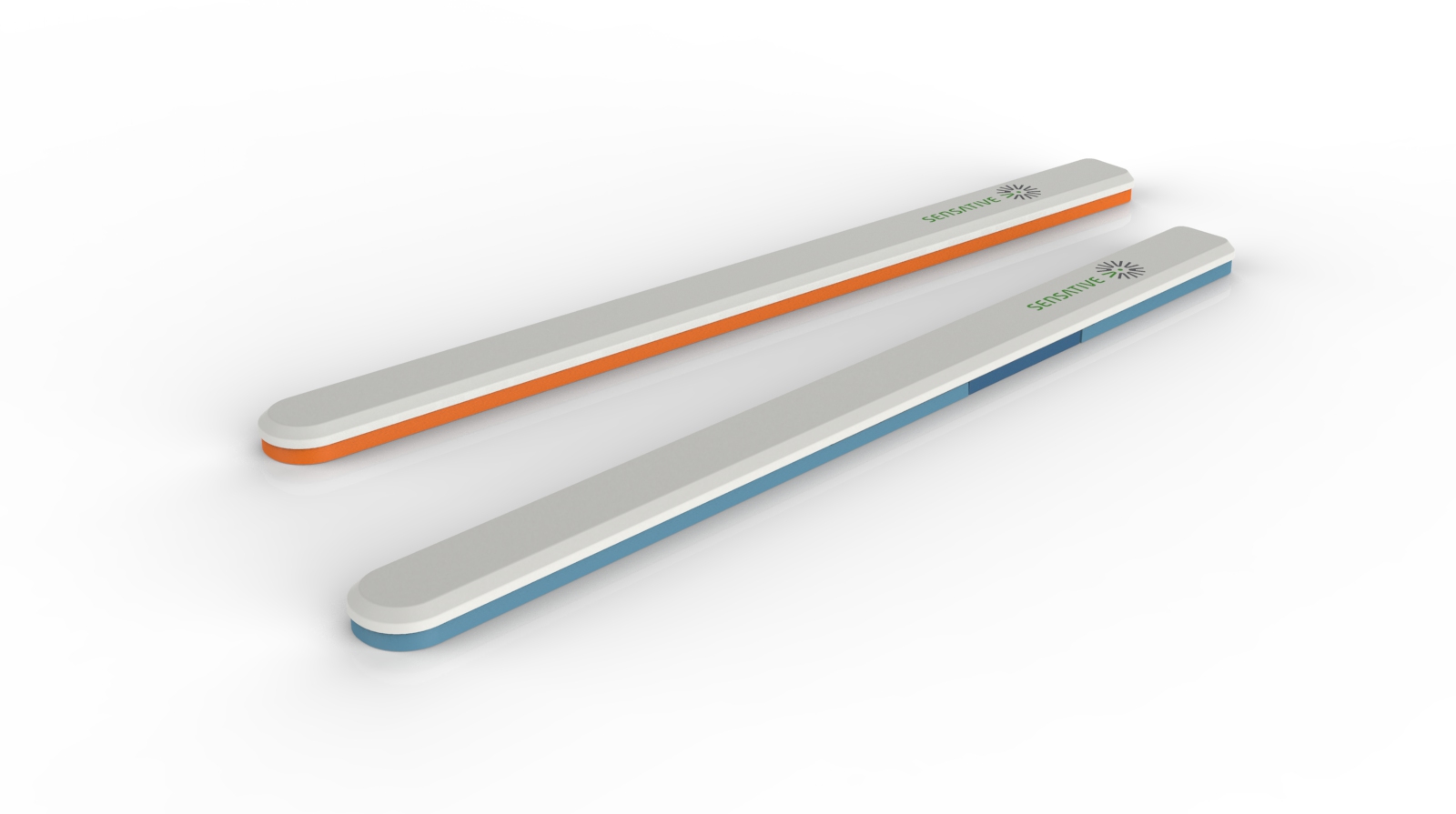

Name	Strips-Multi-sensor
Short Description	Ambient light, Water Leakage & Temperature: Sensor for detection of ambient light, water leakage (flood sensor) including temperature sensor. The product will be packaged in different kits together with the mounting devices to support the ambient light use case or the water leakage use case.
Long Description	Strips, the ultra-thin multi sensor is now available in two new sensor models, Strips Drip and Strips Comfort. Drip and Comfort join Strips Guard, the thinnest magnet sensor in the world detecting if your windows are open and closed invisibly since 2015. Strip Drip sends an alarm signal if it detects a water leak. Its unique design allows it to be easily placed almost everywhere, including most places other sensors simply can’t fit. With soaking pads integrated in the mounting plate even small amounts of water will be detected. The built-in temperature sensor gives the possibility to combine the leakage alarm with a freeze alarm. There is also a built-in ambient light sensor that may be useful in special applications. Strips Comfort is a very accurate temperature and ambient light sensor. The unique design and mounting plate makes it easy to place almost invisibly in your home to measure temperature or control heating, air conditioning and even windows blinds which are connected to your Z-Wave smart home system. All Strips products can be used both in-doors and out-doors and the integrated custom battery gives Strips an expected lifetime of up to 10 years. For you, this means no hassle needing to change or charge batteries in your Strips sensors for the lifetime of the products!
Brand	Sensative
Product Identifier	11 02 011
OEM Version	HW: 1 FW: 0.01:00.01
Hardware Platform	ZM5101
Z-Wave Version	6.51.10
Library Type	SLAVE_ROUTING
Device Type	Notification Sensor
Role Type	ROLE_TYPE_SLAVE_SLEEPING_REPORTING
Manufacturer ID	0x019A
Product Type ID	0x0003
Product ID	0x000A
User Icon	0x0D01
Installer Icon	0x0D01
Frequency Plans	EU: 869.85MHz, 868.40MHz
Categories	Sensors
Countries / Regions	European Union
Supported Command Classes	Identifier Name Key Version COMMAND_CLASS_SENSOR_MULTILEVEL_V5 Sensor Multilevel V5 0x31 5 COMMAND_CLASS_POWERLEVEL Powerlevel 0x73 1 COMMAND_CLASS_BATTERY Battery 0x80 1 COMMAND_CLASS_CONFIGURATION Configuration 0x70 1 COMMAND_CLASS_VERSION_V2 Version V2 0x86 2 COMMAND_CLASS_WAKE_UP_V2 Wake Up V2 0x84 2 COMMAND_CLASS_DEVICE_RESET_LOCALLY Device Reset Locally 0x5A 1 COMMAND_CLASS_ZWAVEPLUS_INFO_V2 Z-Wave Plus Info V2 0x5E 2 COMMAND_CLASS_ASSOCIATION_V2 Association V2 0x85 2 COMMAND_CLASS_ASSOCIATION_GRP_INFO Association Group Info 0x59 1 COMMAND_CLASS_MANUFACTURER_SPECIFIC Manufacturer Specific 0x72 1 COMMAND_CLASS_NOTIFICATION_V4 Notification V4 0x71 4
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual Strips-Multi-sensor manual.pdf
Features	Feature Values Battery Type Value Built in 3.0V LiMnO2 Supported Notification Types Value Heat Alarm Water Alarm Home Security Outdoor Use Sensors Value Air Temperature Luminance Moisture
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 1 0 Z-Wave Plus Lifeline
Configuration Parameters	Parameter Number Name Description Format Size Min Value Max Value Default Value Parameter Values 4 Temperature reporting unit 0: Celcius 1: Fahrenheit 0 1 0 0 0 From To Description 0 0 Celcius 1 1 Fahrenheit 5 High Temperature alarm 0: Off 1: On 0 1 0 0 0 From To Description 0 0 Off 1 1 On 6 High Temperature alarm level -20 to + 60 degree C 0 1 0 0 60 From To Description -20 60 Temperature alarm level 7 Low Temperature alarm 0: Off 1: On 0 1 0 0 0 From To Description 1 1 On 0 0 Off 8 Low Temperature alarm level -20 to + 60 degree C 0 1 0 0 -20 From To Description -20 60 Temperature alarm level 9 Ambient light reporting 0: Off 1: On 0 1 0 0 1 From To Description 1 1 On 0 0 Off 10 Leakage alarm 0: Off 1: On 0 1 0 0 1 From To Description 0 0 Off 1 1 On 11 Leakage alarm level 1 to 100 (1= almost dry, 100= soaking wet) 0 1 0 0 25 From To Description 1 100 (1= almost dry, 100= soaking wet) 3 Temperature reporting mode 0: Off 1: Normal 2: High Accuracy 0 1 0 0 1 From To Description 2 2 High Accuracy 1 1 Normal 0 0 Off
Texts	ID Description Value 5 Factory Reset You may need to reset Strips if your Z-Wave controller is missing or not responding. Follow the instructions for “Wake up”, but on the 3rd repetition, leave the magnet at the rounded edge for 10 seconds. A long LED signal indicates success. 4 Device Wake-Up Wake up Strips manually for Z-Wave communication. Place the magnet at the rounded edge. When the LED blinks, move the magnet away. Repeat twice within 10 seconds. 1 Inclusion Set your controller to add mode (see your controller’s manual). Follow the instruction for Wake up. A long LED blink indicates that the add/remove was successful. 2 Exclusion Set your controller to remove mode (see your controller’s manual). Follow the instruction for Wake up. A long LED blink indicates that the add/remove was successful.
Supported Notification Types	Notification Type Event / State Heat Alarm (Refer to parameters): State idle Water Alarm (Refer to parameters): State idle Home Security (Refer to parameters): State idle
Supported Multilevel Sensors	Multilevel Sensor Type Air temperature Illuminance Moisture
Supports NWI	Yes
Supports Explorer Frames	Yes
