Product Recognition
Certification Number	ZC10-17025429

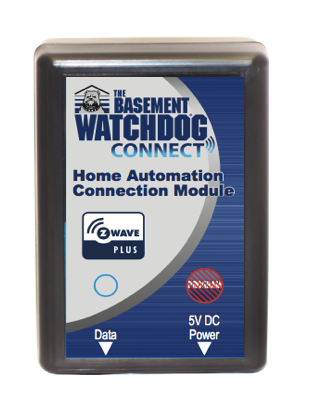

Name	Sump Pump Module
Short Description	Z-Wave Interface for use with Basement Watchdog Battery Backup Sump Pump Systems
Long Description	Connect your Basement Watchdog Battery Backup Sump Pump to your Z-Wave network and receive Sump Pump Alerts directly to your phone! From notifications when the backup system has turned on to problems with your pump motor or battery. You won't have to wonder any longer if your sump pump system is working properly.
Brand	Basement Watchdog
Product Identifier	SPM1
OEM Version	HW: 3 FW: 1.20
Hardware Platform	ZM5202
Z-Wave Version	6.51.09
Library Type	SLAVE_ENHANCED_232
Device Type	Notification Sensor
Role Type	ROLE_TYPE_SLAVE_ALWAYS_ON
Manufacturer ID	0x0084
Product Type ID	0x0093
Product ID	0x0114
User Icon	0x0C05
Installer Icon	0x0C05
Frequency Plans	US: 916.00MHz, 908.40MHz
Categories	Water Valves & Irrigation
Countries / Regions	United States of America
Supported Command Classes	Identifier Name Key Version COMMAND_CLASS_POWERLEVEL Powerlevel 0x73 1 COMMAND_CLASS_VERSION_V2 Version V2 0x86 2 COMMAND_CLASS_DEVICE_RESET_LOCALLY Device Reset Locally 0x5A 1 COMMAND_CLASS_ZWAVEPLUS_INFO_V2 Z-Wave Plus Info V2 0x5E 2 COMMAND_CLASS_ASSOCIATION_V2 Association V2 0x85 2 COMMAND_CLASS_ASSOCIATION_GRP_INFO Association Group Info 0x59 1 COMMAND_CLASS_FIRMWARE_UPDATE_MD_V2 Firmware Update Meta-Data V2 0x7A 2 COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 Manufacturer Specific V2 0x72 2 COMMAND_CLASS_NOTIFICATION_V4 Notification V4 0x71 4
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual SPM1 Manual v5-1.docx
Features	Feature Values Battery Type Value AA Firmware Updatable Value Updatable by Consumer by RF Battery Quantity Value 2
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 5 0 Z-Wave Plus Lifeline • Device Reset Locally (via 3 quick presses of the program switch) • Notifications o AC Mains Disconnected o Replace Battery Now o System Hardware Failure System Hardware Failure with manufacturer-proprietary failure code (codes detailed below) 2 5 0 • Notifications o AC Mains Disconnected o Replace Battery Now o System Hardware Failure System Hardware Failure with manufacturer-proprietary failure code (codes detailed below)
Texts	ID Description Value 1 Inclusion 1) Set up the inclusion mode at the controller; 2) Briefly press the switch once and the controller will indicate the unit has been included in the network. Also, the LED will blink when the inclusion completes. Inclusion and exclusion are always done at normal transmit power mode. This product can be included and operated in any Z-Wave network with other Z-Wave certified devices from other manufacturers and/or other applications. All non-battery operated nodes within the network will act as repeaters regardless of vendor to increase reliability of the network. 2 Exclusion 1) Set up the exclusion mode at the controller; 2) Briefly press the switch once and then release. The controller will indicates the unit has been removed from the network. The LED will blink when the exclusion completes. 4 Device Wake-Up 1 quick press of the program switch. The SPM will send the Z-Wave TM Node information frame when the switch is briefly pressed. This is primarily used for inclusion as described above. 5 Factory Reset The unit can be reset to factory default via 3 quick presses of the program switch. Please use this procedure only when the network primary controller is missing or otherwise inoperable. 6 Additional Special Features The SPM is designed such that it can be installed in either a Retrofit or a factory-installed mode. In the Retrofit mode, the SPM is attached the cold contacts on the outside of the Sump Pump Controller’s enclosure
Supports NWI	Yes
Supports Explorer Frames	Yes
