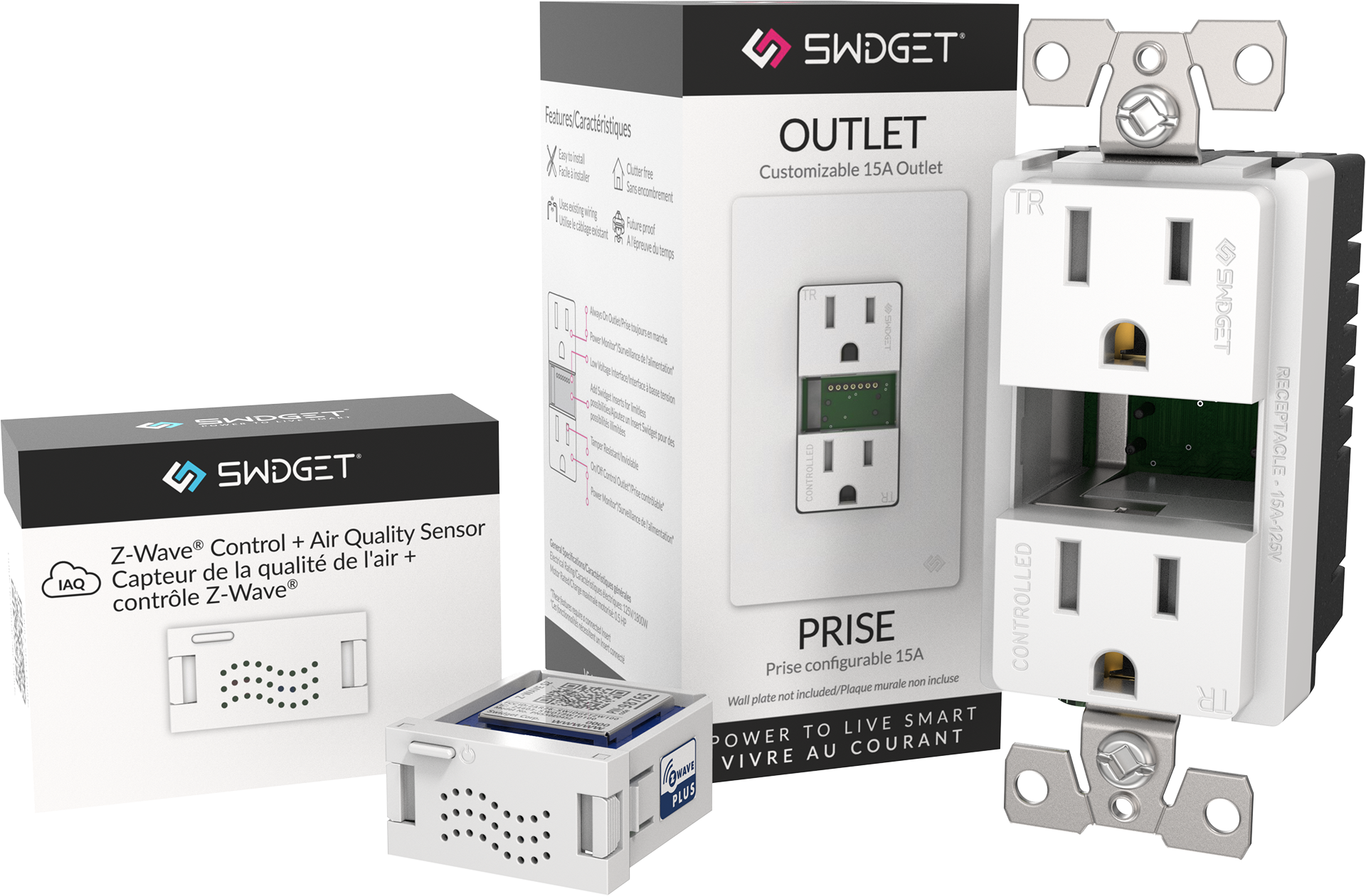

Swidget Z-Wave Insert + Air Quality / 15A Dual-Receptacle Power Outlet

Back to Listing

Product Recognition

Certification Number

ZC14-23080315

Name

Swidget Z-Wave Insert + Air Quality / 15A Dual-Receptacle Power Outlet

Short Description

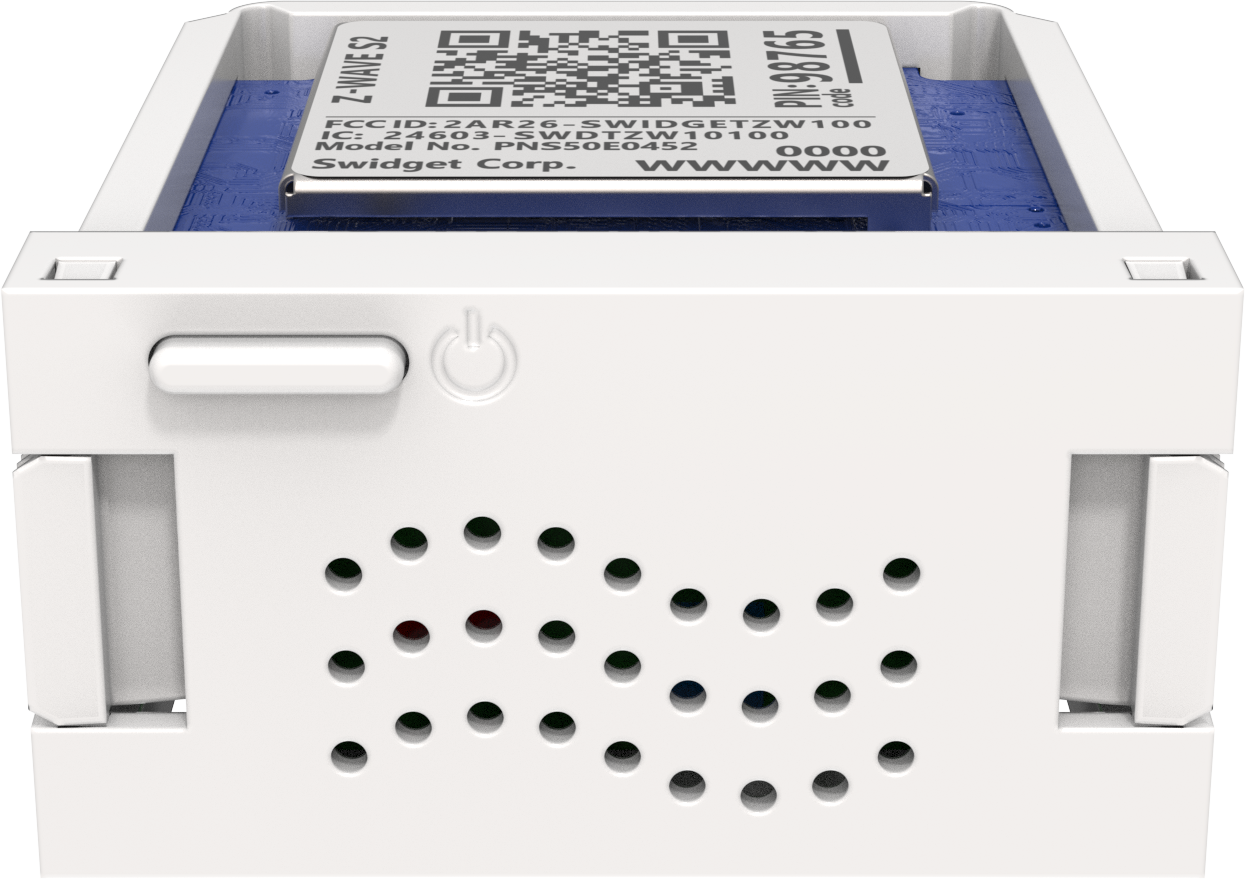

The Swidget Z-Wave™ Control + Air Quality Insert allows users to control and monitor a Swidget Device, and monitors Volatile Organic Compounds (VOCs), equivalent CO2, air pressure, temperature, and humidity to provide an Air Quality Index (AQI). The Swidget 15A Outlet offers unique smart features such as advanced automation, energy management capabilities, and external device and appliance regulation capabilities.

Long Description

The Swidget Z-Wave™ Control + Air Quality Insert is a modular smart home solution engineered for seamless integration with all Swidget Wiring Devices. Swidget's Z-Wave™ Devices and Inserts simplify the process of upgrading your home to a smart living space. Swidget Devices are installed in your home just like any other wiring devices, ensuring there is no unnecessary complexity during installation. Once your device is installed, simply select your desired sensor capability, and snap your Swidget Z-Wave™ Insert into the Swidget Wiring Device. The modularity of Swidget's Inserts ensures that the solution is adaptable to your needs as they change and future-proofs your investment by enabling you to adapt to new technologies, sensors, and trends as they emerge. The Swidget Z-Wave™ Control + Air Quality Insert allows the user to control and monitor a Swidget Device. The Swidget Air Quality Insert monitors Volatile Organic Compounds (VOCs), equivalent CO2, air pressure, temperature, and humidity to provide an Air Quality Index (AQI). Passively monitor your room's air quality, humidity, and temperature through Swidget's App or actively use them in automations to optimize and improve your living space. The Swidget Air Quality Insert works directly out of the box when paired with Swidget's 20/40/60 Timer Control Switch and Panasonic ventilation products such as WhisperQuiet bathroom fans and Panasonic Energy Recovery Ventilator (ERV) systems. When a Z-Wave™ Control + Air Quality Insert is installed in a 15A Outlet, the combination offers unique smart features, including advanced automation and energy management capabilities. Control and monitor the energy consumption of your Wiring Device, identifying areas of potential improvement and removing unnecessary vampire loads across the house. This promotes efficient energy usage, which ultimately leads to cost savings and a reduced carbon footprint. Furthermore, the 15A Outlet allows for external device and appliance regulation capabilities. Take control of any device powered through the lower receptacle through your Z-Wave™ controller for added functionality and device integration.

Brand

Swidget

Product Identifier

ZW008UWA/01

Product Line

Swidget Z-Wave Inserts

OEM Version

HW: 01 FW: 01.00

Hardware Platform

ZGM230SA

Z-Wave Version

7.18.3

Library Type

END_NODE_ENHANCED_232

Device Type

Binary Switch DT

Role Type

ROLE_TYPE_END_NODE_ALWAYS_ON

Manufacturer ID

0x0345

Product Type ID

0x0105

Product ID

0x0002

User Icon

0x0700

Installer Icon

0x0700

Frequency Plans

US: 916.00MHz, 908.40MHz

Categories

Sensors, Energy Meters, On/Off Switches/Devices

Countries / Regions

Canada, United States of America

Supported Command Classes

S2 Classes

S2_AUTHENTICATED, S2_UNAUTHENTICATED

Documents

Features

Association Groups

Configuration Parameters

Parameter Number	Name	Description	Format	Size	Default Value	Read-only	Flag Advanced
1	Power 1 High Entry Level	Refer to documentation	1	2	0x0960
2	Power 1 Low Entry Level	Refer to documentation	1	2	0x0000
3	Power 1 High Exit Level	Refer to documentation	1	2	0x0960
4	Power 1 Low Exit Level	Refer to documentation	1	2	0x0000
5	Power 1 High Delay	Refer to documentation	1	2	0x0000
6	Power 1 Low Delay	Refer to documentation	1	2	0x0000
7	Power 1 Periodic Report	Refer to documentation	1	2	0x0E10
8	Power 1 Change Report	Refer to documentation	1	2	0x000A
9	Power 1 Renotification Delay	Refer to documentation	1	2	0x0000
10	Power 1 High Entry SET Value	Refer to documentation	1	1	0xFF
11	Power 1 High Exit SET Value	Refer to documentation	1	1	0x00
24	Power 2 High Entry Level	Refer to documentation	1	2	0x0960
25	Power 2 Low Entry Level	Refer to documentation	1	2	0x0000
31	Power 2 Change Report	Refer to documentation	1	2	0x000A
64	Air Quality Level 1 Index	Refer to documentation	1	2	0x0064
65	Air Quality Level 2 Index	Refer to documentation	1	2	0x00AF
66	Air Quality Level 3 Index	Refer to documentation	1	2	0x00FA
67	Air Quality Alert Level	Refer to documentation	1	1	0x02
68	Air Quality Alert Delay	Refer to documentation	1	2	0x0000
69	Air Quality Renotification Delay	Refer to documentation	1	2	0x012C
70	Air Quality VOC Periodic Report	Refer to documentation	1	2	0x0E10
72	Air Quality Alert Entry SET Value	Refer to documentation	1	1	0xFF
73	Air Quality Alert Exit SET Value	Refer to documentation	1	1	0x00
74	Air Quality Actions	Refer to documentation	3	2	0x0013
80	Temperature High Entry Level	Refer to documentation	0	2	0x00E6
81	Temperature Low Entry Level	Refer to documentation	0	2	0x00AA
82	Temperature High Exit Level	Refer to documentation	0	2	0x00E6
83	Temperature Low Exit Level	Refer to documentation	0	2	0x00AA
84	Temperature High Delay	Refer to documentation	1	2	0x0000
85	Temperature Low Delay	Refer to documentation	1	2	0x0000
86	Temperature Periodic Report	Refer to documentation	1	2	0x0E10
87	Temperature Change Report	Refer to documentation	1	1	0x0A
88	Temperature Renotification Delay	Refer to documentation	1	2	0x0000
89	Temperature High Entry SET Value	Refer to documentation	1	1	0xFF
90	Temperature High Exit SET Value	Refer to documentation	1	1	0x00
91	Temperature Low Entry SET Value	Refer to documentation	1	1	0xFF
92	Temperature Low Exit SET Value	Refer to documentation	1	1	0x00
93	Temperature High Actions	Refer to documentation	3	2	0x00E3
94	Temperature Low Actions	Refer to documentation	3	2	0x00E3
95	Temperature Units	Refer to documentation	2	1	0x00
128	Humidity High Entry Level	Refer to documentation	1	1	0x64
129	Humidity Low Entry Level	Refer to documentation	1	1	0x00
130	Humidity High Exit Level	Refer to documentation	1	1	0x64
131	Humidity Low Exit Level	Refer to documentation	1	1	0x00
132	Humidity High Delay	Refer to documentation	1	2	0x0000
133	Humidity Low Delay	Refer to documentation	1	2	0x0000
134	Humidity Periodic Report	Refer to documentation	1	2	0x0E10
135	Humidity Change Report	Refer to documentation	1	1	0x0A
136	Humidity Renotification Delay	Refer to documentation	1	2	0x0000
137	Humidity High Entry SET Value	Refer to documentation	1	1	0xFF
138	Humidity High Exit SET Value	Refer to documentation	1	1	0x00
140	Humidity Low Exit SET Value	Refer to documentation	1	1	0x00
142	Humidity High Actions	Refer to documentation	3	2	0x0003
143	Humidity Low Actions	Refer to documentation	3	2	0x0003
152	System Status	Refer to documentation	1	4	0x00000000	Yes	Yes
139	Humidity Low Entry SET Value	Refer to documentation	1	1	0xFF
153	System LED Brightness	Refer to documentation	1	1	0x64
154	System Options	Refer to documentation	3	2	0x0000

Texts

Supported / Controlled Meter Types

Supported Notification Types

Supported Multilevel Sensors

Supports NWI

Yes

Supports Explorer Frames

Yes

Supports SmartStart

Yes
