Certification Number | ZC10-16115315 |
|---|

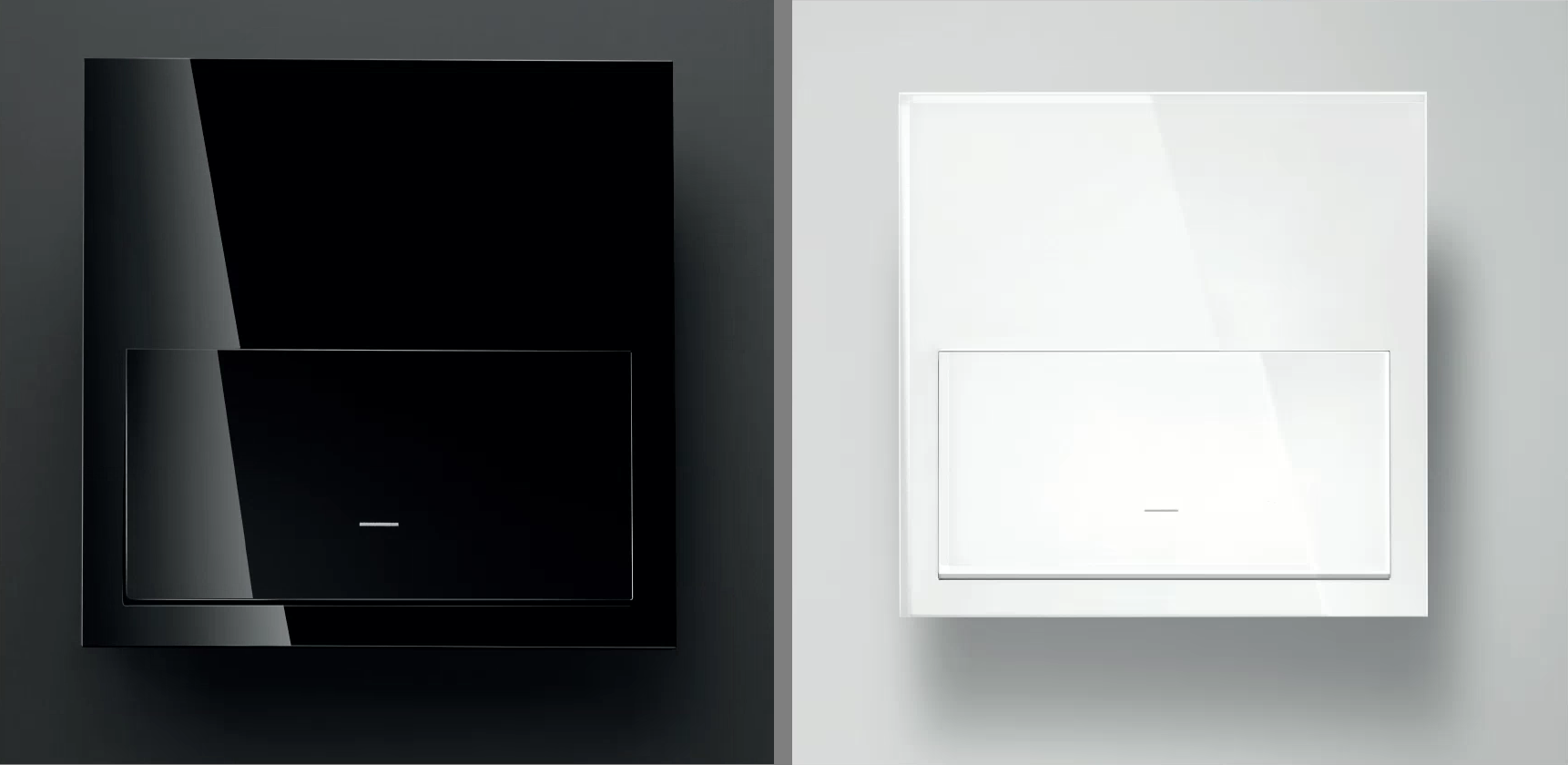

Name | Switch IO |
|---|
Short Description | Simon Electronic Switch |
|---|
Long Description | Simon Electronic Switch IO integrated by Electronic Switch that provides power Switch and Rocker that provides Z-Wave communication attributes. |
|---|
Brand | Simon |
|---|
Product Identifier | 10002034-13x && 10000322-039 |
|---|
OEM Version | HW: 1 FW: 4.18.72.15.65.15 |
|---|
Hardware Platform | ZM5202 |
|---|
Z-Wave Version | 6.51.07 |
|---|
Library Type | SLAVE_ENHANCED |
|---|
Device Type | On/Off Power Switch |
|---|
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
|---|
Manufacturer ID | 0x0x26 |
|---|
Product Type ID | 0x0001 |
|---|
Product ID | 0x0000 |
|---|
User Icon | 0x0700 |
|---|
Installer Icon | 0x0700 |
|---|
Frequency Plans | EU: 869.85MHz, 868.40MHz |
|---|
Categories | All Lighting Devices, On/Off Switches/Devices |
|---|
Countries / Regions | European Union |
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Features | Feature | Values |
|---|
Firmware Updatable | Value |
|---|
Updatable by Consumer by RF |
| Switch Load Capacity Current | | Neutral Wire Required | | Switch Type | Value |
|---|
Push Button with Indicator |
|
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
1 | 3 | 0 | Z-Wave Plus Lifeline;
Commands send to Life Line
Status Change:
Command Class Basic - Basic Report
Output Power change more than 10%:
Command Class Meter - Meter Report |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
1 | Association LED | Used during Association process by Simon Shortcut Switch IO to turn ON the main LED of all devices already associated to this shortcut. | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
255 | 255 | Turns the main LED ON | 0 | 0 | Turns the main LED OFF |
| 10 | Delay ON | delay from activation request until load activation. Please note that possible values are referenced in HEX format from 0x00 to 0xFF (unsigned 1 byte values). Please Refer to "Z-Wave Command Class Specification, A-M" --> "Multilevel Switch Set Command" --> "Duration Table" specification to lean more about these values meaning. | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
128 | 254 | Delay in minutes From 1 to 127 | 0 | 127 | Delay in seconds |
| 11 | Activation Time | Time that load performs activated after complete an activation process. Please note that possible values are referenced in HEX format from 0x00 to 0xFF (unsigned 1 byte values). Please Refer to "Z-Wave Command Class Specification, A-M" --> "Multilevel Switch Set Command" --> "Duration Table" specification to lean more about these values meaning. | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 127 | Delay in seconds | 128 | 254 | Delay in minutes From 1 to 127 |
|
|
|---|
Texts | ID | Description | Value |
|---|
2 | Exclusion | When the pushbutton is released after a press of (2sec<T<20sec) the device will send a NIF to exclude from Z-Wave network or perform an association with other Z-Wave device.
Main LED will Blink with 0,3 sec period to inform that NIF can be send after release of pushbutton.
This process does not perform a default reset of configurations.
Main LED will Blink with 0,3 sec period to inform that NIF can be send after release of pushbutton. | 1 | Inclusion | When the pushbutton is released after a press of (2sec<T<20sec) the device will send a NIF to include from Z-Wave network or perform an association with other Z-Wave device.
Main LED will Blink with 0,3 sec period to inform that NIF can be send after release of pushbutton.
This process does not perform a default reset of configurations.
Main LED will Blink with 0,3 sec period to inform that NIF can be send after release of pushbutton. | 5 | Factory Reset | When the pushbutton is released after a press of (20sec<T) the device will perform a factory default values operation, excluding it from network and resetíng the configuration parameters.
Main LED will perform 1 Blink with 5 sec.
Please use this procedure only when the network primary controller is missing or otherwise inoperable. | 6 | Additional Special Features | Switch IO is ready to operate with Z-Wave controllers and configured to be managed by Simon100 IO APP using the HUB plug IO for getting a better user experience. |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
