Product Recognition
Certification Number	ZC14-25070534

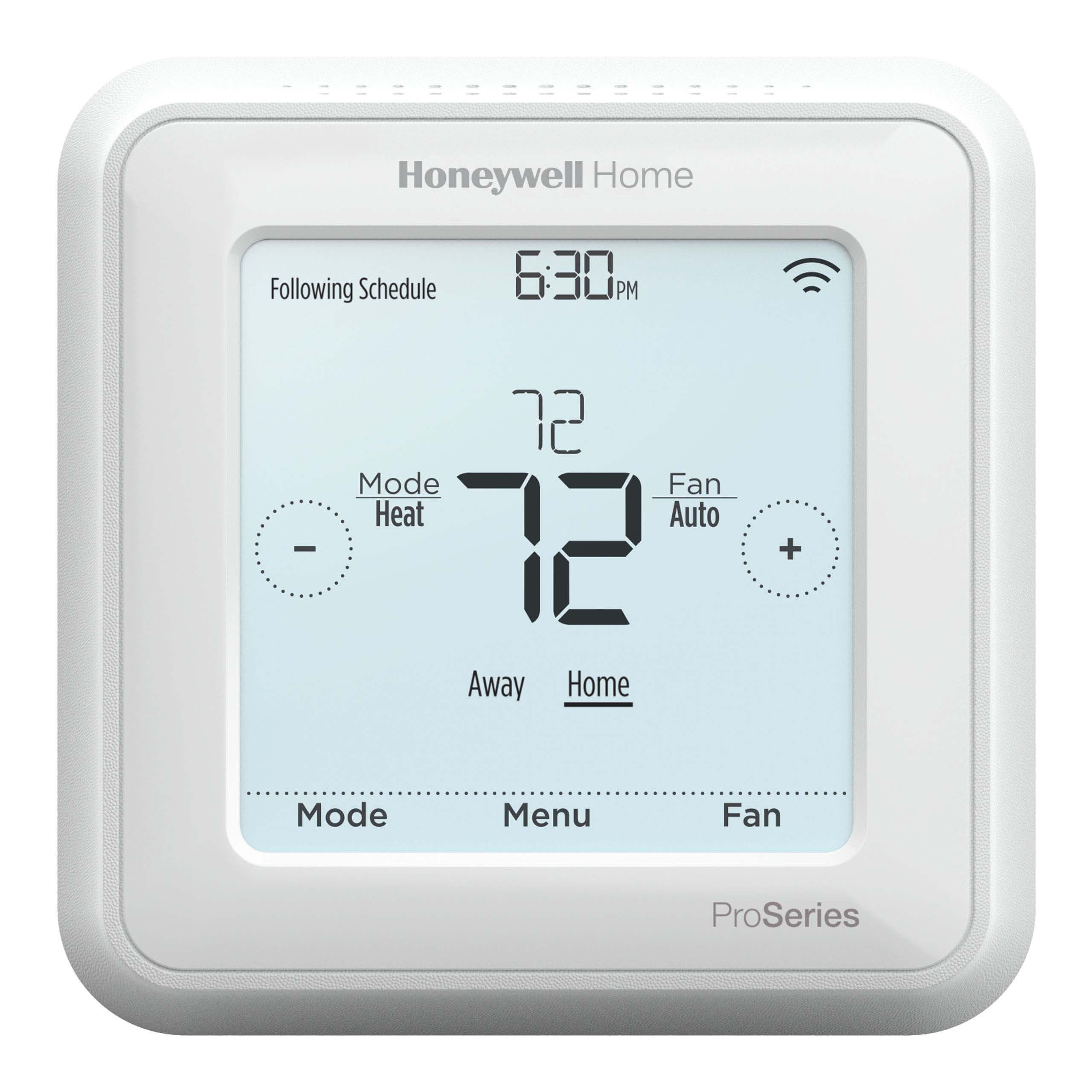

Name	T6 Pro Z-Wave with SmartStart
Short Description	T6 PRO Z-WAVE® THERMOSTAT
Description	T6 Pro Z-Wave® Thermostat with SmartStart
Brand	Honeywell Home
Brand Owner	Resideo Technologies Inc.
Identifier	TH6320ZW2007
Product Line	Honeywell Home ProSeries
OEM Version	HW: 01 FW: 03.01:03.01
Hardware Platform	ZGM130S037HGN2 / ZGM130S037HGN1
Z-Wave Version	7.21.6
Library Type	END_NODE_ENHANCED_232
Device Type	Thermostat DT
Role Type	ROLE_TYPE_SLAVE_ALWAYS_ON, ROLE_TYPE_SLAVE_SLEEPING_LISTENING
Manufacturer ID	0x041B
Product Type ID	0x0011
Product ID	0x0009
User Icon	0x1200
Installer Icon	0x1200
Frequency Plans	US: 916.00MHz, 908.40MHz
Categories	Thermostats
Countries / Regions	Canada, United States of America
Supported Command Classes	Identifier Name Key Version COMMAND_CLASS_BASIC_V2 Basic V2 0x20 2 COMMAND_CLASS_CLOCK Clock 0x81 1 COMMAND_CLASS_CONFIGURATION_V4 Configuration V4 0x70 4 COMMAND_CLASS_SENSOR_MULTILEVEL_V5 Multilevel Sensor V5 0x31 5 COMMAND_CLASS_NOTIFICATION_V3 Notification V3 0x71 3 COMMAND_CLASS_THERMOSTAT_FAN_MODE_V3 Thermostat Fan Mode V3 0x44 3 COMMAND_CLASS_THERMOSTAT_FAN_STATE Thermostat Fan State 0x45 1 COMMAND_CLASS_THERMOSTAT_MODE_V3 Thermostat Mode V3 0x40 3 COMMAND_CLASS_THERMOSTAT_OPERATING_STATE Thermostat Operating State 0x42 1 COMMAND_CLASS_THERMOSTAT_SETPOINT_V2 Thermostat Setpoint V2 0x43 2 COMMAND_CLASS_ASSOCIATION_V2 Association V2 0x85 2 COMMAND_CLASS_ASSOCIATION_GRP_INFO_V3 Association Group Information (AGI) V3 0x59 3 COMMAND_CLASS_BATTERY Battery 0x80 1 COMMAND_CLASS_DEVICE_RESET_LOCALLY Device Reset Locally 0x5A 1 COMMAND_CLASS_FIRMWARE_UPDATE_MD_V5 Firmware Update Meta Data V5 0x7A 5 COMMAND_CLASS_INDICATOR_V3 Indicator V3 0x87 3 COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 Manufacturer Specific V2 0x72 2 COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 Multi Channel Association V3 0x8E 3 COMMAND_CLASS_VERSION_V3 Version V3 0x86 3 COMMAND_CLASS_ZWAVEPLUS_INFO_V2 Z-Wave Plus Info V2 0x5E 2 COMMAND_CLASS_SECURITY_2 Security 2 0x9F 1 COMMAND_CLASS_SUPERVISION Supervision 0x6C 1 COMMAND_CLASS_TRANSPORT_SERVICE_V2 Transport Service V2 0x55 2 COMMAND_CLASS_POWERLEVEL Powerlevel 0x73 1
S2 Classes	S2_AUTHENTICATED
Documents	Category File Adv_Manual T6ProZ-Wave-Install-Guide_1.pdf Installer_Guide T6ProZ-Wave-Install-Guide_2.pdf Manual_English T6ProZ-Wave-Getting_Started_1.pdf
Features	Feature Values Battery Quantity Value 3 Battery Type Value AA Thermostat HVAC Systems Supported Value Single Stage Multi Stage Heat Pump Dual Fuel Universal Heat Only Cool Only Thermostat Modes Value Heat Cool Auto Auxiliary/Emergency Heat Fan Only Auto Changeover Energy Save Heat Energy Save Cool Away Thermostat Power Source Value Battery Power Stealing (hard-wired 24V)
Association Groups	Group Number Maximum Nodes Supported End Point ID Group Name Profile 1 1 0 Lifeline 0x0001 1 1 0 Lifeline 0x0001
Configuration Parameters	Parameter Number Name Description Format Size Min Value Max Value Default Value Flag Advanced 1 Schedule Type 0 = Occupancy; 1 = Every day the same; 2 = 5-2 Schedule; 3 = 5-1-1 Schedule; 4 = Every day individual 2 1 0 0 0x02 10 EM Heat Type 0 = Electric; 1 = Gas/Oil 2 1 0 0 0x00 11 Fossil Kit Control 0 = Thermostat; 1 = External 2 1 0 0 0x00 17 Up Stage Timer Aux Heat 0 = Off; 1 = 30 minutes; 2 = 45; 3 = 60; 4 = 75; 5 = 90 minutes; 6 = 2 hours; 7 = 3; 8 = 4; 9 = 5; 10 = 6; 11 = 8; 12 = 10; 13 = 12; 14 = 14; 15 = 16 hours 2 1 0 0 0x00 2 Temp Scale 0 = Fahrenheit; 1 = Celsius 2 1 0 0 0x00 23 Heat 2 CPH (Heating cycle rate stage 2) 1 to 12 CPH 0 1 0 0 0x03 24 Aux Heat CPH (Heating cycle rate Auxiliary Heat) 1 to 12 CPH 0 1 0 0 0x09 25 EM Heat CPH (Heating cycle rate Emergency Heat) 1 to 12 CPH 0 1 0 0 0x09 3 Outdoor Temp 0 = No; 1 = Wired 2 1 0 0 0x00 31 Air Filter 1 Reminder 0 = Off; 1 = 10 Run Time Days; 2 = 20; 3 = 30; 4 = 45; 5 = 60; 6 = 90; 7 = 120; 8 = 150 Run Time Days; 9 = 30 Days; 10 = 45; 11 = 60; 12 = 75 Days; 13 = 3 Months; 14 = 4; 15 = 5; 16 = 6; 17 = 9; 18 = 12; 19 = 15 Months 2 1 0 0 0x00 Yes 4 Equipment Type 0 = None; 1 = Standard Gas; 2 = High Efficiency Gas; 3 = Oil; 4 = Electric; 5 = Fan Coil, 6 = Air to Air Heat pump; 7 = Geothermal Heat Pump; 8 = Hot Water; 9 = Steam 2 1 0 0 0x02 40 Clock Format 0 = 12 hour; 1 = 24 hour 2 1 0 0 0x00 41 Daylight Saving 0 = Off; 1 = On 2 1 0 0 0x01 42 Temp Offset 0 = Off; -3 to 3 degrees F (in 1 degree increments) 0 1 0 0 0x00 Yes 5 Reversing Valve 0 = O/B on Cool; 1 = O/B on Heat 2 1 0 0 0x00 6 Cool Stages 0, 1, 2 0 1 0 0 0x01 7 Heat Stages; AUX/E stages 0, 1, 2 0 1 0 0 0x01 8 Aux/E Control 0 = Both Aux/E; 1 = Either Aux/E 2 1 0 0 0x00 9 Aux Heat Type 0 = Electric; 1 = Gas/Oil 2 1 0 0 0x00 43 Humidity Offset 0 = Off; -12 to 12 percent (in 1 percent increments) 0 1 0 0 0x00 Yes 44 Z-Wave Temperature resolution 0 = Advanced; 1 = Standard; 2, 3, 4, 5 0 1 0 0 0x01 Yes 45 Z-Wave Humidity resolution 1% to 5% 0 1 0 0 0x01 Yes
Texts	ID Description Value 8 Where to find S2 DSK on product From page 9: TH6320ZW2007 model is SmartStart enabled and can be pre-included into to a Z-Wave network by using a controller that supports SmartStart to scan the Z-Wave QR Code shown on the back of thermostat and its box. From page 10: Finding DSK and DSK Pin Code The 5-digit DSK Pin Code can be found on the label on the back of the thermostat and by selecting MENU then arrow right to "Z-WAVE SETUP", then right arrow to "GET DSK CODE" and touching select. Full DSK can be found on the box of the thermostat. 1 Classic Inclusion After you finish the installer setup and set the date and time, you will be asked to set up a Z-Wave to include the thermostat into Z-Wave network. Touch Yes to include the thermostat in to Z-Wave network, or touch No if you want this to be done later. • You’ll be asked to set your primary controller to INCLUDE MODE. Please refer to the user manual of your Z-Wave controller. • After inclusion procedure has been initiated on your Z-Wave controller, touch Select on the thermostat. • If the inclusion procedure is successful, INCLUDED, the node ID, and the Z-Wave connected status icon appear on the screen. If the procedure fails, FAILED TO INCLUDE appears on the screen. If this happens, position the thermostat closer to the Z-Wave controller and repeat the inclusion procedure. • Your controller will indicate whether the thermostat was successfully added to its network. (Please refer to the user manual of your Z-Wave controller.) 2 Classic Exclusion To include or remove the thermostat from Z-Wave network after initial thermostat setup, go to thermostat MENU/Z-WAVE SETUP. 4 Wake-Up Procedure N/A 5 Factory Reset Procedure Reset Access all reset options on the thermostat. This is the only place to access factory reset.
Supported Notification Types	Notification Type Event / State Power Management Mains status: AC mains disconnected Power Management Mains status: AC mains re-connected
Supported Multilevel Sensors	Multilevel Sensor Type Air temperature Humidity
Supports NWI	Yes
Supports Explorer Frames	Yes
Is Flirs	Yes
Supports SmartStart	Yes
