Product Recognition
Certification Number	ZC10-16105254

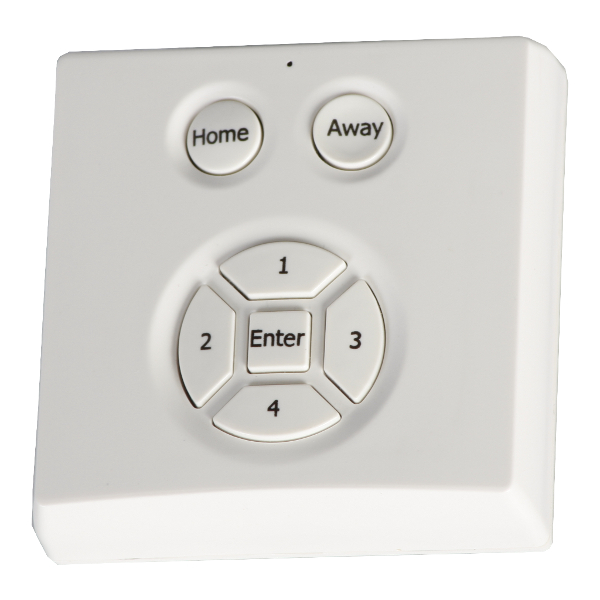

Name	Tag Reader 500
Short Description	A Tag Reader that bridges a RFID TAG to a Z-Wave message. In addition the Tag Reader has a numerical keypad which can be used to changes lifestyles or activate scenes.
Long Description	A Z-Wave security enabled entry control device. You can arm/disarm your house to home or away with the Tag Reader 500. With the use of a RFID tag or a numerical code the device can send an entry control message which can be handled by a supported gateway. In addition the Tag Reader supports the activation of scenes.
Brand	BeNeXt B.V.
Product Identifier	80820701
OEM Version	HW: 20 FW: 1.00
Hardware Platform	ZM5101
Z-Wave Version	6.61.00
Library Type	SLAVE_ENHANCED_232
Device Type	Other
Role Type	ROLE_TYPE_SLAVE_SLEEPING_REPORTING
Manufacturer ID	0x008A
Product Type ID	0x0007
Product ID	0x0200
User Icon	0x2000
Installer Icon	0x2000
Frequency Plans	EU: 869.85MHz, 868.40MHz
Categories	Locks, Security Add-Ons
Countries / Regions	European Union
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual Quickstart_Technical_Manual_Tag_Reader500_v_0_9.pdf
Features	Feature Values Battery Quantity Value 2 Battery Type Value AA Color Value White Firmware Updatable Value Updatable by Consumer by RF
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 1 0 Z-Wave Plus Lifeline
Configuration Parameters	Parameter Number Name Description Format Size Min Value Max Value Default Value Parameter Values 1 Set to default Set all configuration values to default values (factory settings). Read more in chapter Configuration Reset. All values except for 0x55 and 0xAA will default the other configurations values 0 1 0 0 170 From To Description 0 0 Default all -1 -1 Default all 8 Gateway confirmation In gateway mode it is possible to let the gateway decide if the Tag Reader can arm to home or away. If gateway indication is disabled the Tag Reader automatically assumes that it can arm and will wait for a user input of RFID TAG or numeric code. Value 0x00: Gateway confirmation disabled Value 0x01 – 0xFF: Gateway confirmation enabled 0 1 0 0 0 From To Description 0 0 Gateway confirmation disabled 1 1 Gateway confirmation enabled 3 Feedback timeout To configure the timeout to wait for a WAKEUP_NO_MORE_INFORMATION before the error beep is automatically sound. The error beeps are fixed 8 beeps shortly after each other. Value 0x00 means disable. Value between 0x01 and 0xFF is the time in seconds 0 1 0 0 0 From To Description 0 0 Disable 2 2 2 seconds 4 Feedback beeps per second To configure the number of beeps per second. Every beep is fixed about 10ms. Value between 0x00 and 0xFF are number of beeps per second 0 1 0 0 2 From To Description 2 2 2 beeps per second 8 8 8 beeps per seconds 5 Always awake mode To configure the always awake mode. Value 3: set to always awake mode Value any other then 3: set to normal operation mode 0 1 0 0 1 From To Description 1 1 Normal operation mode 3 3 Always awake mode 7 Operation mode The mode that the TagReader communicates with the associated gateway. Value 0x00: The RFID and Numeric codes are reported in gateway mode Value 0x01 – 0xFF: the RFID and Numeric codes are reported in local mode 0 1 0 0 0 From To Description 0 0 Gateway mode 1 1 Local mode
Texts	ID Description Value 1 Inclusion To include the Tag Reader 500 press and hold the enter button for two seconds (indication LED blinks shortly). Release the enter button now to start the inclusion (during the include routine the indication LED will blink twice per second. 2 Exclusion To exclude the Tag Reader 500 press and hold the enter button for two seconds (indication LED blinks shortly). Release the enter button now to start the exclusion (during the exclude routine the indication LED will blink three times per 1,5 second. 4 Device Wake-Up Press and hold the enter button for 7 seconds, the indication LED will go on for 1 full second. 5 Factory Reset The Tag Reader 500 has an option to reset it self to factory settings. Please use this procedure only when the network primary controller is missing or otherwise inoperable To reset the product to factory settings please do the following steps: 1. Press the enter button for 2 seconds, release the enter button to start the exclusion routine (indication LED will blink 3 times every second). 2. During the exclusion routine press enter button 4 times within 1,5 seconds to reset the product. 3. If ‘back to factory settings’ was successful the indication LED will go in for 1 full second on the end of the remove routine. 4. A DEVICE_RESET_LOCALLY_NOTIFICATION is sent to the nodes associated in the lifeline group.
Supports NWI	Yes
Supports Explorer Frames	Yes
