Product Recognition | |
|---|
Certification Number | ZC10-17065667 |
|---|

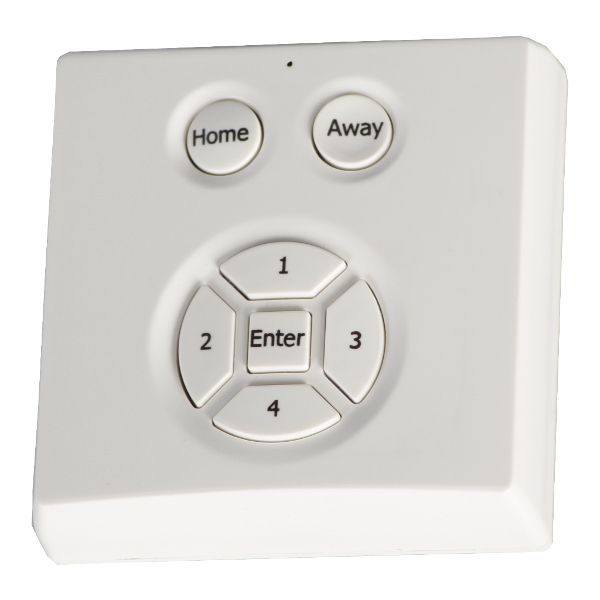

Name | Tag Reader 500 US |
|---|
Short Description | A product that bridges RFID tags to the Z-Wave protocol |
|---|
Long Description | A Z-Wave security enabled entry control device. You can arm/disarm your house to home or away with the Tag Reader 500. With the use of a RFID tag or a numerical code the device can send an entry control message which can be handled by a supported gateway. In addition the Tag Reader supports the activation of scenes. |
|---|
Brand | BeNeXt B.V. |
|---|
Product Identifier | 80820702 |
|---|
OEM Version | HW: 2 FW: 1.10 |
|---|
Hardware Platform | ZM5101 |
|---|
Z-Wave Version | 6.61.00 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Entry Control Keypad |
|---|
Role Type | ROLE_TYPE_SLAVE_SLEEPING_REPORTING |
|---|
Manufacturer ID | 0x008A |
|---|
Product Type ID | 0x0007 |
|---|
Product ID | 0x0200 |
|---|
User Icon | 0x2000 |
|---|
Installer Icon | 0x2000 |
|---|
Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
Categories | Sensors, Security Add-Ons |
|---|
Countries / Regions | United States of America |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_ENTRY_CONTROL | Entry Control | 0x6F | 1 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_USER_CODE | User Code | 0x63 | 1 | COMMAND_CLASS_ALARM_V2 | Alarm V2 | 0x71 | 2 | COMMAND_CLASS_BATTERY | Battery | 0x80 | 1 | COMMAND_CLASS_SWITCH_BINARY | Switch Binary | 0x25 | 1 | COMMAND_CLASS_BASIC | Basic | 0x20 | 1 | COMMAND_CLASS_CONFIGURATION | Configuration | 0x70 | 1 | COMMAND_CLASS_SECURITY | Security S0 | 0x98 | 1 | COMMAND_CLASS_VERSION_V2 | Version V2 | 0x86 | 2 | COMMAND_CLASS_WAKE_UP_V2 | Wake Up V2 | 0x84 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_INDICATOR_V2 | Indicator V2 | 0x87 | 2 | COMMAND_CLASS_FIRMWARE_UPDATE_MD_V2 | Firmware Update Meta-Data V2 | 0x7A | 2 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Features | Feature | Values |
|---|
Battery Quantity | | Battery Type | | Color | | Firmware Updatable | Value |
|---|
Updatable by Consumer by RF |
|
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
1 | 1 | 0 | Z-Wave Plus Lifeline |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
1 | Set to default | Set all configuration values to default values (factory settings). | 0 | 1 | 0 | 0 | 170 | From | To | Description |
|---|
1 | 1 | Set To Default | -1 | -1 | Set To Default |
| 3 | Feedback timeout | To configure the timeout to wait for a WAKEUP_NO_MORE_INFORMATION before the error beep is automatically sound. The error beeps are fixed 8 beeps shortly after each other. | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 0 | Disabled | 1 | -1 | Value in seconds |
| 4 | Feedback beeps per second | To configure the number of beeps per second. Every beep is fixed | 0 | 1 | 0 | 0 | 2 | From | To | Description |
|---|
0 | -1 | Number of beeps per second | 0 | 0 | |
| 5 | Always awake mode | To configure the always awake mode | 0 | 1 | 0 | 0 | 1 | From | To | Description |
|---|
1 | 1 | Normal operation mode | 3 | 3 | Always awake mode |
| 7 | Operation mode | The mode that the Tag Reader 500 communicates with the associated gateway. | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 0 | Gateway mode | 1 | -1 | Local mode |
| 8 | Gateway confirmation | In gateway mode it is possible to let the gateway decide if the Tag Reader 500 can arm to home or away. If gateway indication is disabled the Tag Reader 500 automatically assumes that it can arm and will wait for a user input of RFID TAG or numeric code. | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 0 | Disabled | 1 | -1 | Enabled |
|
|
|---|
Texts | ID | Description | Value |
|---|
1 | Inclusion | To include the Tag Reader 500 US press and hold the enter button for two seconds (indication LED blinks shortly). Release the enter button now to start the inclusion (during the inclusion routine the indication LED willblink twice per second). | 2 | Exclusion | To exclude the Tag Reader 500 US press and hold the enter button for two seconds (indication LED blinks shortly). Release the enter button now to start the exclusion (during the exclusion routine the indication LED willblink twice three times per 1,5 second). | 5 | Factory Reset | The Tag Reader 500 US has an option to reset it self to factory settings. Please use this procedure only when the network primary controller is missing or otherwise inoperable.
To reset to factory settings please follow these steps:
1. Press the enter button for 2 seconds, release the enter button to start the remove routine (indication LED will blink 3 times every second).
2. During the remove routine press enter button 4 times within 1,5 seconds to reset the product.
3. If ‘back to factory settings’ was successful the indication LED will go in for 1 full second on the end of the remove routine.
4. A DEVICE_RESET_LOCALLY_NOTIFICATION is sent to the nodes associated in the lifeline group. | 4 | Device Wake-Up | Press and hold the button fpr 7 seconds, the indication LED will go on for 1 full second. |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
