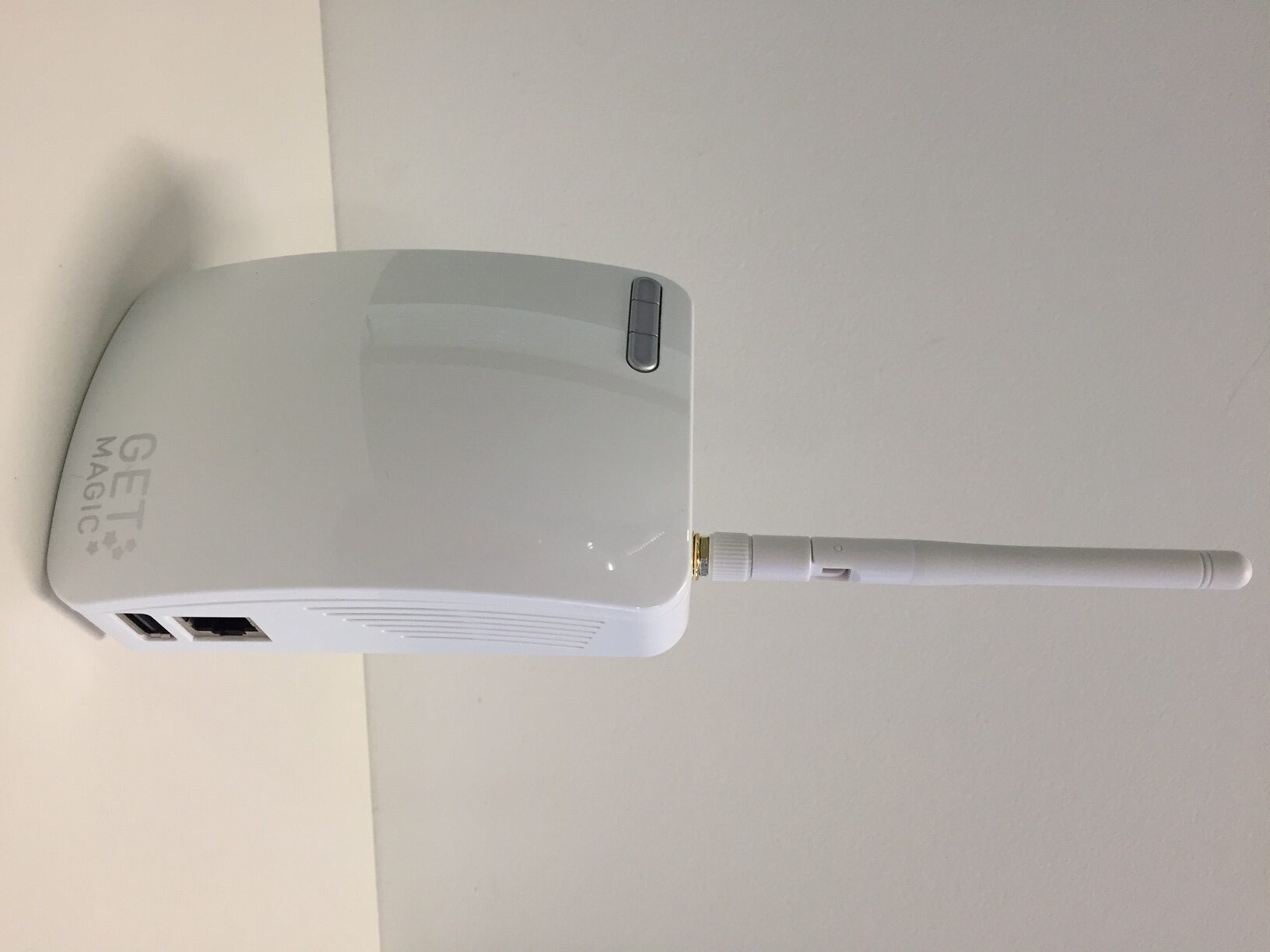

COMMAND_CLASS_ASSOCIATION

Association

0x85

1

COMMAND_CLASS_SWITCH_MULTILEVEL

Switch Multilevel

0x26

1

COMMAND_CLASS_ASSOCIATION_GROUP_INFORMATION

Association Group Information V1

0x59

0

COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION

Multi-Channel Association V1

0x8E

0

COMMAND_CLASS_MULTI_CHANNEL

Multi-Channel V1

0x60

0

COMMAND_CLASS_WAKE_UP

Wake Up

0x84

1

COMMAND_CLASS_THERMOSTAT_MODE

Thermostat Mode

0x40

1

COMMAND_CLASS_SENSOR_MULTILEVEL

Sensor Multilevel

0x31

1

COMMAND_CLASS_SWITCH_BINARY

Switch Binary

0x25

1

COMMAND_CLASS_BASIC

Basic

0x20

1

COMMAND_CLASS_CRC_16_ENCAP

CRC16 Encapsulation

0x56

1

COMMAND_CLASS_SECURITY

Security S0

0x98

1

COMMAND_CLASS_NOTIFICATION

Notification V1

0x71

0

COMMAND_CLASS_THERMOSTAT_SETPOINT

Thermostat Setpoint

0x43

1

COMMAND_CLASS_METER

Meter

0x32

1

COMMAND_CLASS_MANUFACTURER_SPECIFIC

Manufacturer Specific

0x72

1

COMMAND_CLASS_VERSION

Version

0x86

1

Manual_Primary_Lang

Product or Owner's Manual

1

1

0

Z-Wave Plus Lifeline

3

Learn Mode (adding another controller)

To enable the GetMagic Gateway to receive information from another controller, start learn mode. To initiate learn mode press and hold button 1 from 15 to 20 seconds. When controller enters learn mode it will lose all Z-Wave devices that were previously included. Controller replication is implemented at minimum level and it is enabled by placing the controller in the learn mode. To include GetMagic Gateway to another controller network, start inclusion on the inclusion controller and start Learn mode on GetMagic gateway by pressing and holding button 1 from 15 to 20 seconds. Controller will ignore any basic command class commands from devices.

24

Controller Exclusion

Removing device for exclusion is available when button is hold down from 10 to 20 seconds during which time the LED will blink at 1/10 second rate. Or optionally it can be done using mobile application from “Home setup”. To do it from mobile application press “Home setup” option on main menu and open gateway options menu by using long press on gateway icon (see 2.4). Press “Edit” option and proceed to last step where device management is done. On this screen select “Exclude device” option from settings menu in top right corner. The procedure for removing controller device is the same as for other devices.

23

Controller Inclusion

In order to add devices for inclusion in Z-Wave network, the user must hold down button 1 (the closest to the antenna) from 1 to 5 seconds to open Z-Wave network. During this period the button LED will blink with rate of 1 second. Alternatively, the user can use the “Open network” functionality present at the mobile app. When the network is open for inclusion, the LED will stop blinking and turn on. To add Z-Wave devices during this period, the user must also pair the devices, according to their specific instructions related with the inclusion in the Z-Wave networks. The procedure for adding controller device is the same as for other devices. The network is closed by holding down button from 5 to 10 seconds during which time the LED will blink with 1/4 second rate. When the network is closed, the LED will turn off.

5

Factory Reset

The Button 3 (the furthest away from the antenna) is used for reset, network reset and factory reset. The gateway reset is done by holding down button from 1 to 5 seconds. During this period LED will blink at 1 second rate. Gateway reset will restart the system without affecting the previously created configuration. Resetting network configuration is done by holding down the button from 5 to 15 seconds. During this period LED will blink with rate 1/4 second. The factory reset is operated by holding down button from 15 to 30 seconds. When factory reset operation is selected, the LED will blink and rate 1/10 second. If button remains pressed for more than 30 seconds, nothing happens.
