Product Recognition | |
|---|
Certification Number | ZC10-19076676 |
|---|

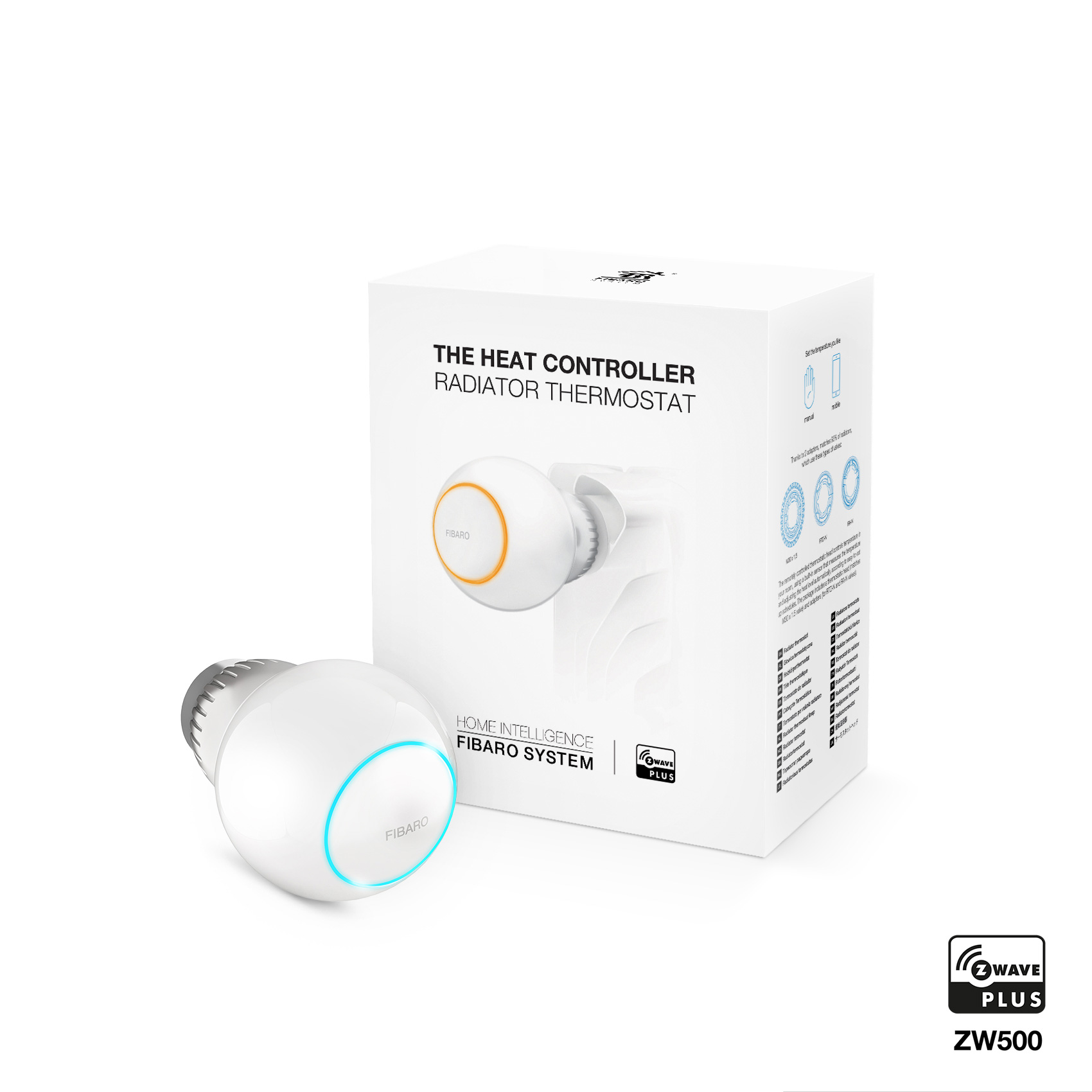

Name | The Heat Controller |
|---|
Short Description | FIBARO Heat Controller is a Z-Wave controlled thermostatic head mounted on radiator valves. Device works also with a dedicated temperature sensor. |
|---|
Long Description | FIBARO Heat Controller is a remotely controlled thermostatic head to control temperature in the room. It measures the temperature and automatically adjust the heat level. It can be mounted without tools on three types of thermostatic radiator valves. It is also possible to create schedules via app to easily manage temperature throughout the week.
Main features:
• to be installed on three types of valves: M30 x 1.5, Danfoss RTD-N and Danfoss RA-N,
• compatible with any Z-Wave or Z-Wave Plus Controller,
• supports Z-Wave network Security Modes: S0 with AES-128 encryption and S2 with PRNG-based encryption,
• built-in battery recharged through standard micro-USB port,
• easy installation - no tools required,
• can use dedicated temperature sensor,
• supports heating schedules,
• automatic calibration,
• anti-freeze function,
• decalc function,
• unconstrained rotation spherical knob to set desired temperature. |
|---|
Brand | FIBARO |
|---|
Product Identifier | FGT-001 |
|---|
OEM Version | HW: 1 FW: 4.06:01.16 |
|---|
Hardware Platform | ZM5101 |
|---|
Z-Wave Version | 6.71.01 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Thermostat - HVAC |
|---|
Role Type | ROLE_TYPE_SLAVE_SLEEPING_LISTENING |
|---|
Manufacturer ID | 0x010F |
|---|
Product Type ID | 0x1301 |
|---|
Product ID | 0x1001 |
|---|
User Icon | 0x1200 |
|---|
Installer Icon | 0x1200 |
|---|
Frequency Plans | EU: 869.85MHz, 868.40MHz |
|---|
Categories | Thermostats |
|---|
Countries / Regions | European Union |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_FIRMWARE_UPDATE_MD_V4 | Firmware Update Meta-Data V4 | 0x7A | 4 | COMMAND_CLASS_SENSOR_MULTILEVEL_V5 | Sensor Multilevel V5 | 0x31 | 5 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 | Multi-Channel Association V3 | 0x8E | 3 | COMMAND_CLASS_CLOCK | Clock | 0x81 | 1 | COMMAND_CLASS_BATTERY | Battery | 0x80 | 1 | COMMAND_CLASS_APPLICATION_STATUS | Application Status | 0x22 | 1 | COMMAND_CLASS_SCHEDULE | Schedule | 0x53 | 1 | COMMAND_CLASS_BASIC | Basic | 0x20 | 1 | COMMAND_CLASS_CONFIGURATION | Configuration | 0x70 | 1 | COMMAND_CLASS_CRC_16_ENCAP | CRC16 Encapsulation | 0x56 | 1 | COMMAND_CLASS_SECURITY | Security S0 | 0x98 | 1 | COMMAND_CLASS_THERMOSTAT_MODE_V3 | Thermostat Mode V3 | 0x40 | 3 | COMMAND_CLASS_THERMOSTAT_SETPOINT_V3 | Thermostat Setpoint V3 | 0x43 | 3 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_VERSION_V2 | Version V2 | 0x86 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_MULTI_CHANNEL_V4 | Multi-Channel V4 | 0x60 | 4 | COMMAND_CLASS_NOTIFICATION_V8 | Notification V8 | 0x71 | 8 | COMMAND_CLASS_SECURITY_2 | Security S2 | 0x9F | 1 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | COMMAND_CLASS_PROTECTION | Protection | 0x75 | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO_V2 | Association Group Information V2 | 0x59 | 2 |
|
|---|
S2 Classes | S2_UNAUTHENTICATED, S2_AUTHENTICATED |
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Features | Feature | Values |
|---|
Color | | Thermostat Modes | | Firmware Updatable | Value |
|---|
Updatable by Consumer by RF |
| Sensors | | Supported Notification Types | | Thermostat HVAC Systems Supported | | Thermostat Power Source | | Battery Quantity | | Battery Type | Value |
|---|
3.7V Li-Poly battery pack |
|
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
1 | 5 | 0 | Z-Wave Plus Lifeline association group that reports the device status and allows for assigning single device only (main controller by default) |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
1 | Override Schedule duration | This parameter determines duration of Override Schedule after turning the knob while normal schedule is active (set by Schedule CC). | 0 | 4 | 0 | 0 | 240 | From | To | Description |
|---|
10 | 10000 | (in minutes) |
| 3 | Additional functions status (READ-ONLY) | This parameter allows to check statuses of different additional functions. | 0 | 4 | 0 | 0 | 0 | From | To | Description |
|---|
1 | 1 | optional temperature sensor connected and operational | 2 | 2 | open window detected |
|
|
|---|
Texts | ID | Description | Value |
|---|
1 | Inclusion | To add the device to the Z-Wave network:
1. Make sure the device is within the direct range of your Z-Wave controller.
2. Set the main controller in (security/non-security) add mode.
3. Use the included key to quickly triple click the button on the thermostatic head.
4. The LED ring will start blinking white.
5. If you are adding in S2 authenticated mode, type in the device pin code (underlined part of the public key on the label).
6. Wait for the adding process to end.
7. Successful adding will be confirmed by the Z-Wave controller. | 2 | Exclusion | To remove the device from the Z-Wave network:
1. Make sure the device is within the direct range of your Z-Wave controller.
2. Set the main controller into remove mode.
3. Use the included key to quickly triple click the button on the thermostatic head.
4. The LED ring will start blinking white.
5. Wait for the removing process to end.
6. Successful removing will be confirmed by the Z-Wave controller. | 5 | Factory Reset | Please use this procedure only when the network primary controller is missing or otherwise inoperable.
Reset procedure allows to restore the device back to its factory settings, which means all information about the network and user configuration will be deleted.
To perform factory reset:
1. Use the included key to press and hold the button.
2. Release the button when you see yellow LED colour.
3. Click the button to confirm the selection.
4. After finishing resetting the device will be put in Standby Mode. Click the button to activate it again. | 4 | Device Wake-Up | FIBARO Heat Controller is a FLiRS device. The FLiRS device alternates between sleep mode and a partially awake mode in which it is listening beam signal. When device receives this beam, it immediately fully wakes up and then communicates with the controller or other Z-Wave device. |
|
|---|
Supported Notification Types | Notification Type | Event / State |
|---|
Heat Alarm | (Refer to parameters): State idle |
|
|---|
Supported Multilevel Sensors | Multilevel Sensor Type |
|---|
Air temperature |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Is Flirs | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
